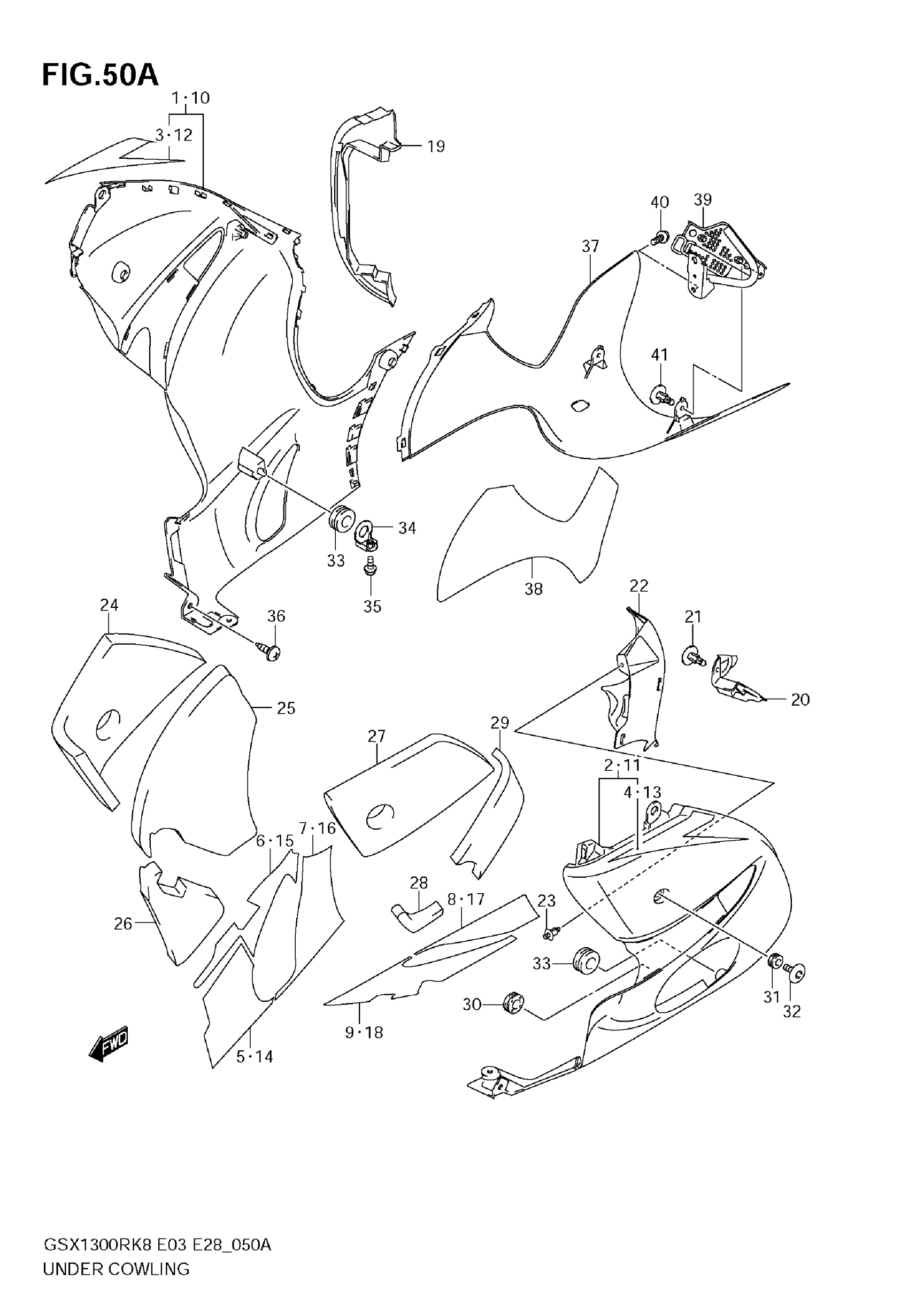

Suzuki GSX1300R (2009) UNDER COWLING (MODEL K9) Diagram

#

Description
Price

1

COWLING, UNDER RH (GRAY) | FOR CZY

94470-15H00-YHF

$391.18

1

COWLING, UNDER RH (BLACK) | FOR FGG

94470-15H00-019

$391.18

1

COWLING, UNDER RH (SILVER) | FOR GRF

94470-15H00-5JX

$383.95

2

COWLING, UNDER LH (GRAY) | FOR CZY

94480-15H00-YHF

$383.95

2

COWLING, UNDER LH (BLACK) | FOR FGG

94480-15H00-019

Unavailable

2

COWLING, UNDER LH (SILVER) | FOR GRF; Includes Item(s) 3 - 9

94480-15H00-5JX

Unavailable

3

TAPE, UNDER RH | FOR YHF

68185-15H00-DWG

$55.55

3

TAPE, UNDER RH | FOR 019

68185-15H00-GKY

$45.25

3

TAPE, UNDER RH | FOR 5JX

68185-15H00-FAA

Unavailable

4

TAPE, UNDER LH | FOR YHF

68195-15H00-DWG

$55.55

4

TAPE, UNDER LH | FOR 019

68195-15H00-GKY

Unavailable

4

TAPE, UNDER LH | FOR 5JX

68195-15H00-FAA

Unavailable

5

SHIELD, HEAT FRONT RH

94472-15H00

$25.95

6

SHIELD, HEAT CENTER RH

94472-15H20

$17.20

7

SHIELD, HEAT REAR RH

94472-15H10

$25.95

8

SHIELD, HEAT FRONT LH

94482-15H00

$27.73

9

SHIELD, HEAT REAR LH

94482-15H10

$18.42

10

COWLING, UNDER RH (SILVER) | FOR FGF

94470-15H10-YMD

$391.18

11

COWLING, UNDER LH (SILVER) | FOR FGF; Includes Item(s) 12 - 18

94480-15H10-YMD

$391.18

12

TAPE, UNDER RH

68185-15H10-GUL

Unavailable

13

TAPE, UNDER LH

68195-15H10-GUL

Unavailable

14

SHIELD, HEAT FRONT RH

94472-15H00

$25.95

15

SHIELD, HEAT CENTER RH

94472-15H20

$17.20

16

SHIELD, HEAT REAR RH

94472-15H10

$25.95

17

SHIELD, HEAT FRONT LH

94482-15H00

$27.73

18

SHIELD, HEAT REAR LH

94482-15H10

$18.42

19

PROTECTOR, RH

94475-15H00

$37.62

20

PROTECTOR, RH

94485-15H00

$20.65

21

CLIP, LH

94479-35F00

$5.14

22

COVER, UNDER LH

94489-15H00

$35.65

23

CLIP, LH (BLACK)

09409-06314-5PK

$2.80

24

CUSHION, UPPER RH

94478-15H00

$73.63

25

CUSHION, CENER RH

94478-15H10

$60.38

26

CUSHION, REAR RH

94478-15H20

$19.56

27

CUSHION, UPPER LH

94488-15H00

$56.87

28

CUSHION, CENTER LH

94488-15H10

$28.07

29

CUSHION, UNDER COWL LH NO.3 This part replaces 94488-15H20.

94488-15H21

$28.18

30

CUSHION, LH

94479-15H00

$4.22

31

CUSHION, UPPER

09320-09016

$1.97

32

SCREW

09139-06126

$3.65

33

CUSHION, PLATE

09320-08028

$2.80

34

PLATE, UNDER COWL

94560-15H00

$14.18

35

BOLT, PLATE

01550-0612B

$2.38

36

SCREW

03541-0516B

$1.77

37

COWLING, UNDER REAR (GRAY) | FOR CZY

94661-15H00-YHF

$413.02

37

COWLING, UNDER REAR (SILVER) | FOR FGF,GRF

94661-15H00-YMD

$409.05

37

COWLING, UNDER REAR (BLACK) | FOR FGG

94661-15H00-019

$413.02

38

SHIELD, HEAT

94667-15H00

$31.98

39

BRACKET, REAR COWLING This part replaces 94540-15H00.

94540-15H01

$93.08

40

BOLT

01550-0816B

$2.75

41

CLIP

94479-35F00

$5.14
