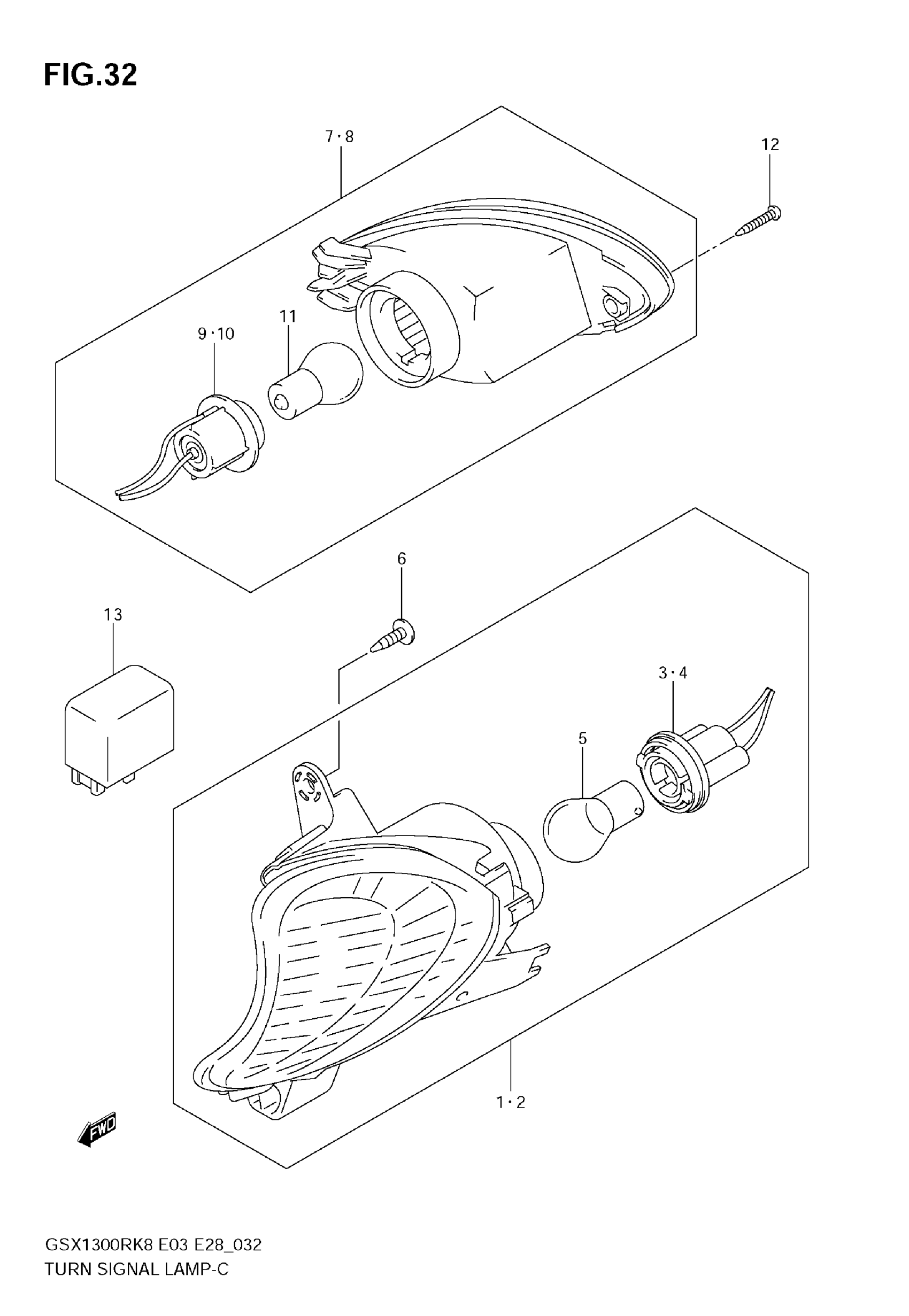

Suzuki GSX1300R (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN, RH This part replaces 35601-15H00.

35601-15H01

$133.53

2

LAMP ASSY, FRONT TURN, LH | Includes Item(s) 3 - 5 This part replaces 35602-15H00.

35602-15H01

$136.10

3

SOCKET & CORD, R

35618-15H00

$32.85

4

SOCKET & CORD, L

35638-15H00

$32.85

5

BULB (12V21W)

09471-12186

$16.18

6

SCREW, FR TURNSIGNAL

03541-0516B

$1.77

7

LAMP ASSY, REAR TURN, RH This part replaces 35603-15H00.

35603-15H01

$109.83

8

LAMP ASSY, REAR TURN, LH | Includes Item(s) 9 - 11 This part replaces 35604-15H00.

35604-15H01

$109.83

9

SOCKET & CORD, R

35658-15H00

$32.85

10

SOCKET & CORD, L

35678-15H00

$32.85

11

BULB (12V21W)

09471-12186

$16.18

12

SCREW, RR TURNSIGNAL | 4X20

09132-04032

$1.98

13

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
