2009 Suzuki GSX1300R Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

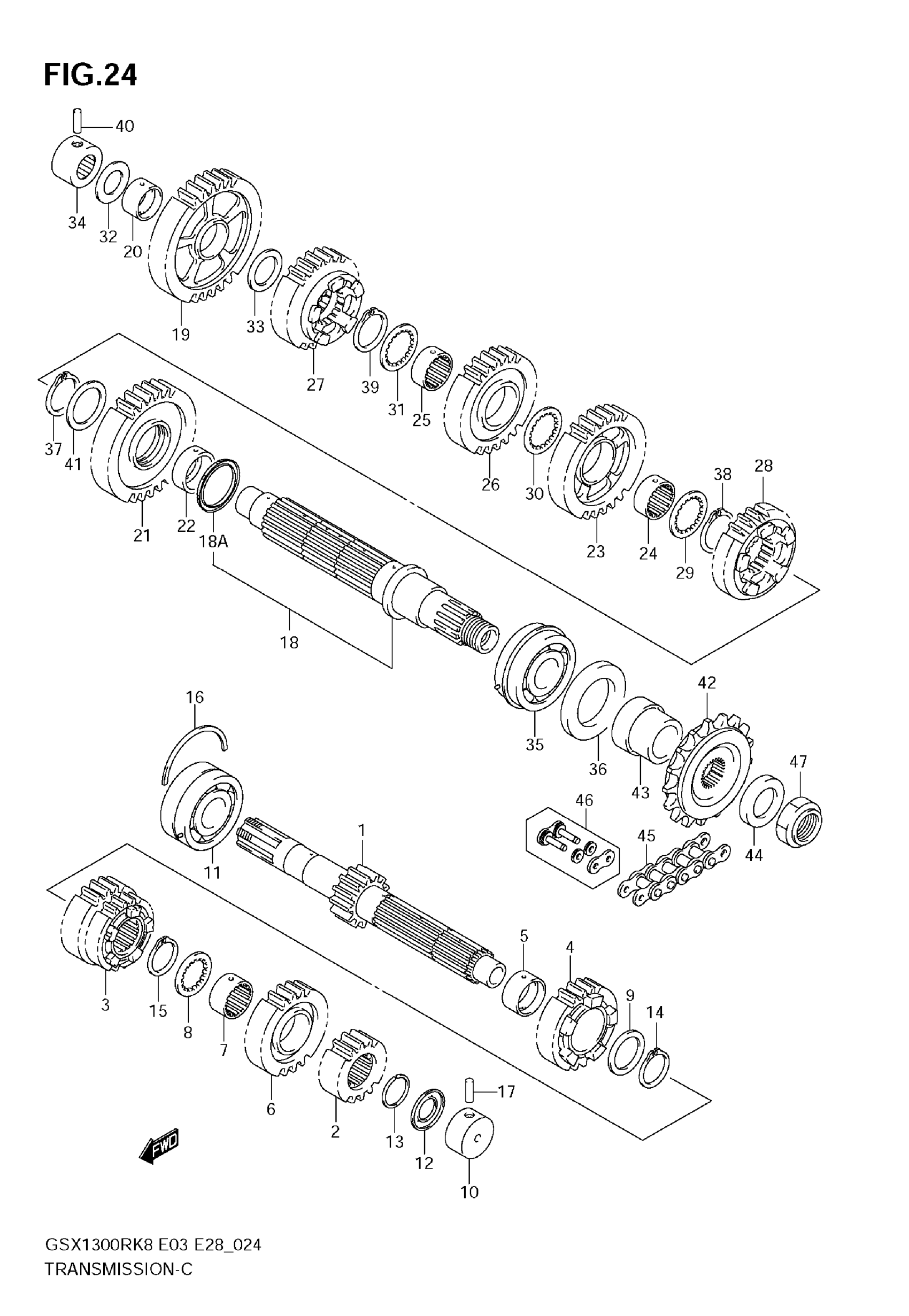

2009 Suzuki GSX1300R Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CNTR (NT:13)

24120-24F00

1
Out of stock

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE | NT:19/21

24231-15H00

1
Out of stock

4

GEAR,5TH DRIVE (NT:22) This part replaces 24251-15H00.

24251-15H01

1
Out of stock

5

BUSH, 5TH DRIVE GEAR

24252-24F10

1
Out of stock

6

GEAR, 6TH DRIVE (NT:23)

24261-15H00

1
Out of stock

7

BUSH, 6TH DRIVE GEAR

24262-24F10

1
Out of stock

8

WASHER, 6TH DRIVE GEAR

09167-27003

1
Out of stock

9

WASHER, 5TH DRIVE GEAR | 27X36X2.5

09181-27014

1
Out of stock

10

BEARING, CNTR SHAFT, L | 20X34X17.5

09263-20085

1
Out of stock

11

BEARING, CNTR SHAFT, R | 25X62X25.4

09267-25012

1
Out of stock

12

SEAL, OIL | 20X31.2X2.7

09285-20006

1
Out of stock

13

CIRCLIP, 2ND DRIVE GEAR

09380-27004

1
Out of stock

14

CIRCLIP, 5TH DRIVE GEAR

09380-27006

1
Out of stock

15

CIRCLIP, 6TH DRIVE GEAR

09380-27006

1
Out of stock

16

C RING, CNTR SHAFT BRG, R

09390-62012

1
Out of stock

17

PIN, CNTR SHAFT BRG, L

04221-07209

1
Out of stock

18

SHAFT, DRIVE | Includes Item(s) 18A

24130-15H00

1
Out of stock

18A

RING, DRIVE SHAFT FRICTION

24136-48G01

1
Out of stock

19

GEAR, 1ST DRIVEN (NT:34)

24311-15H00

1
Out of stock

20

BUSH, 1ST DRIVEN GEAR

24312-24F10

1
Out of stock

21

GEAR,2ND DRIVEN (NT:31)

24321-15H00

1
Out of stock

22

BUSH, 2ND DRIVEN GEAR

24322-48G00

1
Out of stock

23

GEAR,3RD DRIVEN (NT:29)

24331-15H00

1
Out of stock

24

BUSH, 3RD DRIVEN GEAR

24332-24F10

1
Out of stock

25

BUSH, 4TH DRIVEN GEAR

24332-24F10

1
Out of stock

26

GEAR,4TH DRIVEN (NT:27)

24341-15H00

1
Out of stock

27

GEAR, 5TH DRIVEN (NT:25) This part replaces 24351-15H00.

24351-15H01

1
Out of stock

28

GEAR,6TH DRIVEN (NT:24)

24361-15H00

1
Out of stock

29

WASHER, 3RD DRIVEN GEAR

09167-30008

1
Out of stock

30

WASHER, 3RD & 4TH DRIVE

09167-30008

1
Out of stock

31

WASHER, 4TH DRIVEN GEAR

09167-30008

1
Out of stock

32

WASHER, 1ST DRIVEN GEAR | 20X34X1.0

09181-20251

1
Out of stock

33

WASHER, 1ST DRIVEN GEAR | 24X34X1.0

09181-24005

1
Out of stock

34

BEARING, DRIVE SHAFT, R | 20X34X20

09263-20040

1
Out of stock

35

BEARING, DRIVE SHAFT, L | 30X62X23.8

09267-30011

1
Out of stock

36

SEAL, DRIVE AHAFT OIL | 42X62X7

09283-42018

1
Out of stock

37

CIRCLIP, 2ND DRIVEN GEAR

09380-30009

1
Out of stock

38

CIRCLIP, 3RD DRIVEN GEAR

09380-30009

1
Out of stock

39

CIRCLIP, 4TH DRIVEN GEAR

09380-30009

1
Out of stock

40

PIN, DRIVE SHAFT BRG, R

04221-07209

1
Out of stock

41

WASHER, 2ND DRIVEN GEAR

08211-30405

1
Out of stock

42

SPROCKET, ENGINE (NT:18)

27510-15H00

1
Out of stock

43

SPACER,ENGINE SPROCKET NO.1

27531-15H00

1
Out of stock

44

SPACER,ENGINE SPROCKET NO.2 ( | 27.2X42X6.5

27532-15H00

1
Out of stock

45

CHAIN ASSY, DRIVE | RK GB50GSVZ4 L:118!114

27600-24F60-118

1
Out of stock

46

JOINT SET, DRIVEN | OPT

27620-24F60

1
Out of stock

47

NUT, ENGINE SPROCKET

09159-22008

1
Out of stock
