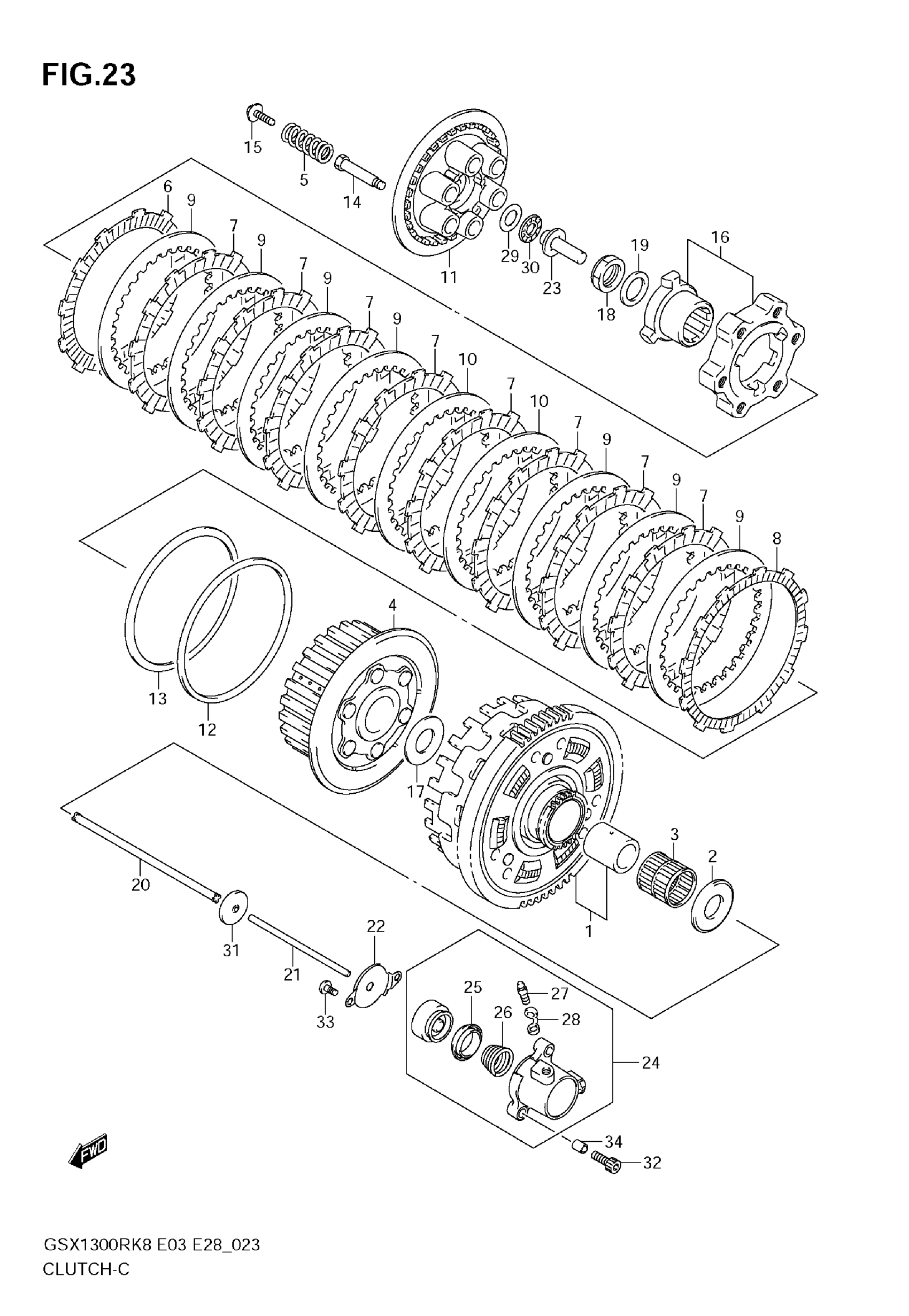

Find the part on the Clutch diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX1300R Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$598.90

In stock

2

1

$15.75

In stock

3

1

$34.44

In stock

4

HUB, CLUTCH SLEEVE

21410-24F00

1

$184.27

In stock

5

SPRING, CLUTCH

21413-24F30

6

$6.65

In stock

6

1

$23.96

In stock

7

8

$31.90

In stock

8

1

$24.07

In stock

9

7

$11.55

In stock

10

2

$11.55

In stock

11

DISC, CLUTCH PRESSURE

21462-24F00

1

$52.28

In stock

12

.SEAT,WAVE WASHER

21471-24F00

1

$14.22

In stock

13

1

$21.28

In stock

15

BOLT, CLUTCH SPRING

21482-24F30

6

$3.51

In stock

16

CAM SET, CLUTCH

21610-02F12

1

$266.95

In stock

17

1

$11.40

In stock

18

1

$12.79

In stock

19

1

$3.66

In stock

20

ROD, CLUTCH (L:195.5)

23110-24F00

1

$22.79

In stock

21

1

$15.82

In stock

22

1

$6.77

In stock

23

PIECE, CLUTCH PUSH

23121-31E00

1

$24.53

In stock

25

CUP

23163-10F00

1

$7.41

In stock

26

SPRING

23164-10F00

1

$5.80

In stock

27

BLEEDER

59121-01A00

1
Out of stock

28

CAP, BLEEDER

59122-01A00

1
Out of stock

29

1

$3.77

In stock

30

1

$8.03

In stock

31

1

$7.73

In stock

32

BOLT (6X25)

07130-0625A

2

$2.85

In stock

33

SCREW, CYL COVER

02112-0610A

2

$1.84

In stock

34

PIN, CLUTCH

04211-09129

2
Out of stock
