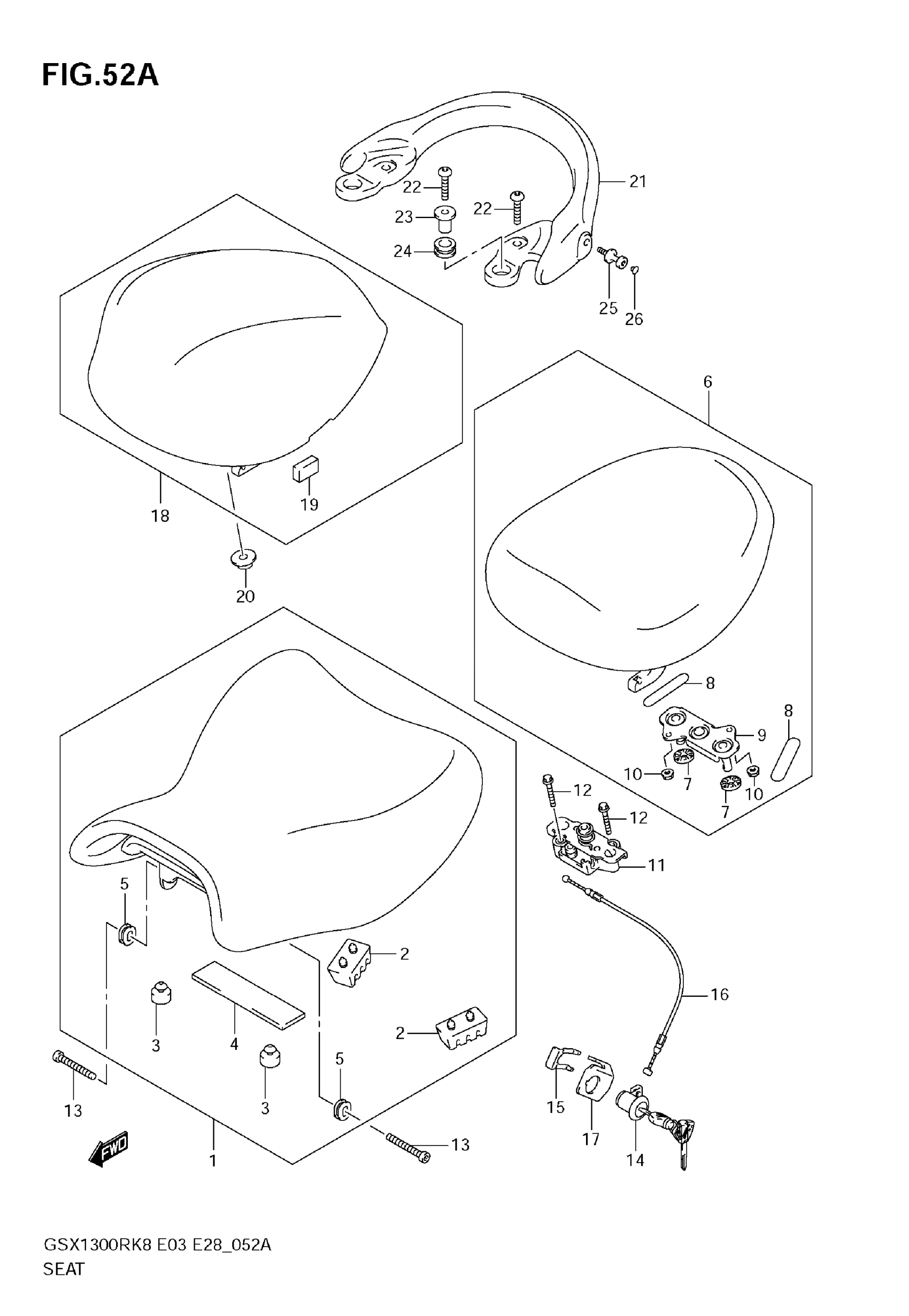

Suzuki GSX1300R (2009) SEAT (MODEL K9) Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 5 This part replaces 45100-15H00-EJY.

45100-15H03-EJY

$315.58

2

CUSHION

45149-45330

$3.56

3

CUSHION

09321-10011

$2.80

4

.CUSHION This part replaces 45117-15H00.

45117-15H01

$10.55

5

.CUSHION

45118-15H00

$8.77

6

SEAT ASSY,PILLI | Includes Item(s) 7 - 10 This part replaces 45300-15H00-U6H.

45300-15H12-U6H

$237.35

7

CUSHION

45213-42F00

$6.32

8

CUSHION This part replaces 45149-15H00.

45149-15H10

$5.95

9

STRIKER, SEAT LOCK

45290-15H00

$58.95

10

NUT

08319-3106A

$2.01

11

BRACKET, SEAT SUPPORT

45220-15H00

$161.37

12

BOLT

01547-0630A

$2.31

13

BOLT,SEAT FR

45191-15H00

$6.94

14

LOCK ASSY, SEAT

95700-14810

$98.21

15

PLATE, SEAT LOCK

45289-11F00

$5.67

16

CABLE, SEAT LOCK This part replaces 45280-18G00.

45280-18G01

$19.28

17

GUIDE, CABLE

45288-14F20

$10.25

18

BOX, SEAT TAIL (BLACK) | FOR CZY This part replaces 45550-15H00-YAY.

45550-15H01-YAY

$373.35

18

BOX COMP,SEAT T | FOR FGF This part replaces 45550-15H00-YBD.

45550-15H01-YBD

Unavailable

18

BOX COMP,SEAT T | FOR GRF This part replaces 45550-15H00-YHG.

45550-15H01-YHG

Unavailable

18

BOX, SEAT TAIL (BLACK) | FOR FGG; Includes Item(s) 19

45550-15H00-019

Unavailable

19

CUSHION

45553-15H00

$10.98

20

.WASHER,FRAME COVER

47190-24F01

$11.20

21

HANDLE,PILLION | FOR CZY This part replaces 46211-15H00-YAY.

46211-15H01-YAY

$467.95

21

HANDLE,PILLION | FOR FGF This part replaces 46211-15H00-YBD.

46211-15H01-YBD

$382.70

21

HANDLE, PILLION RIDER (GRAY) | FOR GRF

46211-15H00-YHG

Unavailable

21

HANDLE, PILLION RIDER (BLACK) | FOR FGG

46211-15H00-019

Unavailable

22

BOLT

09106-08137

$5.42

23

WASHER, PILLION RIDER HDL FR

47190-24F11

$13.27

24

CUSHION, PILLION RIDER HDL

46217-24F00

$5.35

25

HOOK, HANDLE

46212-24F11

$30.47

26

CAP

09250-05009

$2.10
