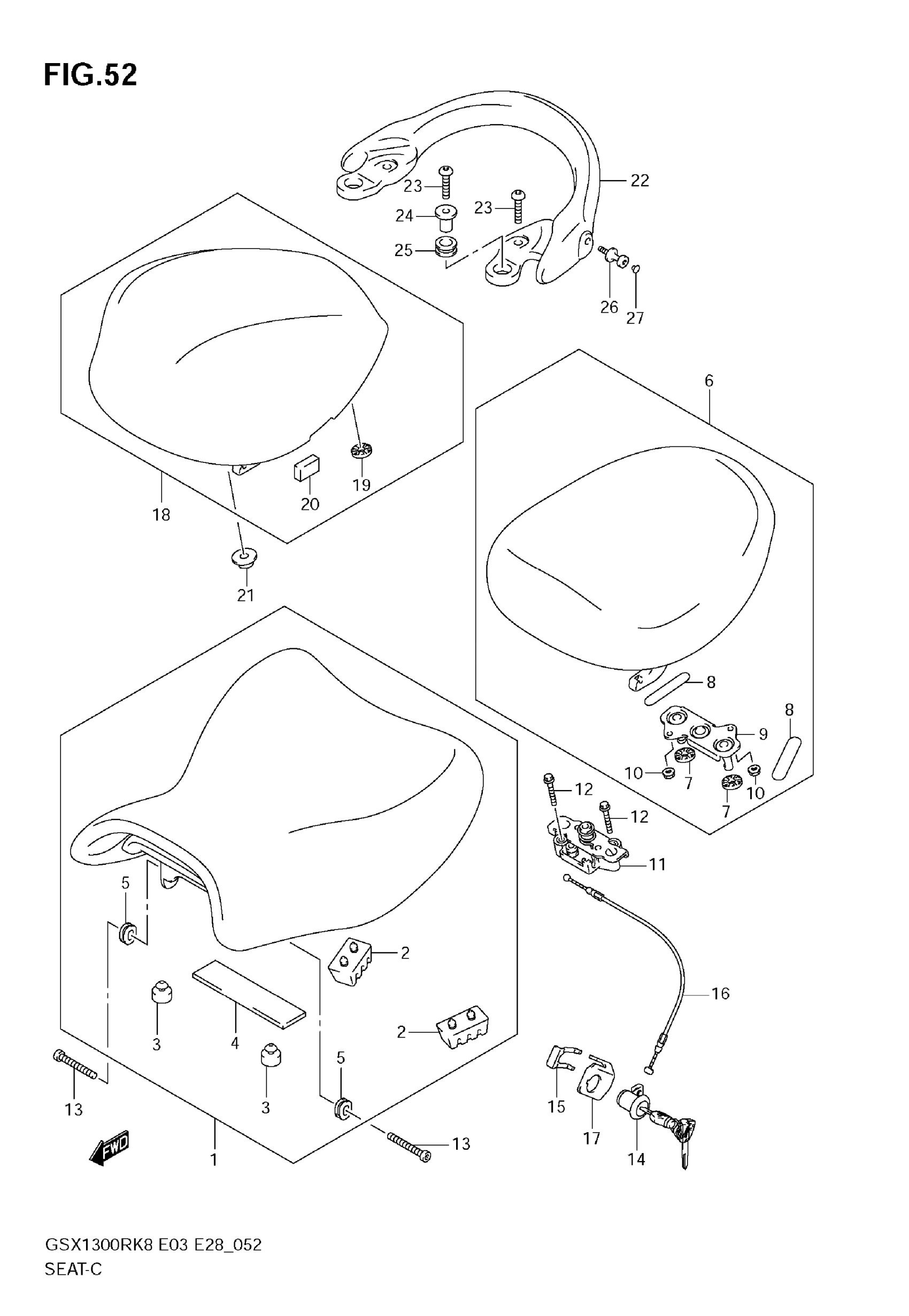

Suzuki GSX1300R (2009) SEAT (MODEL K8) Diagram

SEAT ASSY | Includes Item(s) 2 - 5 This part replaces 45100-15H00-EJY.

45100-15H03-EJY

$315.58

CUSHION

45149-45330

$3.56

CUSHION

09321-10011

$2.80

.CUSHION This part replaces 45117-15H00.

45117-15H01

$10.55

.CUSHION

45118-15H00

$8.77

SEAT ASSY,PILLI | Includes Item(s) 7 - 10 This part replaces 45300-15H00-U6H.

45300-15H12-U6H

$237.35

CUSHION

45213-42F00

$6.32

CUSHION This part replaces 45149-15H00.

45149-15H10

$5.95

STRIKER, SEAT LOCK

45290-15H00

$58.95

NUT

08319-3106A

$2.01

BRACKET, SEAT SUPPORT

45220-15H00

$161.37

BOLT

01547-0630A

$2.31

BOLT,SEAT FR

45191-15H00

$6.94

LOCK ASSY, SEAT

95700-14810

$98.21

PLATE, SEAT LOCK

45289-11F00

$5.67

CABLE, SEAT LOCK This part replaces 45280-18G00.

45280-18G01

$19.28

GUIDE, CABLE

45288-14F20

$10.25

BOX, SEAT TAIL (BLACK) | FOR EAJ This part replaces 45550-15H00-YAY.

45550-15H01-YAY

$373.35

BOX,SEAT TAIL(G | FOR CZY This part replaces 45550-15H00-YHF.

45550-15H01-YHF

$376.72

BOX, SEAT TAIL (BLUE) | FOR EAK This part replaces 45550-15H00-YKZ.

45550-15H01-YKZ

$380.38

BOX, SEAT TAIL (WHITE) | FOR EAH; Includes Item(s) 19 - 20 This part replaces 45550-15H00-YPA.

45550-15H01-YPA

Unavailable

CUSHION

45213-42F00

$6.32

CUSHION

45553-15H00

$10.98

.WASHER,FRAME COVER

47190-24F01

$11.20

HANDLE,PILLION | FOR EAJ This part replaces 46211-15H00-YAY.

46211-15H01-YAY

$467.95

HANDLE, PILLION RIDER (GRAY) | FOR CZY

46211-15H00-YHF

Unavailable

HANDLE,PILLION | FOR EAK This part replaces 46211-15H00-YKZ.

46211-15H01-YKZ

Unavailable

HANDLE,PILLION | FOR EAH This part replaces 46211-15H00-YPA.

46211-15H01-YPA

Unavailable

BOLT

09106-08137

$5.42

WASHER, PILLION RIDER HDL FR

47190-24F11

$13.27

CUSHION, PILLION RIDER HDL

46217-24F00

$5.35

HOOK, HANDLE

46212-24F11

$30.47

CAP

09250-05009

$2.10
