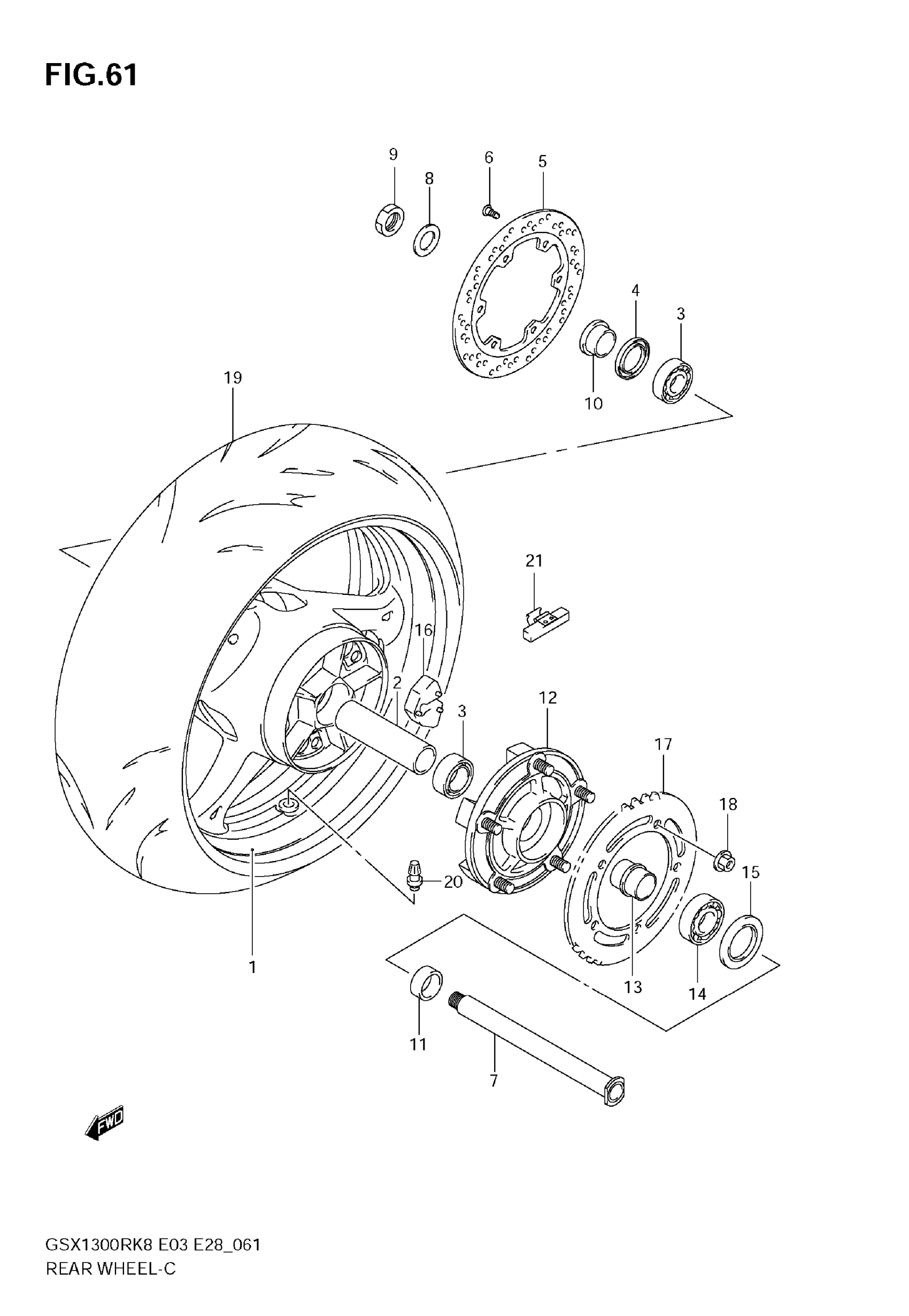

Suzuki GSX1300R (2009) REAR WHEEL Diagram

#

Description
Price

1

WHEEL,RR(17M/CX | FOR CZY,EAH,EAJ,FGG This part replaces 64111-15H00-019.

64111-15H01-019

$1,101.53

1

WHEEL, RR, 17M/CXMT6.00 (GOLD) | FOR EAK

64111-15H00-0FR

Unavailable

1

WHEEL, RR, 17M/CXMT6.00 (SILVER) | FOR FGF,GRF

64111-15H00-Y6G

Unavailable

2

SPACER, HUB BEARING

64731-40F10

$59.62

3

BEARING This part replaces 09262-28043.

09262-28063

$21.63

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.85

5

DISC, REAR BRAKE

69211-15H00

$283.60

6

BOLT (8X33)

09106-08160

$3.57

7

AXLE,RR

64711-33E20

$155.98

8

WASHER, RR AXLE

09160-25070

$4.77

9

NUT

09159-25003

$31.85

10

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$13.49

11

SPACER, AXLE LH

64751-49G00

$32.43

12

DRUM,RR SPROCKET

64610-35F30

$327.08

13

RETAINER, SPROCKET DRUM

64733-35F00

$26.61

14

BEARING (32X65X17) This part replaces 09262-32007.

09262-32024

$39.40

15

SEAL (39X65X7)

09285-39001

$10.62

16

ABSORBER, HUB SHOCK

64651-35F20

$21.27

17

SPROCKET,RR (NT:43) This part replaces 64511-40F50.

64511-15H00

$135.45

18

NUT

08319-3110A

$2.73

19

TIRE COMP,REAR This part replaces 65110-24F50.

65110-24F71

$539.75

20

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

21

BALANCER, WHEEL, NO.1

55411-39G00

Unavailable

21

BALANCER, WHEEL, NO.2

55412-39G00

Unavailable

21

BALANCER, WHEEL, NO.3

55413-39G00

Unavailable
