Description

Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 10

69100-15H00-999

$633.80

2

PISTON SET

69100-44890

$74.95

3

SEAL SET, PISTON

69102-05880

$18.63

4

BOOT, AXLE

59112-44B00

$8.52

5

SPRING, PAD

69115-44G00

$19.85

6

PIN

59141-40F00

$36.85

7

PIN, BOLT

69105-44G00

$13.86

8

RETAINER

69116-44G00

$10.46

9

BLEEDER

59121-18410

$8.35

10

CAP

55156-66310

$4.94

11

BRACKET

69150-15H00

$186.88

12

BOLT

69182-44G00

$11.90

13

SLEEVE

69185-44G00

$24.37

14

BOOT, SLEEVE

69186-44G00

$13.01

15

PAD SET

69100-15820

$65.75

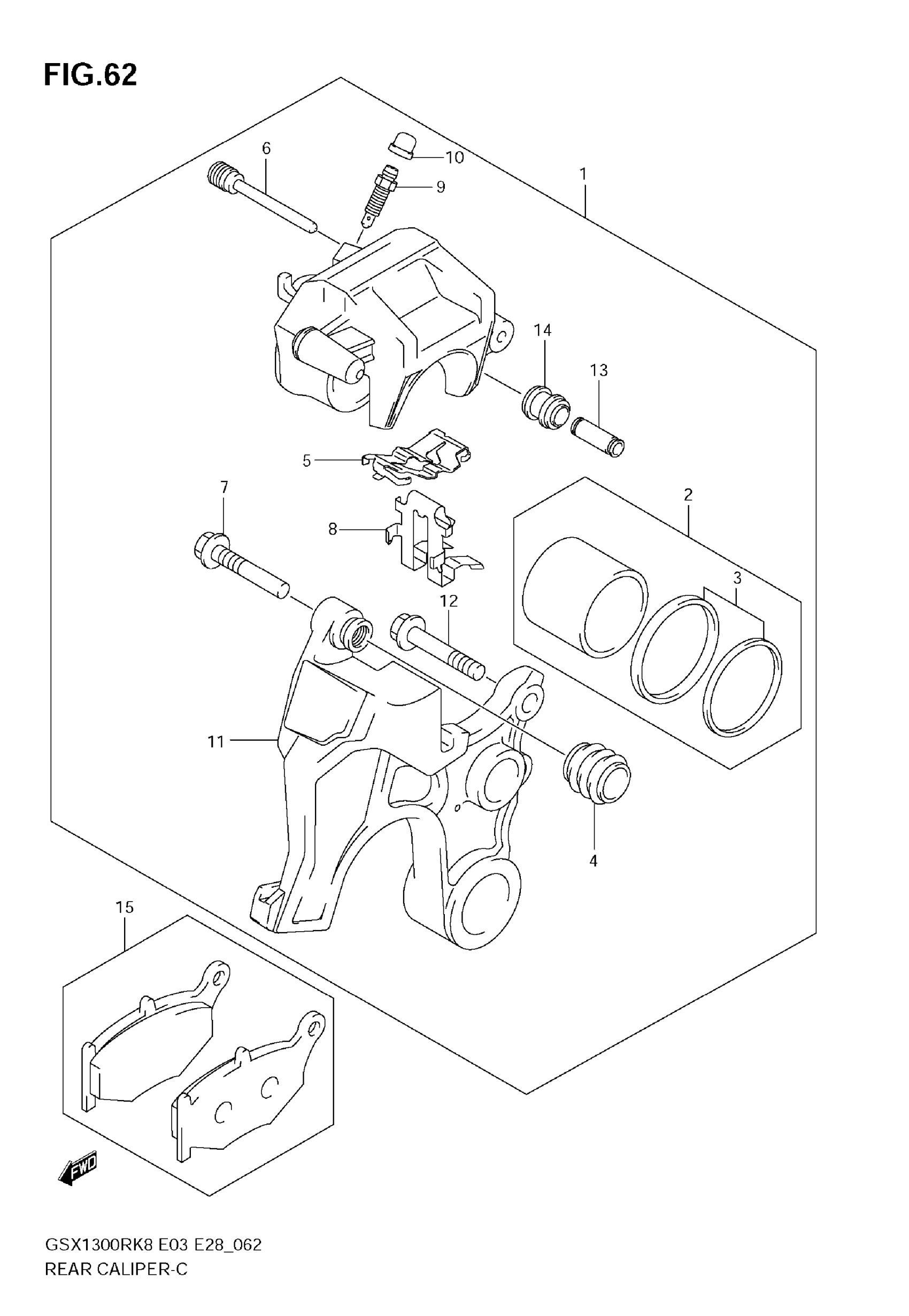

Suzuki GSX1300R (2009) REAR CALIPER Diagram
