2009 Suzuki GSX1300R Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

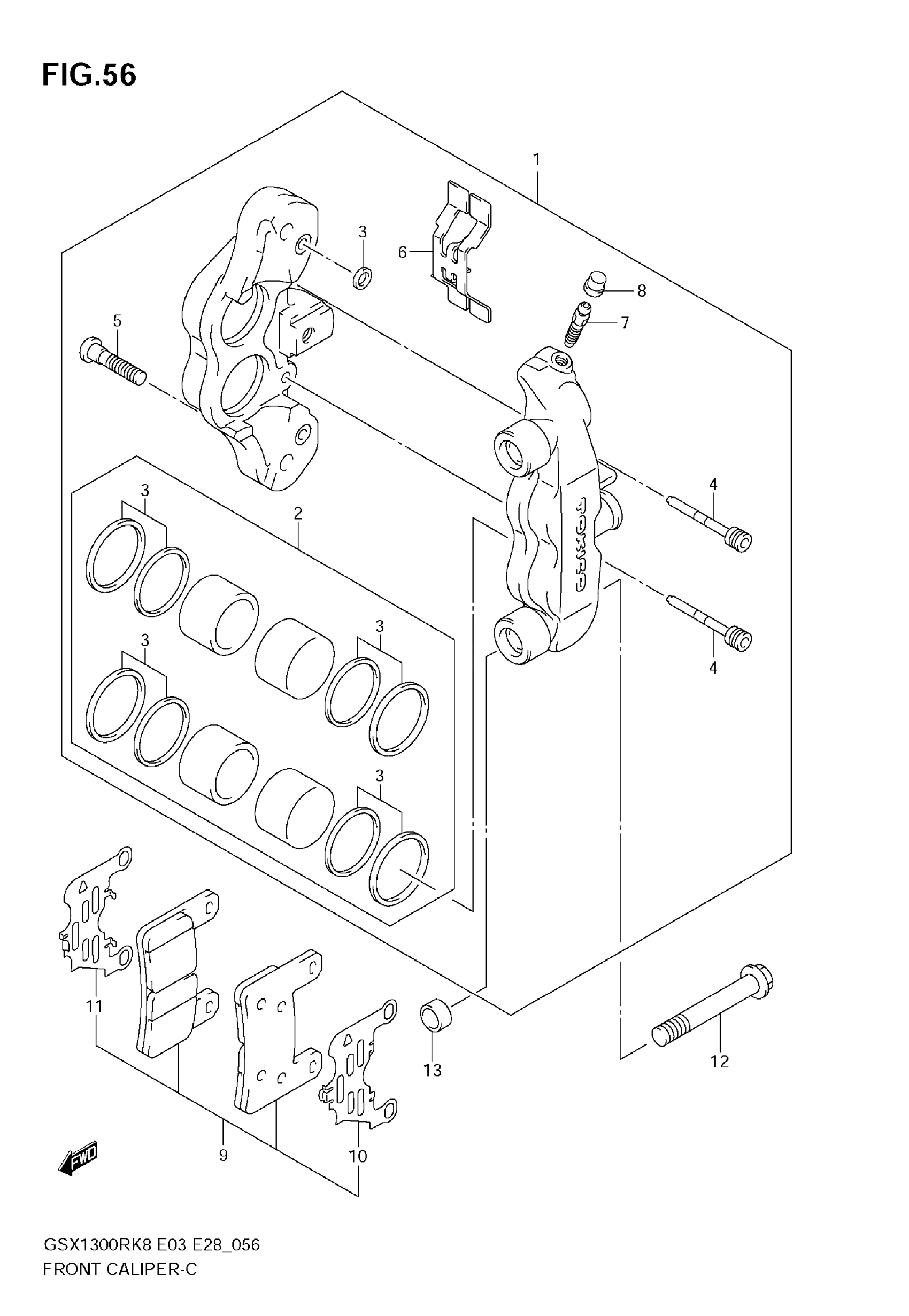

2009 Suzuki GSX1300R Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-41G30-999

1
Out of stock

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-41G30-999

1
Out of stock

2

PISTON SET

59100-41820

2
Out of stock

3

SEAL SET, PISTON

59100-41810

2
Out of stock

4

2

$26.91

In stock

5

BOLT

59145-18G00

6

$11.20

In stock

6

SPRING, PAD

59151-29G00

2

$12.80

In stock

7

BLEEDER

59121-18410

2
Out of stock

8

CAP

55156-66310

2
Out of stock

9

PAD & SHIM SET | Includes Item(s) 10 - 11

59100-29840

2
Out of stock

10

SHIM

59171-41G00

2

$17.40

In stock

11

SHIM

59172-41G00

2

$17.40

In stock

12

BOLT (10X30)

09103-10392

4
Out of stock

13

PIN, CALIPER

59151-41G00

4

$11.94

In stock
