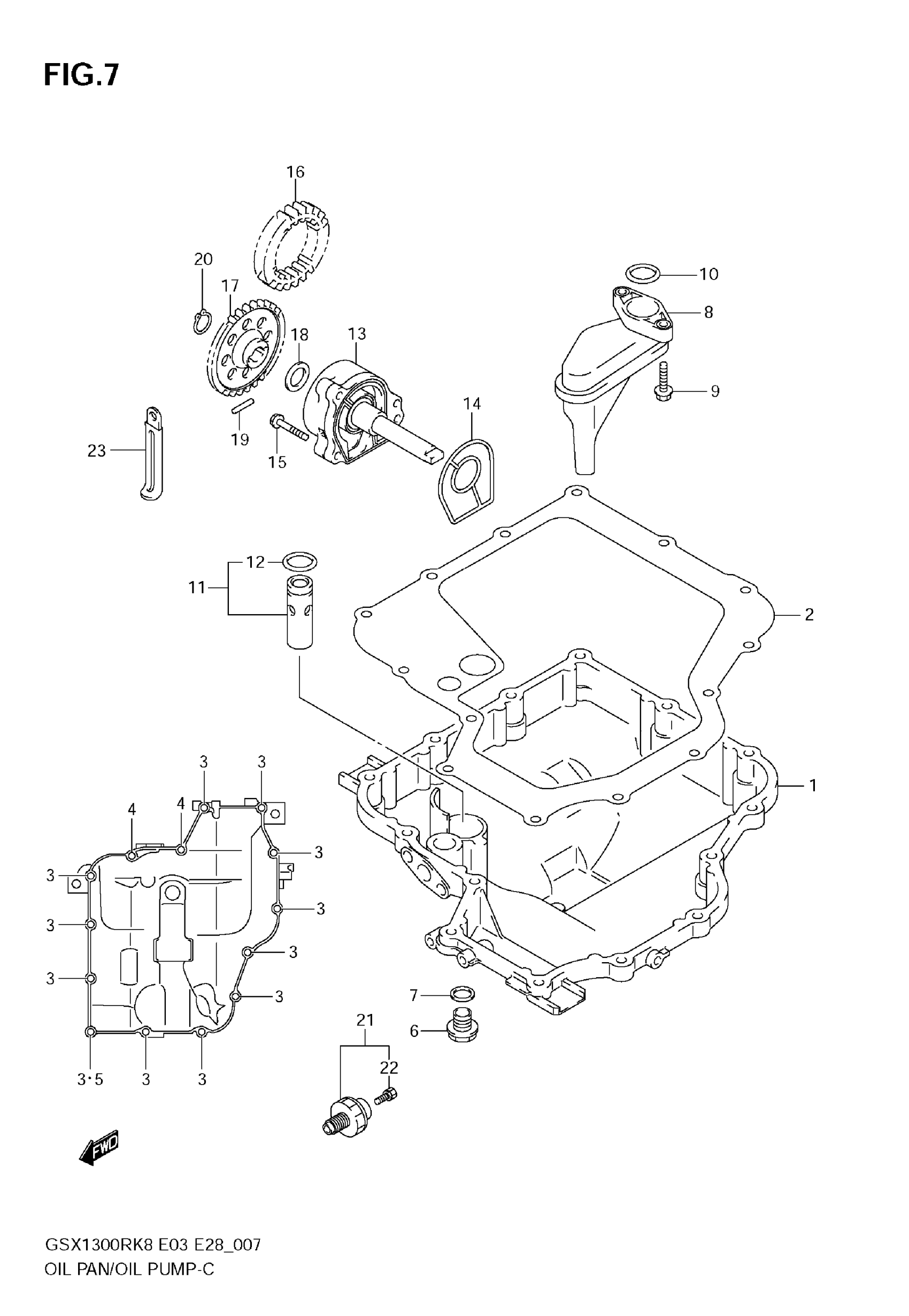

Suzuki GSX1300R (2009) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-24F10

$239.45

2

GASKET, OIL PAN This part replaces 11489-24F01.

11489-24F10

$17.54

3

BOLT

01547-0630A

$2.32

4

BOLT

01547-0640A

$2.32

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

PLUG, OIL DRAIN

09247-14036

$6.17

7

GASKET

09168-14002

$2.26

8

STRAINER,ENG OIL This part replaces 16520-24F00.

16520-24F01

$30.32

9

BOLT

01550-0620A

$1.97

10

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

11

VALVE ASSY, OIL RELIEF | Includes Item(s) 12

16440-24F00

$50.04

12

O RING

09280-13004

$2.17

13

PUMP ASSY,ENGINE OIL

16400-24F01

$189.30

14

O RING,OIL PUMP

16491-24F00

$6.93

15

BOLT

01547-0630A

$2.32

16

GEAR,OIL PUMP DRIVE (NT:34)

16321-33E10

$68.12

17

GEAR,OIL PUMP DRIVEN (NT:37)

16331-33E00

$74.65

18

WASHER

09181-12158

$2.26

19

PIN

09261-05006

$1.49

20

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

21

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 22 This part replaces 37820-33D10.

37820-33D11

$25.13

22

BOLT

37822-33D00

$4.35

23

CLAMP

09404-06429

$1.83
