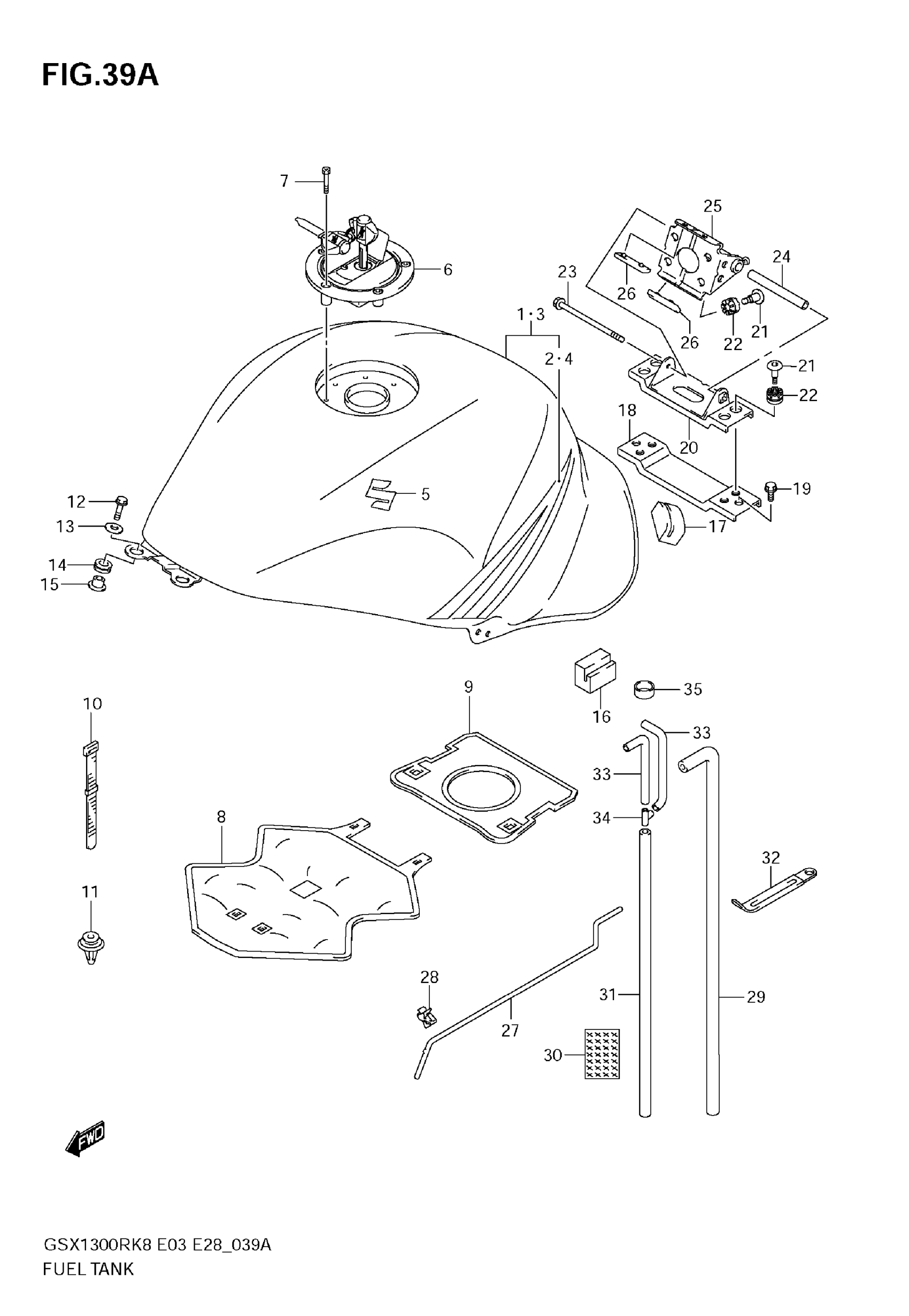

Suzuki GSX1300R (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY,FUEL | E3,E28 FOR CZY This part replaces 44100-15H00-YAY.

44100-15H02-YAY

Unavailable

1

TANK ASSY, FUEL (GOLD) | E3,E28 FOR FGG

44100-15H00-YMG

Unavailable

1

TANK ASSY,FUEL( | E3,E28 FOR GRF This part replaces 44100-15H00-YHG.

44100-15H02-YHG

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 FOR CZY

44100-15H20-YAY

Unavailable

1

TANK ASSY, FUEL (GOLD) | E33 FOR FGG

44100-15H20-YMG

Unavailable

1

TANK ASSY, FUEL (GRAY) | E33 FOR GRF; Includes Item(s) 2 - 2

44100-15H20-YHG

Unavailable

2

TAPE SET | FOR YAY

68110-15H00-GKU

$72.57

2

TAPE SET | FOR YMG

68110-15H00-GKW

Unavailable

2

TAPE SET | FOR YHG

68110-15H00-GKV

Unavailable

3

TANK ASSY,FUEL( | E3,E28 FOR FGF This part replaces 44100-15H30-YBD.

44100-15H32-YBD

$1,545.23

3

TANK ASSY, FUEL (WHITE) | E33 FOR FGF; Includes Item(s) 4

44100-15H50-YBD

Unavailable

4

TAPE SET

68110-15H10-GUH

Unavailable

5

EMBLEM, "S"

68111-18G20

$30.90

6

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$112.54

6

CAP SET,FUEL TA | E33 This part replaces 44200-16870.

44200-16872

$172.96

7

BOLT

09106-05017

$2.80

8

SHIELD, HEAT FRONT

44191-15H00

$198.55

9

SHIELD, HEAT REAR

44191-15H10

$83.62

10

CLAMP

09407-18402

$2.29

11

CLIP This part replaces 09409-06322.

09409-06322-5PK

$2.92

12

BOLT, FRONT

09139-06029

$4.99

13

WASHER

09160-06054

$1.66

14

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$3.94

15

SPACER

44512-16G00

$7.11

16

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.62

17

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.78

18

BRACKET, REAR LOWER

44555-15H00

Unavailable

19

BOLT

01550-0812B

$2.80

20

BRACKET, FUEL TANK REAR NO.2 This part replaces 44550-15H00.

44550-15H01

Unavailable

21

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$3.79

22

CUSHION

09320-08071

$3.16

23

BOLT, JOINT

07120-0695B

$4.09

24

SPACER, JOINT

44561-18G00

$16.22

25

BRACKET, FUEL TANK REAR NO.1 This part replaces 44530-15H00.

44530-15H01

Unavailable

26

CUSHION, BRACKET

45149-44G00

Unavailable

27

STAY

44574-35F00

$14.51

28

CLAMP, STAY

09403-05310

$3.37

29

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$25.20

30

SHIELD, DRAIN HOSE HEAT | E3,E28

44427-15H00

Unavailable

30

SHIELD, DRAIN HOSE HEAT | E33

44427-15H10

Unavailable

31

HOSE, BREATHER | E3,E28 This part replaces 44424-15H00.

44424-15H01

$22.88

32

CLAMP This part replaces 09404-06431.

09404-06039

$1.79

33

HOSE,FUEL TANK BRTHR NO.3 | E3,E28 This part replaces 44424-15H10.

44424-15H11

$15.48

34

3 WAY | E3,E28

09367-06007

$3.29

35

HOSE, JOINT (L:600!10) | E3,E28

09352-12163-600

Unavailable
