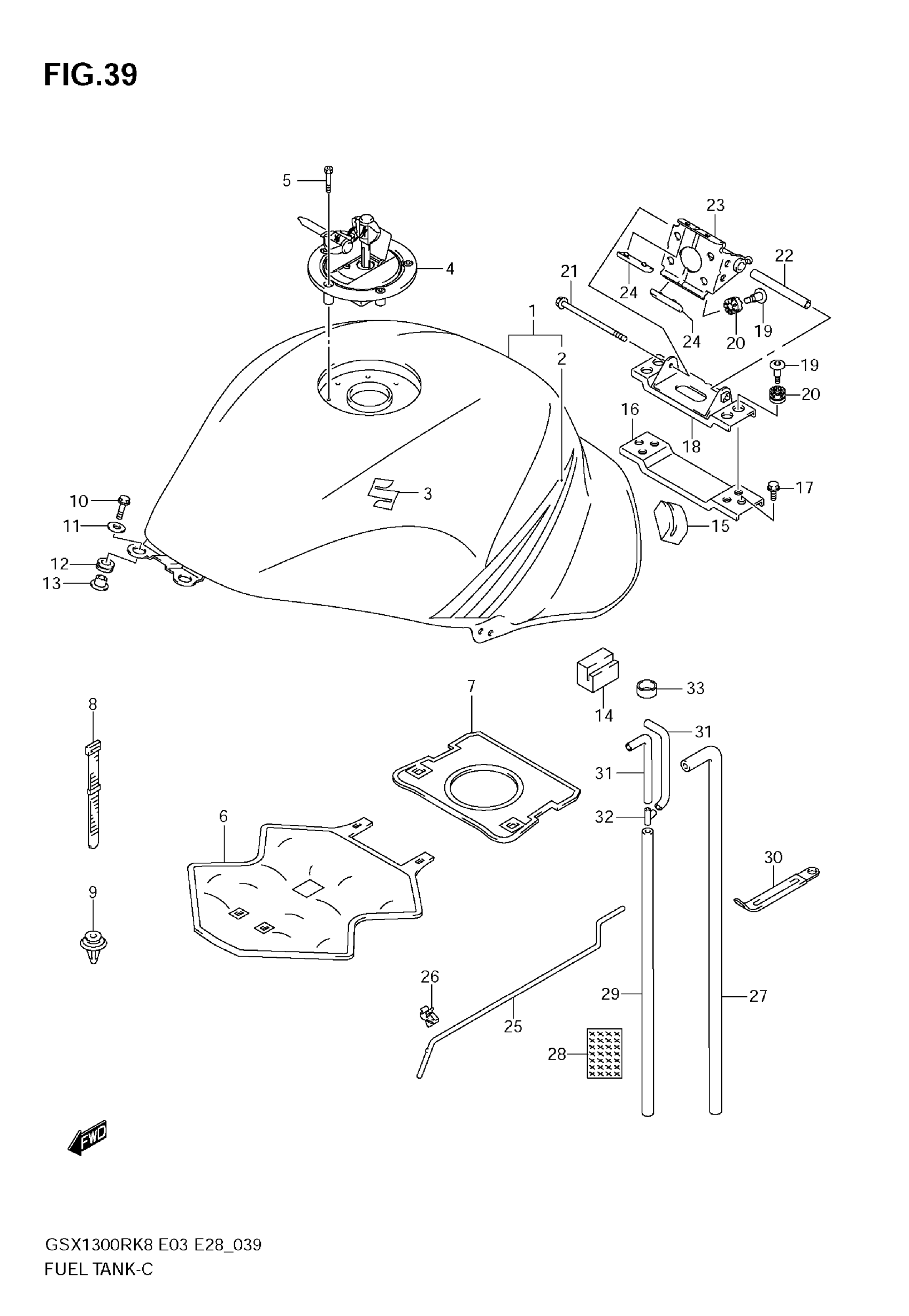

Suzuki GSX1300R (2009) FUEL TANK (MODEL K8) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | E3,E28 FOR CZY This part replaces 44100-15H00-YHF.

44100-15H02-YHF

$1,428.30

1

TANK ASSY, FUEL (WHITE) | E3,E28 FOR EAH

44100-15H00-YPA

Unavailable

1

TANK ASSY,FUEL( | E3,E28 FOR EAJ This part replaces 44100-15H00-YME.

44100-15H02-YME

$1,528.53

1

TANK ASSY,FUEL | E3,E28 FOR EAK This part replaces 44100-15H00-YKZ.

44100-15H02-YKZ

$1,688.92

1

TANK ASSY, FUEL (GRAY) | E33 FOR CZY

44100-15H20-YHF

Unavailable

1

TANK ASSY, FUEL (WHITE) | E33 FOR EAH

44100-15H20-YPA

Unavailable

1

TANK ASSY, FUEL (ORANGE) | E33 FOR EAJ

44100-15H20-YME

Unavailable

1

TANK ASSY,FUEL( | E33 FOR EAK; Includes Item(s) 2 - 2 This part replaces 44100-15H20-YKZ.

44100-15H21-YKZ

Unavailable

2

TAPE SET | FOR YHF

68110-15H00-EWW

Unavailable

2

TAPE SET | FOR YPA

68110-15H00-EWY

Unavailable

2

TAPE SET | FOR YME

68110-15H00-EWZ

Unavailable

2

TAPE SET | FOR YKZ

68110-15H00-EYA

Unavailable

3

EMBLEM, "S"

68111-18G20

$32.30

4

CAP SET,FUEL TA | E3,E28 This part replaces 44200-16850.

44200-16852

$118.21

4

CAP SET,FUEL TA | E33 This part replaces 44200-16870.

44200-16872

$155.42

5

BOLT

09106-05017

$2.83

6

SHIELD, HEAT FRONT

44191-15H00

$176.77

7

SHIELD, HEAT REAR

44191-15H10

$74.08

8

CLAMP

09407-18402

$2.19

9

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

10

BOLT, FRONT

09139-06029

$5.36

11

WASHER

09160-06054

$1.62

12

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

13

SPACER

44512-16G00

$7.44

14

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

15

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.12

16

BRACKET, REAR LOWER

44555-15H00

Unavailable

17

BOLT

01550-0812B

$2.73

18

BRACKET, FUEL TANK REAR NO.2 This part replaces 44550-15H00.

44550-15H01

Unavailable

19

SCREW (6X22) This part replaces 09139-06132.

09139-06191

$4.03

20

CUSHION

09320-08071

$3.25

21

BOLT, JOINT

07120-0695B

$4.32

22

SPACER, JOINT

44561-18G00

$16.96

23

BRACKET, FUEL TANK REAR NO.1 This part replaces 44530-15H00.

44530-15H01

Unavailable

24

CUSHION, BRACKET

45149-44G00

Unavailable

25

STAY

44574-35F00

$15.16

26

CLAMP, STAY

09403-05310

$2.66

27

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$22.32

28

SHIELD, DRAIN HOSE HEAT | E3,E28

44427-15H00

Unavailable

28

SHIELD, DRAIN HOSE HEAT | E33

44427-15H10

Unavailable

29

HOSE, BREATHER | E3,E28 This part replaces 44424-15H00.

44424-15H01

$20.27

30

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

31

HOSE,FUEL TANK BRTHR NO.3 | E3,E28 This part replaces 44424-15H10.

44424-15H11

$13.72

32

3 WAY | E3,E28

09367-06007

$3.46

33

HOSE, JOINT (L:600!10) | E3,E28

09352-12163-600

Unavailable
