2009 Suzuki GSX1300R Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

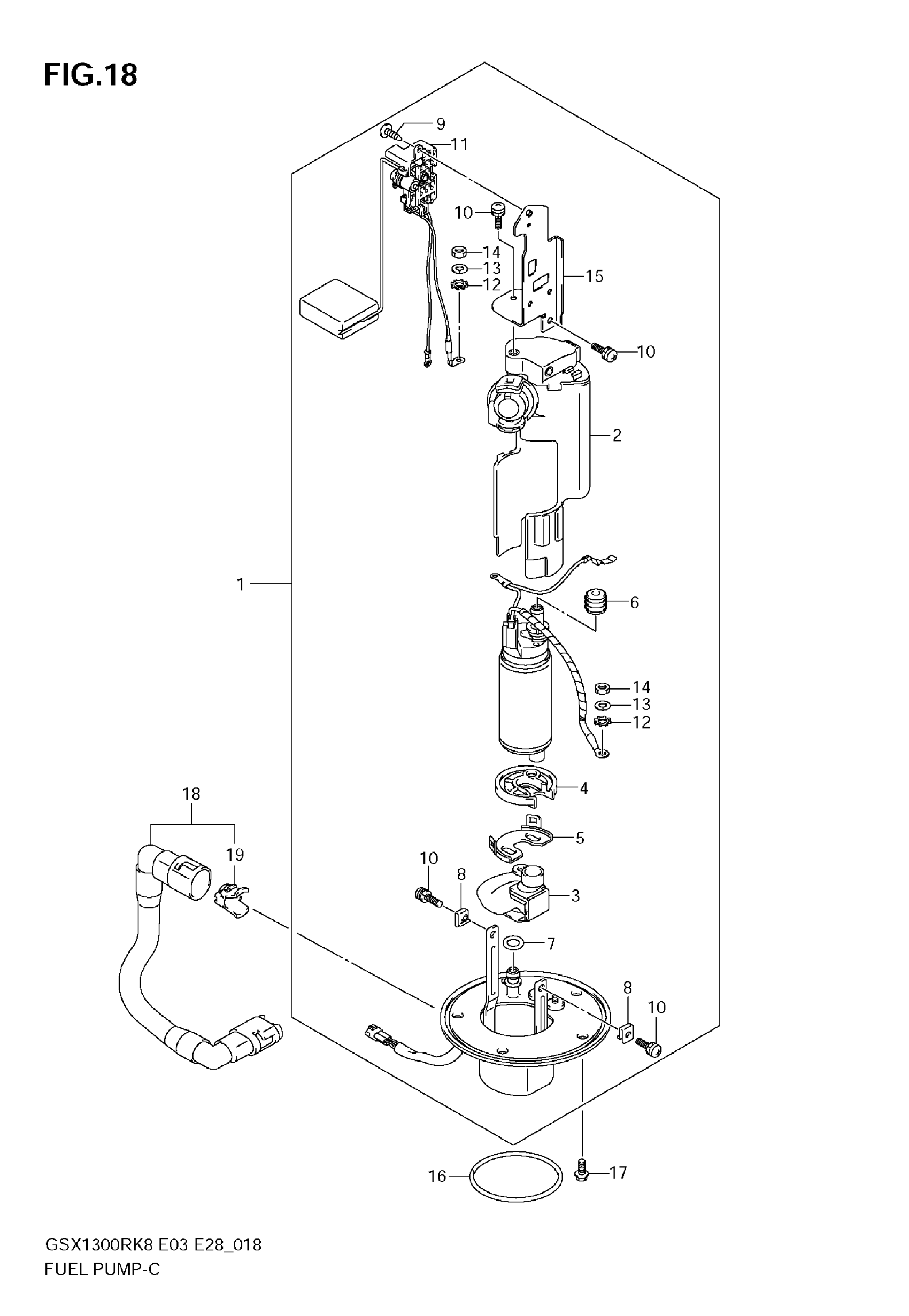

2009 Suzuki GSX1300R Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 15

15100-15H00

1
Out of stock

2

FILTER ASSY, FUEL

15410-41G00

1
Out of stock

3

STRAINER, FUEL PUMP

15420-44G00

1
Out of stock

4

CUSHION, FUEL PUMP

15111-35F00

1
Out of stock

5

HOLDER, FUEL PUMP

15112-42F00

1
Out of stock

6

BUSH, FUEL PUMP

15114-35F00

1
Out of stock

7

O RING

15113-35F00

1
Out of stock

8

NUT

15115-35F00

2
Out of stock

9

SCREW

15116-06G10

1
Out of stock

10

SCREW

15116-35F10

4
Out of stock

11

GAUGE ASSY, FUEL LEVEL

34810-15H00

1
Out of stock

12

WASHER

15171-35F00

2
Out of stock

13

SPRING WASHER

15172-35F00

2
Out of stock

14

NUT

15173-35F00

2
Out of stock

15

BRACKET, FUEL GAUGE

15181-15H00

1
Out of stock

16

O-RING

15201-35F00

1
Out of stock

17

BOLT

07120-0612A

5
Out of stock

18

HOSE, FUEL | Includes Item(s) 19 This part replaces 15810-15H00.

15810-15H01

1
Out of stock

19

RETAINER

15815-35F00

2
Out of stock
