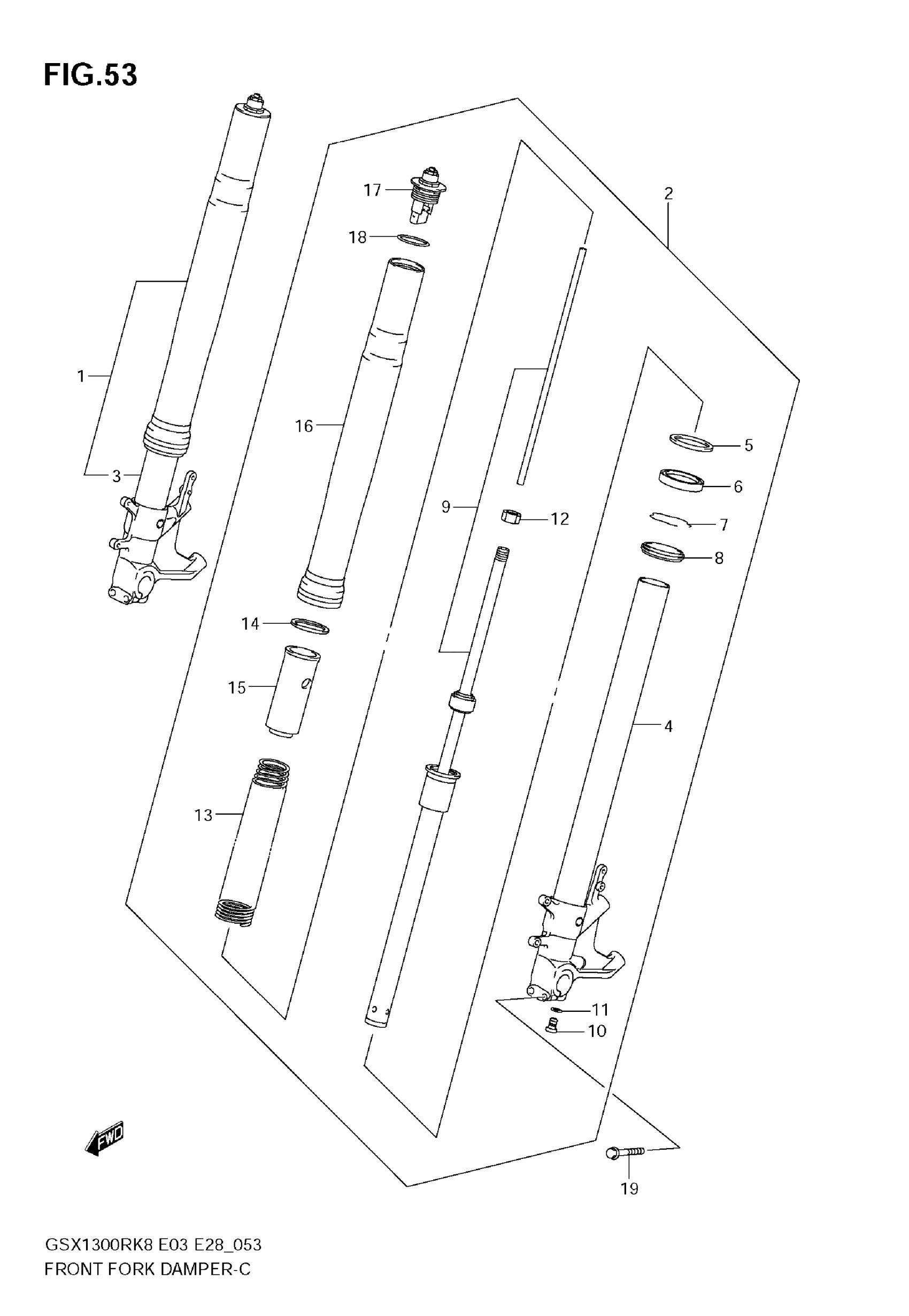

Suzuki GSX1300R (2009) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-24F50

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 18

51104-24F50

Unavailable

3

TUBE,INNER,R This part replaces 51110-24F50.

51110-24F51

$1,018.72

4

TUBE,INNER,L This part replaces 51120-24F50.

51120-24F51

$1,029.37

5

WASHER

51158-14200

$4.75

6

SEAL, OIL

51153-41G00

$23.04

7

RING, STOPPER

51156-14200

$4.63

8

SEAL, DUST

51173-41G00

$24.34

9

CYLINDER

51146-24F50

Unavailable

10

BOLT

51147-24F50

$9.87

11

GASKET

51148-41310

$2.14

12

.NUT, ROD

51352-13A60

$3.42

13

SPRING, FRONT

51171-24F50

$141.73

14

GUIDE, SPRING

51158-40F30

$11.75

15

SPACER, SPRING

51176-40F30

$29.78

16

TUBE, OUTER (BRONZE)

51130-24F50

Unavailable

17

CAP, FRONT FORK

51351-24F50

Unavailable

18

..O RING

62278-14100

$3.69

19

BOLT

51166-24F50

$8.77
