2009 Suzuki GSX1300R Bracket - Steering Damper Diagram

← All diagrams

Find the part on the Bracket - Steering Damper diagram for your 2009 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

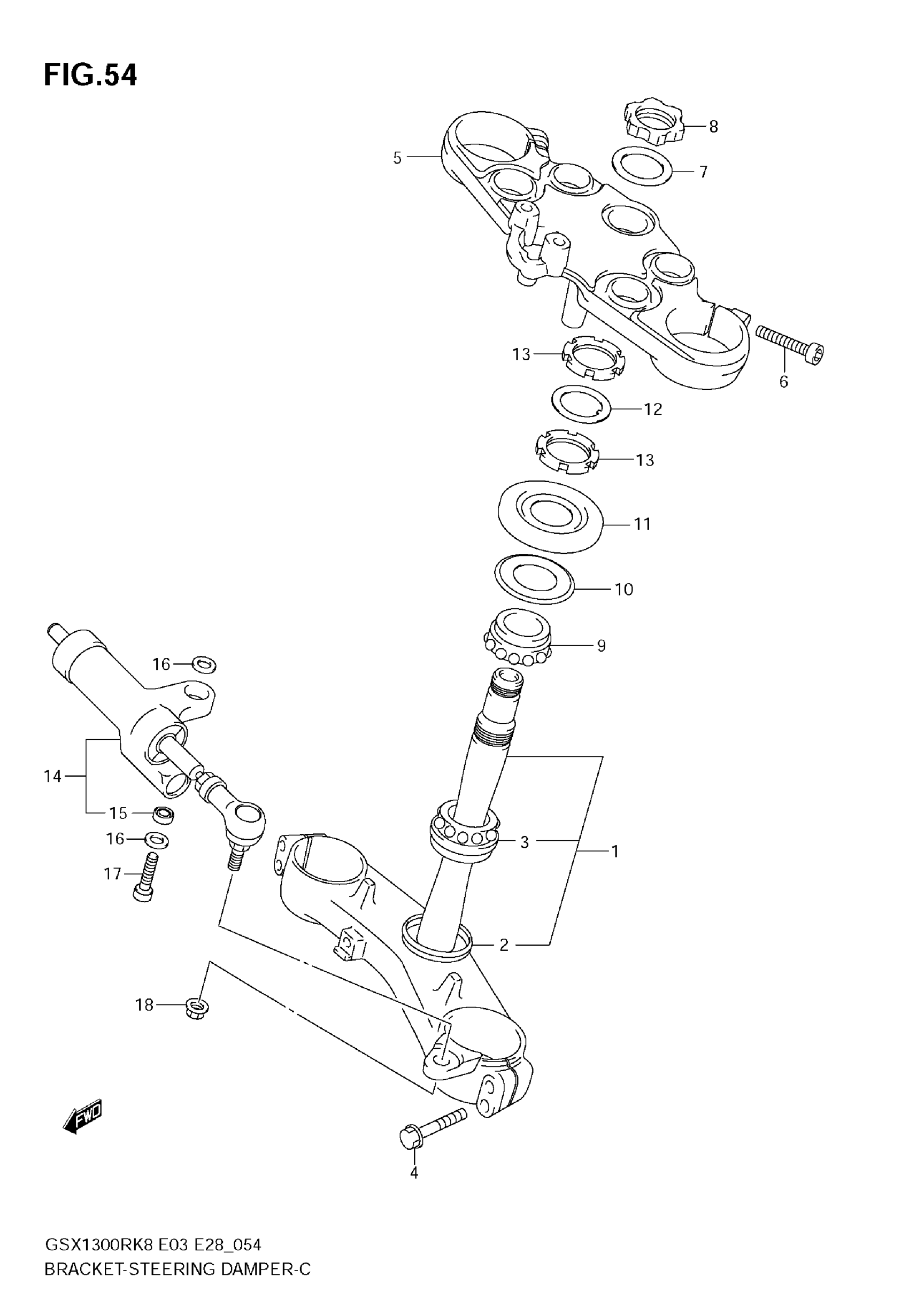

2009 Suzuki GSX1300R Bracket - Steering Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FR FORK UNDER | Includes Item(s) 2 - 3

51410-24F50

1
Out of stock

2

SEAL, LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT,AXLE STOPPER (8X40) | MODEL K8

51166-01D80

4
Out of stock

4

BOLT | MODEL K9

51451-05H00

4
Out of stock

5

BRACKET,FR FORK UPR

51311-24F50

1
Out of stock

6

BOLT

51328-24F50

2
Out of stock

7

WASHER

51356-24F50

1
Out of stock

8

NUT

51353-24F00

1
Out of stock

9

BEARING (30X55X17)

09267-30010

1
Out of stock

10

SEAL, DUST UPPER (30.1X56X4)

51644-12C00

1
Out of stock

11

COVER, STEERING UPPER

51643-41G00

1
Out of stock

12

WASHER, STEM

51641-33E00

1
Out of stock

13

NUT, STEM

51631-33E00

2
Out of stock

14

DAMPER ASSY,STEERING | Includes Item(s) 15

51750-15H00

1
Out of stock

15

BEARING (8X17.5X11)

09269-08003

1
Out of stock

16

SEAL, DUST

64339-14101

2
Out of stock

17

BOLT

07130-08307

1
Out of stock

18

NUT

08319-3108A

1
Out of stock
