Description

Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

59600-24F10

$311.17

2

PISTON/CUP SET

59600-24810

$48.23

3

BOOT

59666-44300

$5.80

4

PROTECTOR

59664-48B00

$11.02

5

DIAPHRAGM

59667-49460

$9.78

6

PLATE

59668-41C00

$9.32

7

CAP

59669-10G00

$38.30

8

SCREW

69689-49300

$1.91

9

.HOLDER

59671-36500

$12.21

10

BOLT (6X22)

59675-02FA0

$3.82

11

BOLT, UPPER (10X1.25X22)

09360-10062

$6.43

12

BOLT, LOWER LH (10X1.25X22)

09360-10062

$6.43

13

BOLT, LOWER RH (10X1.25X36)

09360-10064

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE, FRONT BRAKE NO.1

59480-15H00

Unavailable

16

HOSE, FRONT BRAKE NO.2

59240-15H00

Unavailable

17

CLAMP, BRAKE HOSE NO.1

59260-41G00

$17.90

18

CLAMP

59270-15H00

$12.82

19

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

20

BOLT

01547-0612A

$2.03

21

CLAMP, BRAKE HOSE NO.2

09403-16412

$3.37

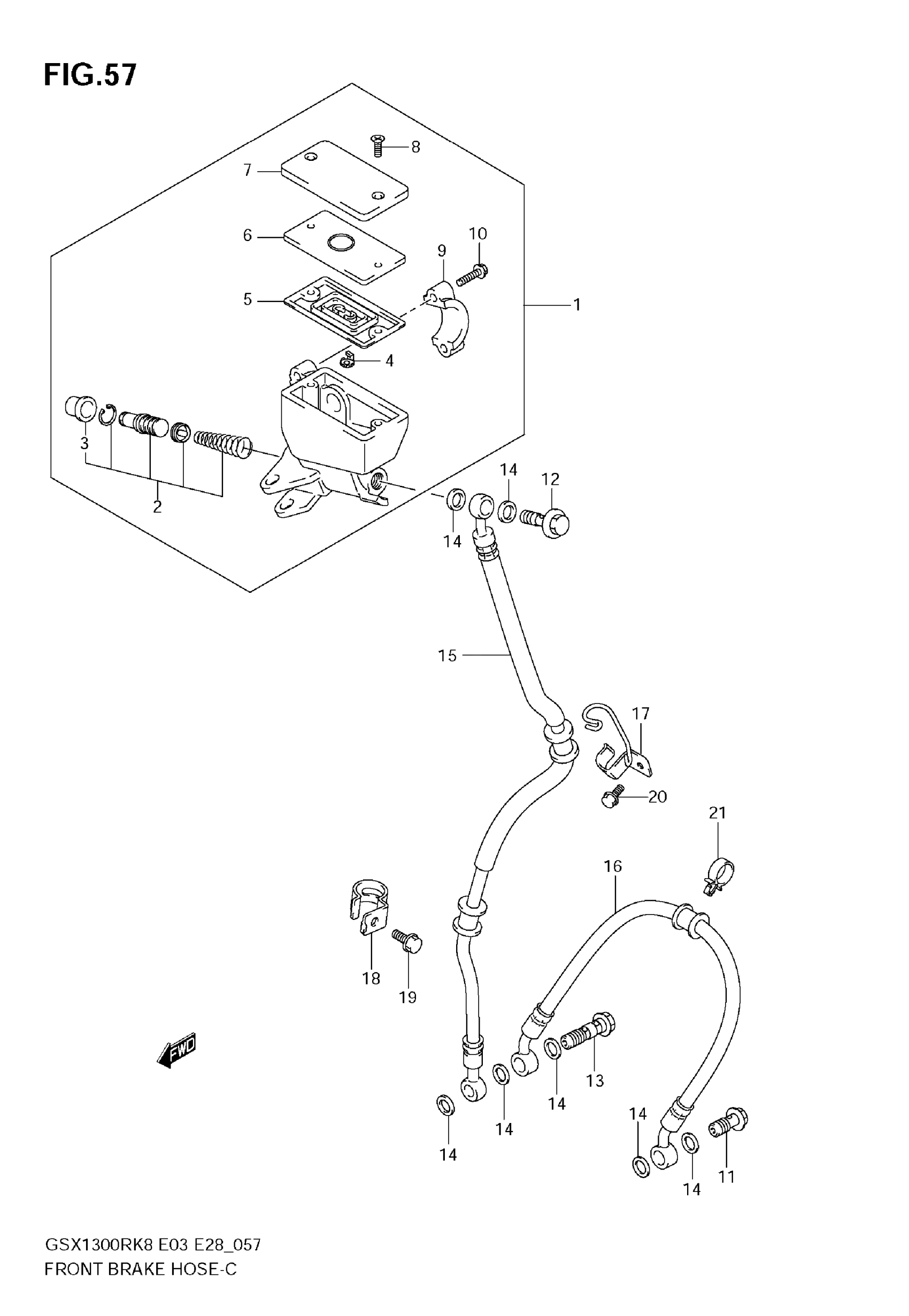

Suzuki GSX1300R (2009) FRONT BRAKE HOSE Diagram

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10

PISTON/CUP SET

BOOT

PROTECTOR

DIAPHRAGM

PLATE

CAP

SCREW

.HOLDER

BOLT (6X22)

BOLT, UPPER (10X1.25X22)

BOLT, LOWER LH (10X1.25X22)

BOLT, LOWER RH (10X1.25X36)

WASHER (10X15X1.5)

HOSE, FRONT BRAKE NO.1

HOSE, FRONT BRAKE NO.2

CLAMP, BRAKE HOSE NO.1

CLAMP

BOLT (6X12) This part replaces 63161-43E00.

BOLT

CLAMP, BRAKE HOSE NO.2
