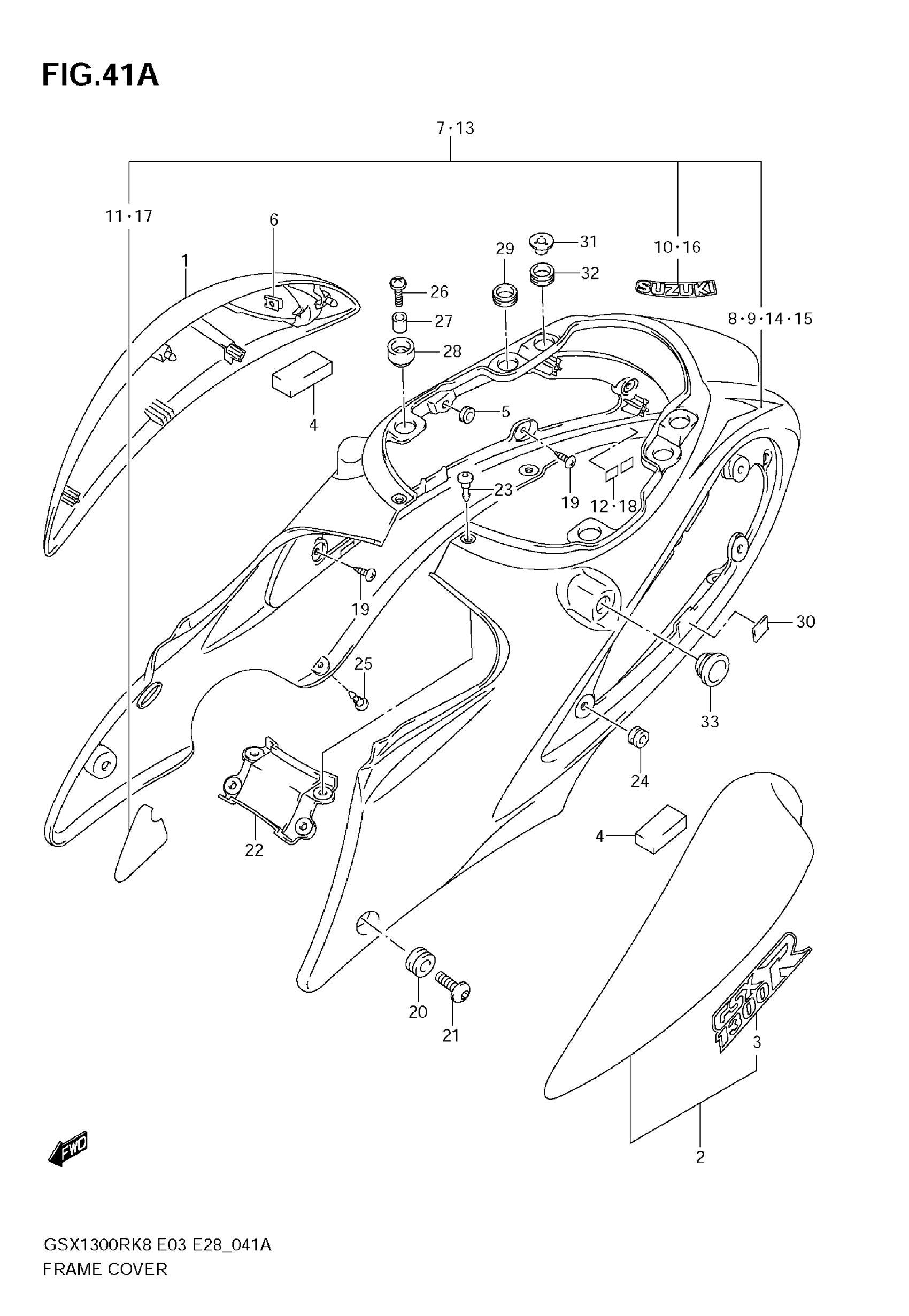

Suzuki GSX1300R (2009) FRAME COVER (MODEL K9) Diagram

#

Description
Price

1

COVER,FRAME,R(B | FOR CZY This part replaces 47110-15H00-4CX.

47110-15H01-4CX

$197.13

1

COVER,FRAME,R(W | FOR FGF This part replaces 47110-15H00-YBD.

47110-15H01-YBD

$260.55

1

COVER, FRAME RH (BLACK) | FOR FGG

47110-15H00-019

Unavailable

1

COVER COMP,FRAM | FOR GRF This part replaces 47110-15H00-YHG.

47110-15H01-YHG

Unavailable

2

COVER,FRAME,L(B | FOR CZY This part replaces 47210-15H00-4CX.

47210-15H01-4CX

$199.95

2

COVER,FRAME,L(W | FOR FGF This part replaces 47210-15H00-YBD.

47210-15H01-YBD

Unavailable

2

COVER, FRAME LH (BLACK) | FOR FGG

47210-15H00-019

Unavailable

2

COVER COMP,FRAM | FOR GRF; Includes Item(s) 3 - 4 This part replaces 47210-15H00-YHG.

47210-15H01-YHG

Unavailable

3

EMBLEM | FOR 4CX

68131-15H00-GKZ

$16.25

3

EMBLEM | FOR YBD

68131-15H00-GUJ

Unavailable

3

EMBLEM | FOR 019

68131-15H00-GLB

Unavailable

3

EMBLEM | FOR YHG

68131-15H00-GLA

$16.87

4

CUSHION

47511-15H00

$3.71

5

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

6

NUT This part replaces 09148-04034.

09148-04015

$2.36

7

COVER,FRAME CTR | FOR CZY This part replaces 47310-15H00-4CX.

47310-15H01-4CX

$490.58

7

COVER, FRAME CENTER (BLACK) | FOR FGG

47310-15H00-019

Unavailable

7

COVER,FRAME CTR | FOR GRF; Includes Item(s) 8 - 12 This part replaces 47310-15H00-YHG.

47310-15H01-YHG

Unavailable

8

TAPE, RH | FOR 4CX

68135-15H00-GEK

Unavailable

8

TAPE, RH | FOR 019

68135-15H00-GKY

Unavailable

8

TAPE, RH | FOR YHG

68135-15H00-CUK

Unavailable

9

TAPE, LH | FOR 4CX

68145-15H00-GEK

Unavailable

9

TAPE, LH | FOR 019

68145-15H00-GKY

Unavailable

9

TAPE, LH | FOR YHG

68145-15H00-CUK

Unavailable

10

EMBLEM,"SUZUKI" | FOR 4CX,YHG This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

10

EMBLEM,"SUZUKI" | FOR 019 This part replaces 68641-19F00-17U.

68641-19F01-17U

$9.15

11

TAPE, CENTER

47312-15H00

$18.48

12

CUSHION

45516-01H00

$5.32

13

COVER,FRAME CTR | FOR FGF; Includes Item(s) 14 - 18 This part replaces 47310-15H10-YBD.

47310-15H11-YBD

$441.02

14

TAPE, RH

68135-15H10-GLR

Unavailable

15

TAPE, LH

68145-15H10-GLR

Unavailable

16

.EMBLEM,"SUZUKI" (BLACK) This part replaces 68641-19F00-019.

68281-24F11-019

$10.89

17

TAPE, CENTER

47312-15H00

$18.48

18

CUSHION

45516-01H00

$5.32

19

BOLT,5X20 This part replaces 09139-05062.

09139-05062-XC0

$3.37

20

CUSHION

09320-09016

$1.97

21

SCREW, SIDE FRONT

09139-06126

$4.04

22

LID, CENTER (BLACK) | FOR CZY

47411-15H00-YAY

Unavailable

22

LID, CENTER (WHITE) | FOR FGF

47411-15H00-YBD

Unavailable

22

LID, CENTER (BLACK) | FOR FGG

47411-15H00-019

Unavailable

22

LID,FRAME COVER | FOR GRF This part replaces 47411-15H00-YHG.

47411-15H00

$9.55

23

CLIP, LID (BLACK)

09409-06314-5PK

$2.78

24

CUSHION, SIDE

09320-09016

$1.97

25

CLIP, LOWER

09409-06329

$2.79

26

SCREW, UPPER FRONT

09136-06105

$1.97

27

SPACER

09180-06288

$2.06

28

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

29

CUSHION, UPPER CENTER

47191-24F00

$5.17

30

CUSHION (11X20X3)

33652-22D00

$1.67

31

WASHER,FRAME COVER

47190-24F21

$9.94

32

CUSHION, UPPER REAR

47191-24F30

$5.36

33

SPACER, SIDE CENTER

47191-24F20

$7.22
