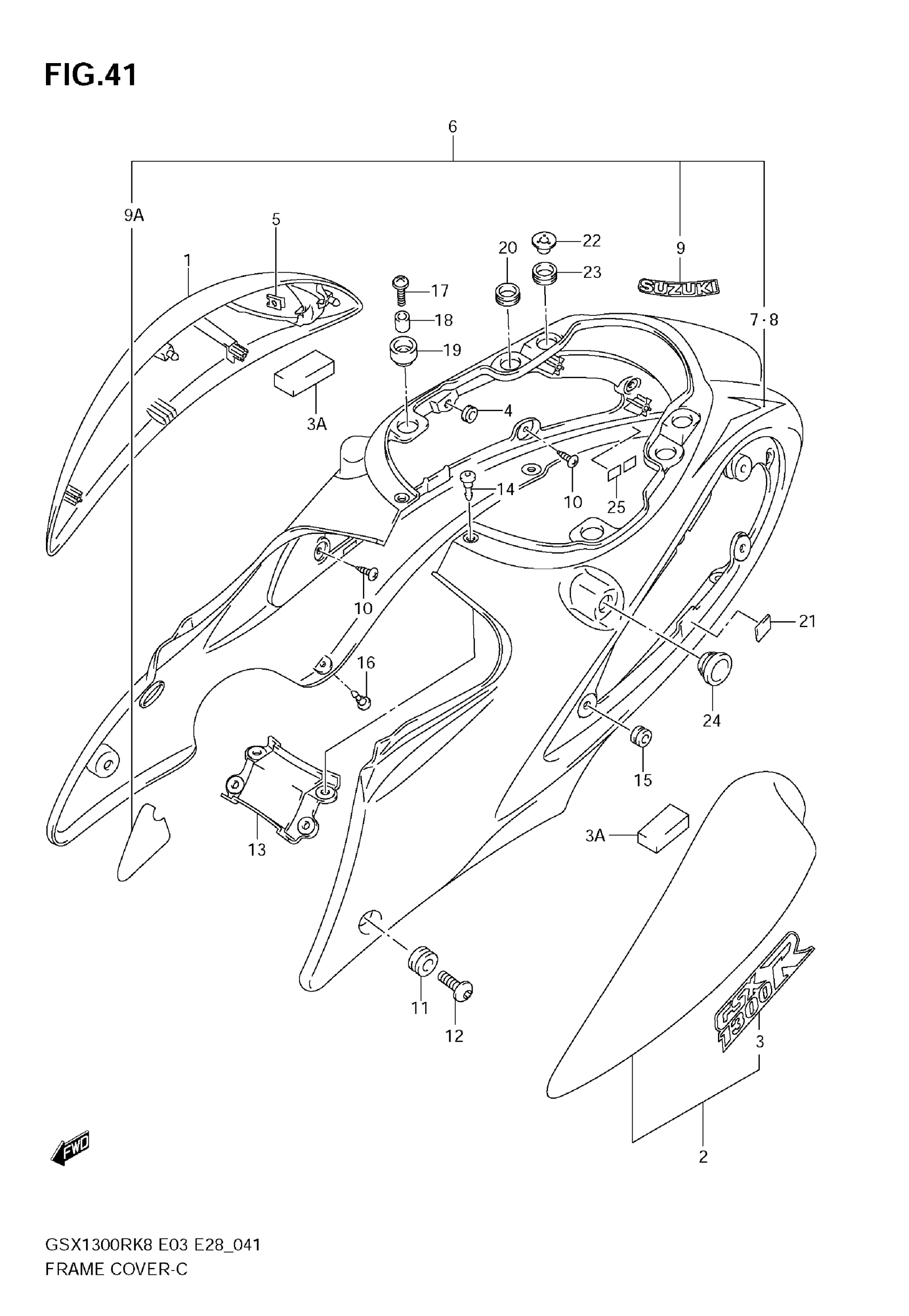

Suzuki GSX1300R (2009) FRAME COVER (MODEL K8) Diagram

#

Description
Price

1

COVER,FRAME,R(G | FOR CZY This part replaces 47110-15H00-YHF.

47110-15H01-YHF

$227.92

1

COVER, FRAME RH (WHITE) | FOR EAH

47110-15H00-YPA

Unavailable

1

COVER COMP,FRAM | FOR EAJ This part replaces 47110-15H00-YAY.

47110-15H01-YAY

Unavailable

1

COVER,FRAME,R(B | FOR EAK This part replaces 47110-15H00-YKZ.

47110-15H01-YKZ

$227.92

2

COVER,FRAME,L(G | FOR CZY This part replaces 47210-15H00-YHF.

47210-15H01-YHF

Unavailable

2

COVER,FRAME(WHI | FOR EAH This part replaces 47210-15H00-YPA.

47210-15H01-YPA

Unavailable

2

COVER,FRAME,L(B | FOR EAJ This part replaces 47210-15H00-YAY.

47210-15H01-YAY

$242.33

2

COVER COMP,FRAM | FOR EAK; Includes Item(s) 3 - 3A This part replaces 47210-15H00-YKZ.

47210-15H01-YKZ

$273.88

3

EMBLEM | FOR YHF

68131-15H00-EYE

$16.57

3

EMBLEM | FOR YPA

68131-15H00-EYF

Unavailable

3

EMBLEM | FOR YAY This part replaces 68131-15H00-EYG.

68131-15H00-GKZ

$16.25

3

EMBLEM | FOR YKZ

68131-15H00-EYH

$16.87

3A

CUSHION

47511-15H00

$3.71

4

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

5

NUT This part replaces 09148-04034.

09148-04015

$2.36

6

COVER,FRAME CTR | FOR CZY This part replaces 47310-15H00-YHF.

47310-15H01-YHF

$412.93

6

COVER, FRAME CENTER (WHITE) | FOR EAH

47310-15H00-YPA

Unavailable

6

COVER,FRAME CTR | FOR EAJ This part replaces 47310-15H00-YAY.

47310-15H01-YAY

Unavailable

6

COVER,FRAME CTR | FOR EAK; Includes Item(s) 7 - 9A This part replaces 47310-15H00-YKZ.

47310-15H01-YKZ

$445.97

7

TAPE, RH | FOR YHF

68135-15H00-CVN

Unavailable

7

TAPE, RH | FOR YAP

68135-15H00-EYC

Unavailable

7

TAPE, RH | FOR YAY

68135-15H00-EAJ

Unavailable

7

TAPE, RH | FOR YKZ

68135-15H00-EYD

$31.28

8

TAPE, LH | FOR YHF

68145-15H00-CVN

Unavailable

8

TAPE, LH | FOR YAP

68145-15H00-EYC

Unavailable

8

TAPE, LH | FOR YAY

68145-15H00-EAJ

Unavailable

8

TAPE, LH | FOR YKZ

68145-15H00-EYD

$31.28

9

EMBLEM,"SUZUKI" | FOR YHF,YAY,YKZ This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

9

.EMBLEM,"SUZUKI" (BLACK) | FOR YPA This part replaces 68281-24F10-019.

68281-24F11-019

$10.89

9A

TAPE, CENTER

47312-15H00

$18.48

10

BOLT,5X20 This part replaces 09139-05062.

09139-05062-XC0

$3.37

11

CUSHION

09320-09016

$1.97

12

SCREW, SIDE FRONT

09139-06126

$4.04

13

LID,FRAME COVER | FOR CZY This part replaces 47411-15H00-YHF.

47411-15H00

$9.55

13

LID, CENTER (WHITE) | FOR EAH

47411-15H00-YPA

Unavailable

13

LID, CENTER (BLACK) | FOR EAJ

47411-15H00-YAY

Unavailable

13

LID, CENTER (BLUE) | FOR EAK

47411-15H00-YKZ

Unavailable

14

CLIP, LID (BLACK)

09409-06314-5PK

$2.78

15

CUSHION, SIDE

09320-09016

$1.97

16

CLIP, LOWER

09409-06329

$2.79

17

SCREW, UPPER FRONT

09136-06105

$1.97

18

SPACER

09180-06288

$2.06

19

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

20

CUSHION, UPPER CENTER

47191-24F00

$5.17

21

CUSHION (11X20X3)

33652-22D00

$1.67

22

WASHER,FRAME COVER

47190-24F21

$9.94

23

CUSHION, UPPER REAR

47191-24F30

$5.36

24

SPACER, SIDE CENTER

47191-24F20

$7.22

25

CUSHION

45516-01H00

$5.32
