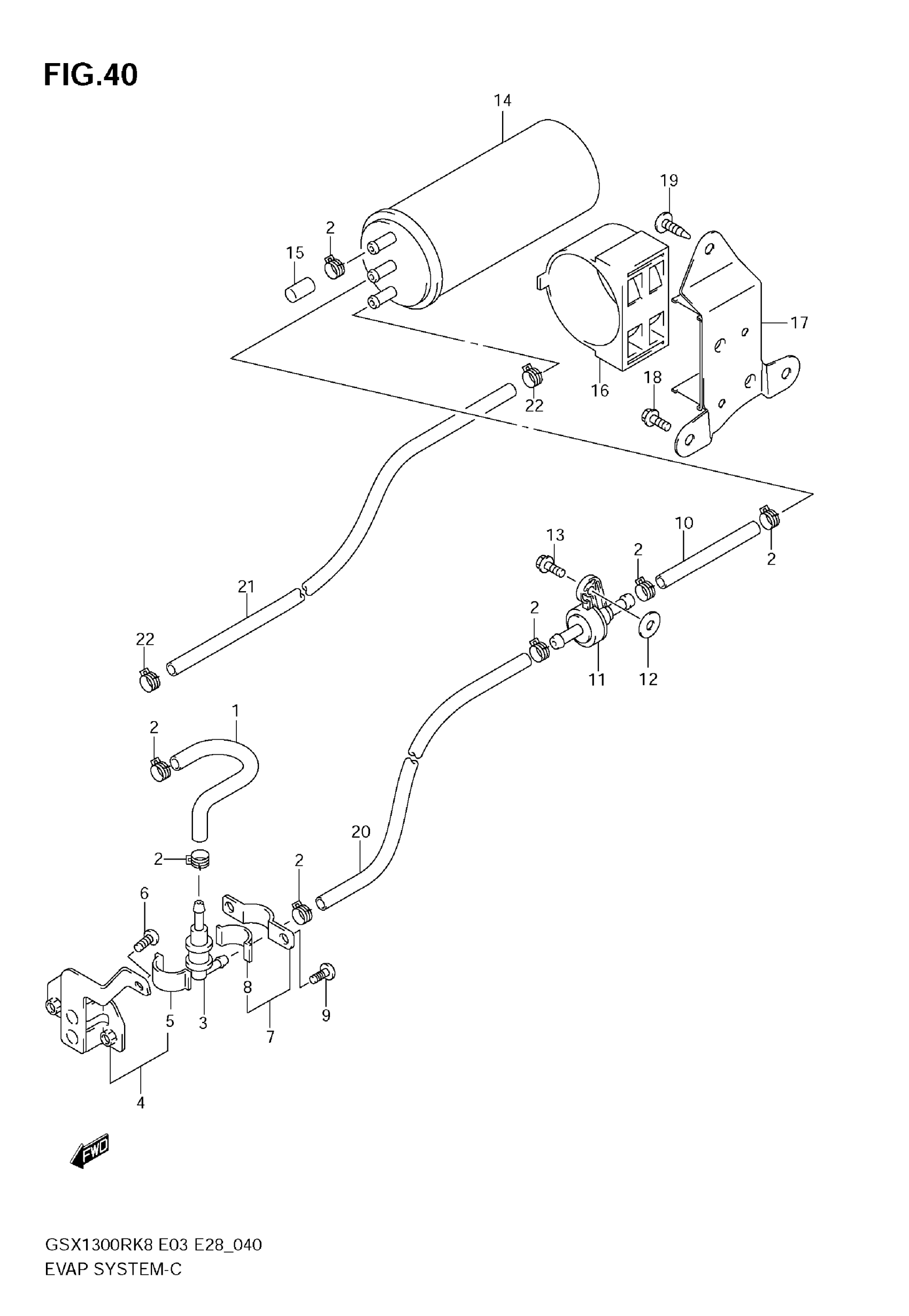

Suzuki GSX1300R (2009) EVAP SYSTEM (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-15H00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE, BREATHER VALVE | Includes Item(s) 5

44890-24F00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW, PLATE

02142-0610B

$2.15

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW

02142-0408B

$1.70

10

HOSE, 2 WAY & BREATHER

44435-15H00

Unavailable

11

VALVE, 2 WAY & CANISTER

44240-24F00

$64.68

12

WASHER

09160-06077

$1.91

13

BOLT

01550-0616B

$2.48

14

CANISTER

17210-15H00

$305.77

15

CAP

09251-07003

$2.53

16

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

17

BRACKET, CANISTER

44880-15H00

Unavailable

18

BOLT, BRACKET

01550-0612B

$2.39

19

SCREW, HOLDER

02142-0610B

$2.15

20

HOSE, CANISTER & 2 WAY VALVE

44437-15H00

Unavailable

21

HOSE, CANISTER & CARB

09359-54113-700

Unavailable

22

CLIP

09401-12404

$2.34
