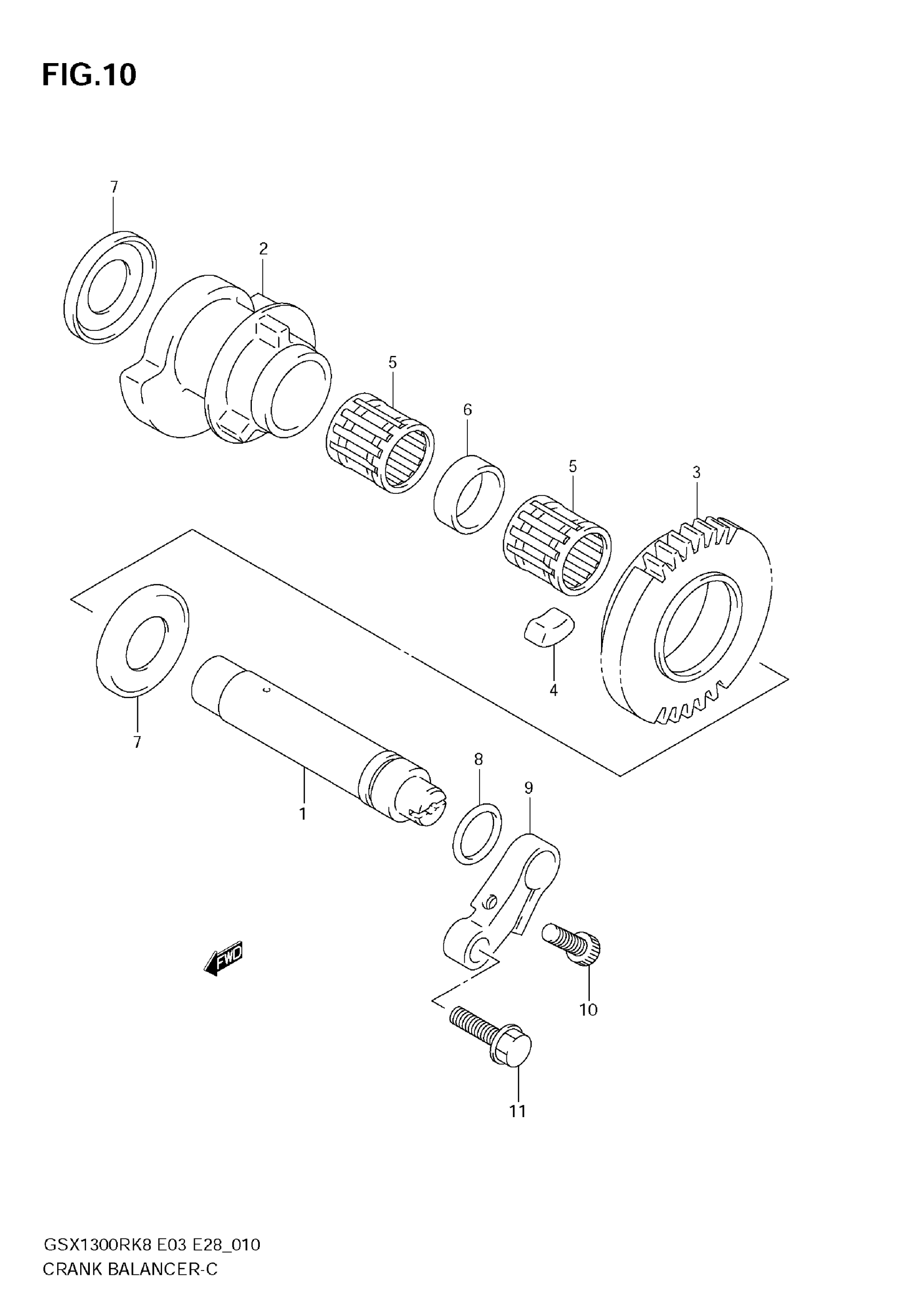

Suzuki GSX1300R (2009) CRANK BALANCER Diagram

#

Description
Price

1

SHAFT, CRANK BALANCER

12650-24F01-0F0

Unavailable

2

BALANCER,CRANK

12654-24F00-0F0

Unavailable

3

GEAR, CRANK BALANCER

12666-24F00

Unavailable

4

DAMPER,BALANCER GEAR

12686-24F00

$10.22

5

BEARING

09263-19015

Unavailable

6

SPACER

09180-19014

Unavailable

7

WASHER

09169-21001

$9.53

8

O RING, LH (D:1.9,ID:16.8)

09280-17007

$5.77

9

ARM,BALANCER SHAFT This part replaces 12681-26D01.

12681-26D02

$73.42

10

BOLT

07130-0620B

$3.05

11

BOLT (6X20)

09103-06286

$2.20
