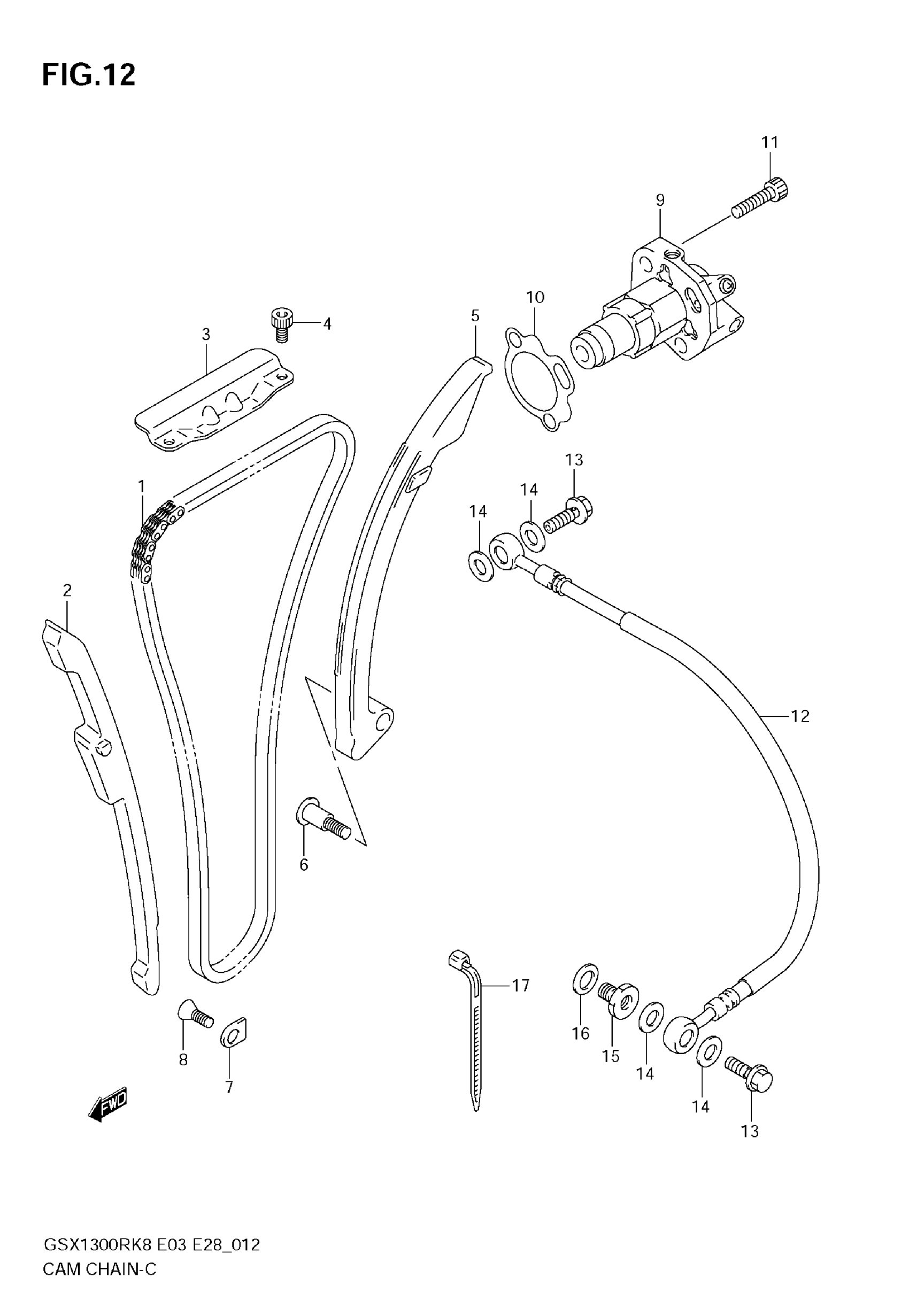

Suzuki GSX1300R (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE This part replaces 12760-24F00.

12760-24F01

$157.01

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-15H00.

12771-15H01

$41.29

3

GUIDE,CAM CHAIN This part replaces 12782-24F01.

12782-24F02

$35.17

4

.BOLT

07130-0612B

$3.05

5

TENSIONER,CAM C This part replaces 12811-15H00.

12811-15H01

$53.92

6

BOLT

12812-31G00

$4.58

7

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.02

8

SCREW

02122-0612B

$1.84

9

ADJUSTER ASSY, TENSIONER This part replaces 12830-15H00.

12830-15H01

$252.75

10

GASKET, TNSN ADJUSTER

12837-02H00

$6.46

11

BOLT

07130-0625B

$3.04

12

HOSE,CAM CHAIN TNSN ADJ OIL

12835-15H00

$126.18

13

BOLT,ADJ OIL HOSE UNION

12838-15H00

$6.60

14

GASKET

09168-08034

$2.03

15

PLUG,ADJ OIL HOSE UNION This part replaces 12839-15H00.

12839-15H01

$18.48

16

GASKET

09168-14002

$2.26

17

CLAMP

09407-18402

$2.19
