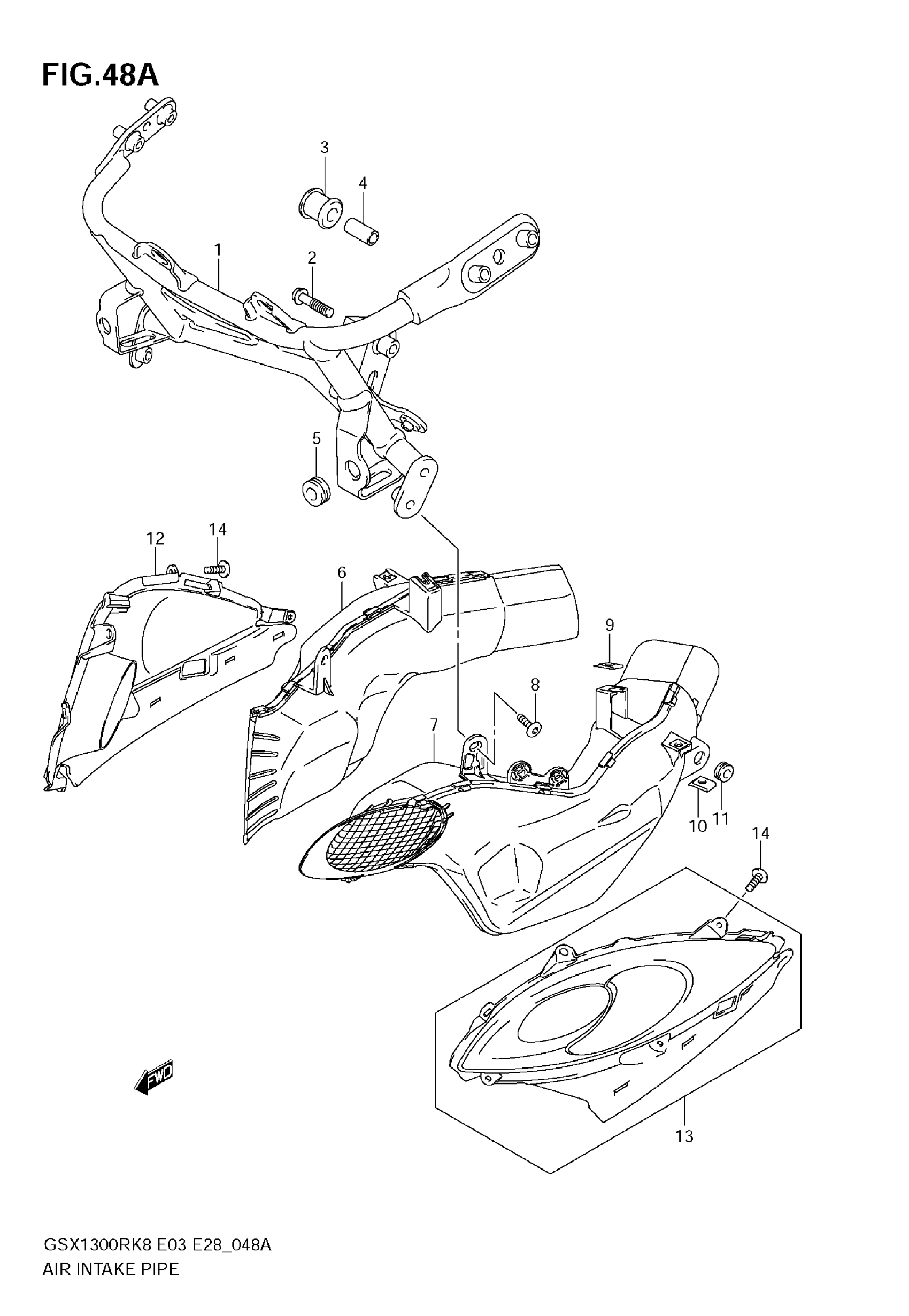

Suzuki GSX1300R (2009) AIR INTAKE PIPE (MODEL K9) Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-15H00.

94510-15H01

$443.92

2

BOLT, BRACE

09103-08367

$3.78

3

CUSHION, UPPER

94541-41C00

$5.18

4

SPACER, UPER

09180-08215

$4.19

5

CUSHION, HEADLAMP

09320-08028

$3.04

6

PIPE, INTAKE RH This part replaces 94420-15H00.

94420-15H01

$139.15

7

PIPE, INTAKE LH This part replaces 94430-15H00.

94430-15H01

$139.15

8

SCREW

94423-15H00

$4.96

9

NUT COWL

94484-24F00

$4.03

10

NUT, REAR

09148-05038

$1.97

11

CUSHION, SIDE

09320-08028

$3.04

12

COVER,INTAKE,R | FOR CZY This part replaces 94671-15H00-YAY.

94671-15H01-YAY

$252.63

12

COVER, INTAKE RH (WHITE) | FOR FGF

94671-15H00-YBD

Unavailable

12

COVER, INTAKE RH (GOLD) | FOR FGG

94671-15H00-YMG

Unavailable

12

COVER, INTAKE RH (GRAY) | FOR GRF

94671-15H00-YHG

Unavailable

13

COVER,INTAKE,L | FOR CZY This part replaces 94681-15H00-YAY.

94681-15H01-YAY

$253.52

13

COVER,INTAKE,L | FOR FGF This part replaces 94681-15H00-YBD.

94681-15H01-YBD

$343.25

13

COVER, INTAKE LH (GOLD) | FOR FGG

94681-15H00-YMG

Unavailable

13

COVER,INTAKE,L | FOR GRF This part replaces 94681-15H00-YHG.

94681-15H01-YHG

$277.00

14

SCREW

03541-0516B

$1.78
