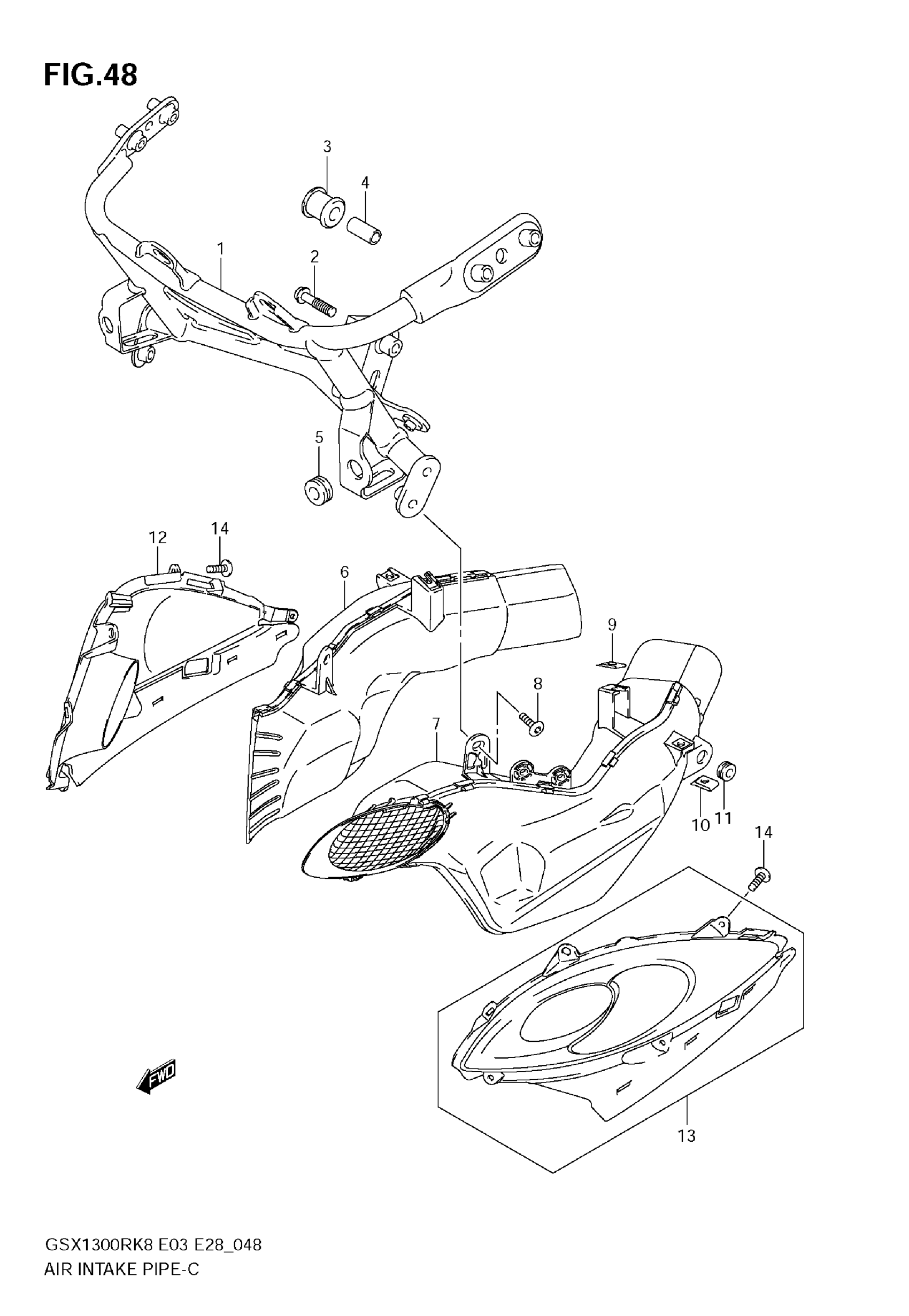

Suzuki GSX1300R (2009) AIR INTAKE PIPE (MODEL K8) Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-15H00.

94510-15H01

$484.68

2

BOLT, BRACE

09103-08367

$4.12

3

CUSHION, UPPER

94541-41C00

$5.10

4

SPACER, UPPER

09180-08215

$3.97

5

CUSHION, HEADLAMP

09320-08028

$2.82

6

PIPE, INTAKE RH This part replaces 94420-15H00.

94420-15H01

$156.30

7

PIPE, INTAKE LH This part replaces 94430-15H00.

94430-15H01

$156.30

8

SCREW

94423-15H00

$6.57

9

NUT COWL

94484-24F00

$3.79

10

NUT, REAR

09148-05038

$2.01

11

CUSHION, SIDE

09320-08028

$2.82

12

COVER,INTAKE,R | FOR CZY This part replaces 94670-15H00-YHF.

94671-15H01-YHF

$262.73

12

COVER, INTAKE RH (WHITE) | FOR EAH

94670-15H00-YPA

Unavailable

12

COVER,INTAKE,R | FOR EAJ This part replaces 94670-15H00-YME.

94671-15H01-YME

Unavailable

12

COVER,INTAKE,R | FOR EAK This part replaces 94670-15H00-YKZ.

94671-15H01-YKZ

$283.75

13

COVER,INTAKE,L | FOR CZY This part replaces 94680-15H00-YHF.

94681-15H01-YHF

Unavailable

13

COVER, INTAKE LH (WHITE) | FOR EAH

94680-15H00-YPA

Unavailable

13

COVER,INTAKE,L | FOR EAJ This part replaces 94680-15H00-YME.

94681-15H01-YME

Unavailable

13

COVER,INTAKE,L | FOR EAK This part replaces 94680-15H00-YKZ.

94681-15H01-YKZ

$282.10

14

SCREW

03541-0516B

$1.82
