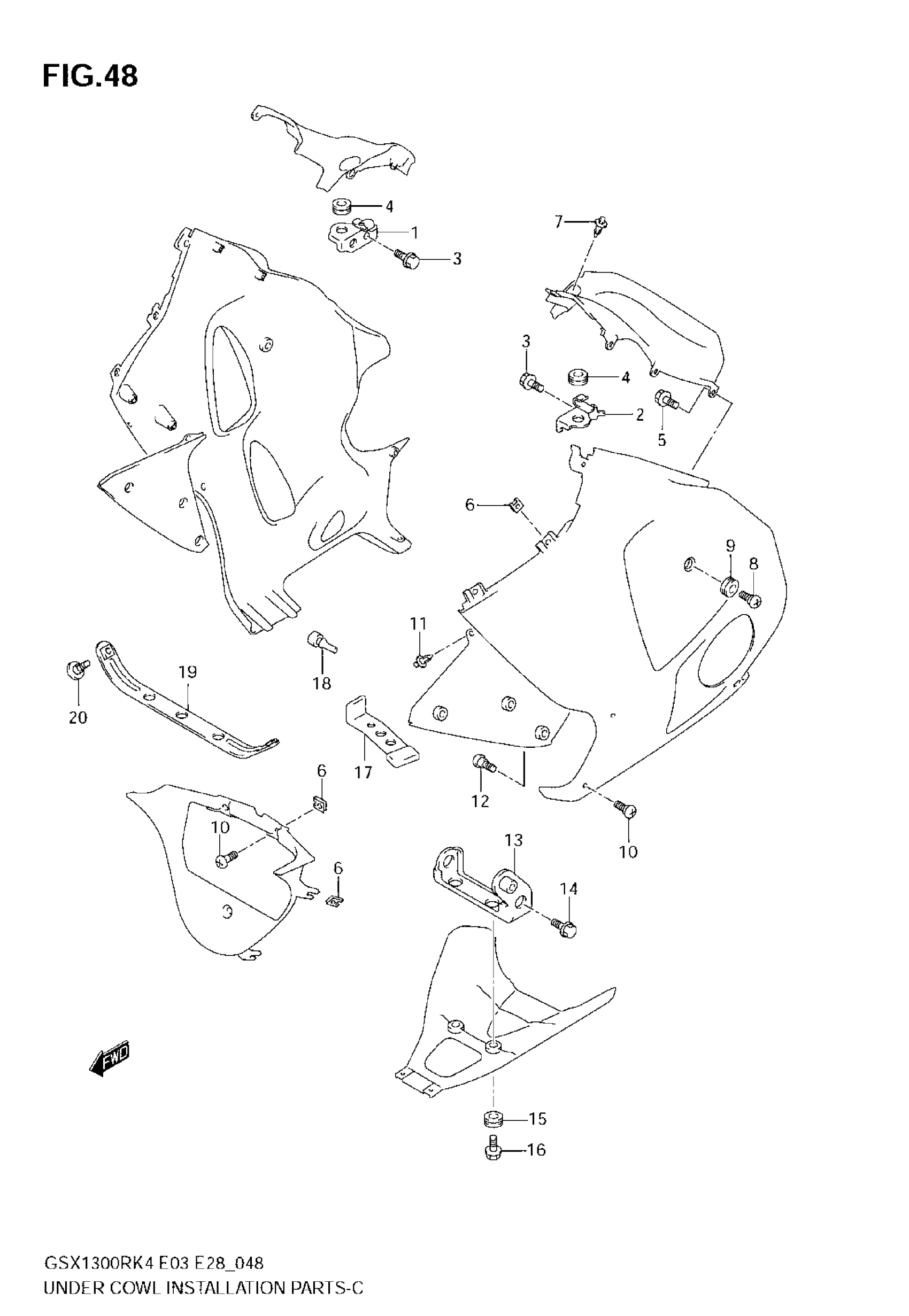

Suzuki GSX1300R (2007) UNDER COWL INSTALLATION PARTS Diagram

#

Description
Price

1

BRACKET, PANEL RH

94520-24F00

$34.73

2

BRACKET, PANEL LH

94530-24F00

$45.52

3

BOLT | MODEL K4/K5/K6 This part replaces 01550-06203.

01550-0620A

$2.01

3

BOLT | MODEL K7

01550-0620B

$2.44

4

CUSHION

09320-08018

$2.82

5

SCREW | MODEL K4/K5/K6 This part replaces 03541-05083.

03541-0508A

$1.46

5

SCREW | MODEL K7

03541-0508B

$2.35

6

NUT COWL

94484-24F00

$3.79

7

CLIP, SIDE PANEL

09409-07332

$2.57

8

SCREW | MODEL K4/K5/K6 This part replaces 09139-06087.

09139-06126

$3.75

8

SCREW, UNDER COWL | MODEL K7

09139-06126

$3.75

9

CUSHION

09320-09016

$2.01

10

SCREW, LOWER

09139-05054

$3.93

11

CLIP, INNER PANEL (BLACK)

09409-06314-5PK

$2.80

12

SCREW | MODEL K4/K5/K6 This part replaces 03541-05083.

03541-0508A

$1.46

12

SCREW, INNER PANEL | MODEL K7

03541-0508B

$2.35

13

BRACKET, REAR COWL

94540-24F01

$31.37

14

BOLT, PROP SHAFT REAR | MODEL K4/K5/K6 This part replaces 01550-10203.

01550-1020A

$2.84

14

BOLT | MODEL K7

01550-1020B

$4.62

15

CUSHION

09320-09016

$2.01

16

SCREW | MODEL K4/K5/K6 This part replaces 09139-06087.

09139-06126

$3.75

16

SCREW | MODEL K7

09139-06126

$3.75

17

BRACKET,UNDER C This part replaces 94550-24F00.

94550-24F01

$11.68

18

CUSHION, RH

09321-05019

$2.60

19

PLATE,UNDER COW This part replaces 94561-24F00.

94561-24F01

$12.03

20

SCREW

09139-05054

$3.93
