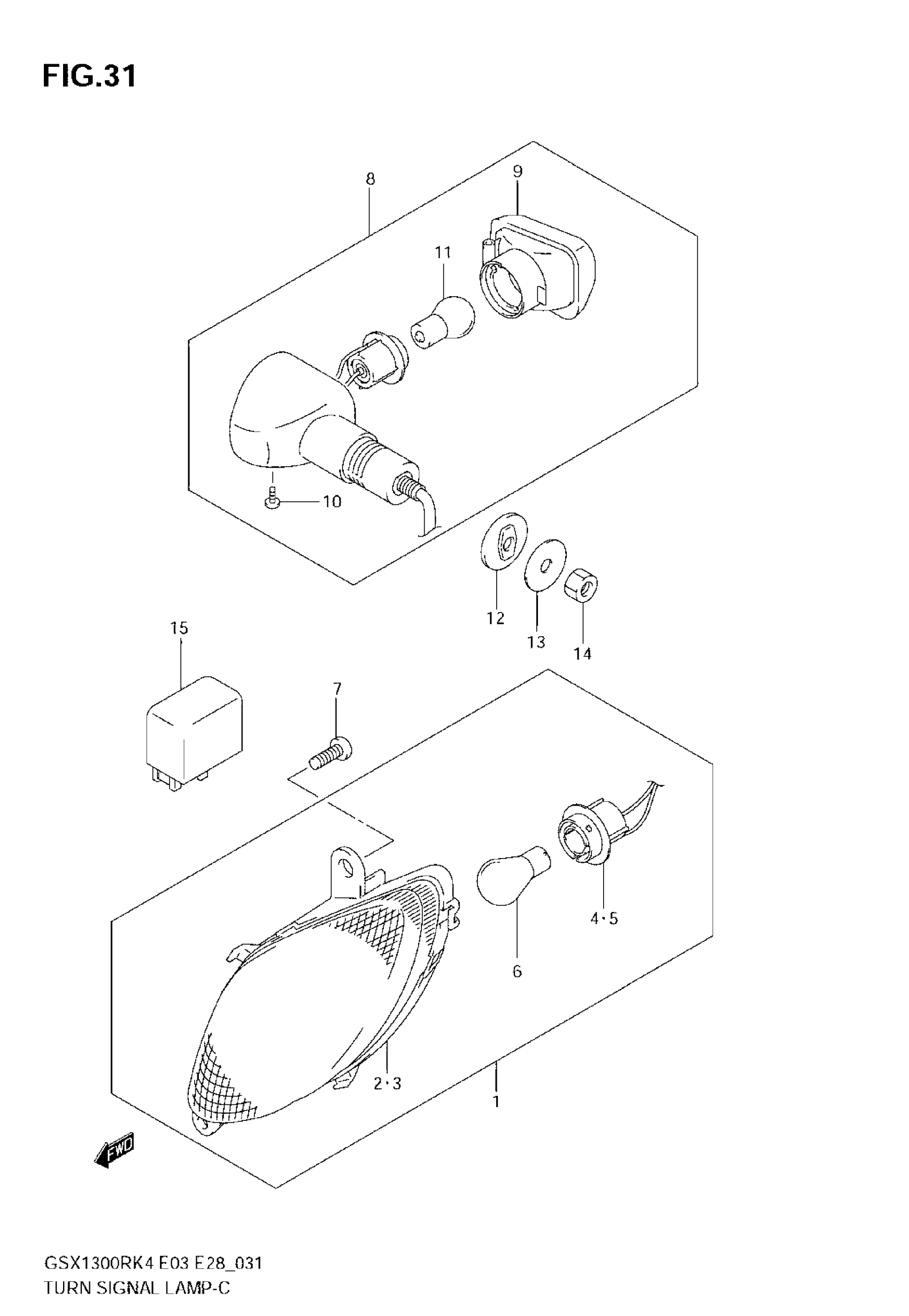

Suzuki GSX1300R (2007) TURNSIGNAL LAMP (MODEL K4) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-24F00

Unavailable

1

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 2 - 6

35602-24F00

Unavailable

2

LAMP UNIT, RH

35610-24F00

Unavailable

3

LAMP UNIT, LH

35630-24F00

$58.55

4

SOCKET & CORD RH

35618-24F00

Unavailable

5

SOCKET & CORD LH

35638-24F00

Unavailable

6

BULB (12V,21W)

09471-12045

$3.27

7

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

8

LAMP ASSY, REAR TURNSIGNAL RH

35603-33E30

$111.78

8

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 9 - 11

35604-33E30

$111.78

9

LAMP UNIT

35610-33E00

$32.75

10

SCREW This part replaces 03242-04123.

03242-0412B

$2.98

11

BULB (12V,21W)

09471-12045

$3.27

12

SPACER, REAR TURNSIGNAL LAMP

35695-17C00

$4.03

13

WASHER (10.5X30X2.3)

09160-10501

$2.33

14

NUT This part replaces 08310-00103.

08310-0010A

$1.84

15

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
