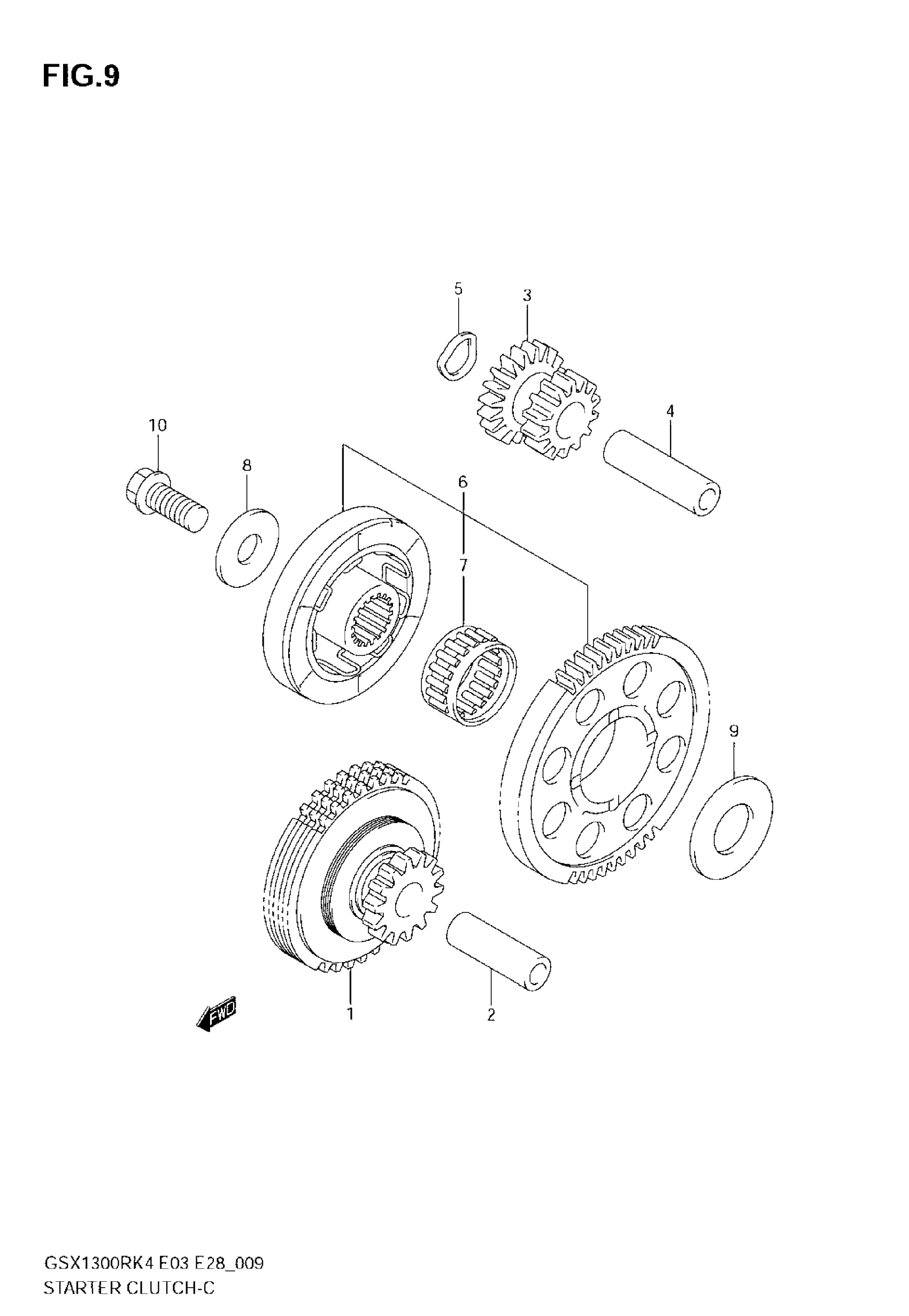

Suzuki GSX1300R (2007) STARTER CLUTCH Diagram

LIMITER ASSY, STARTER IDLE GEAR

12600-24F00

$272.72

PIN

12615-24F00

$10.50

GEAR, STARTER IDLE NO.2 (NT:16/14)

12612-24F00

$64.53

PIN

12151-05200

$12.50

WASHER

09164-14008

$2.01

CLUTCH SET, STARTER | MODEL K4

12600-24850

$388.57

CLUTCH, STARTER ONE WAY | MODEL K5/K6/K7; Includes Item(s) 7 This part replaces 12600-24860.

12600-24861

$388.57

BEARING

09263-28031

$40.47

WASHER

08211-10285

$3.49

WASHER

08211-20403

$4.32

BOLT (10X23)

09103-10189

$4.04
