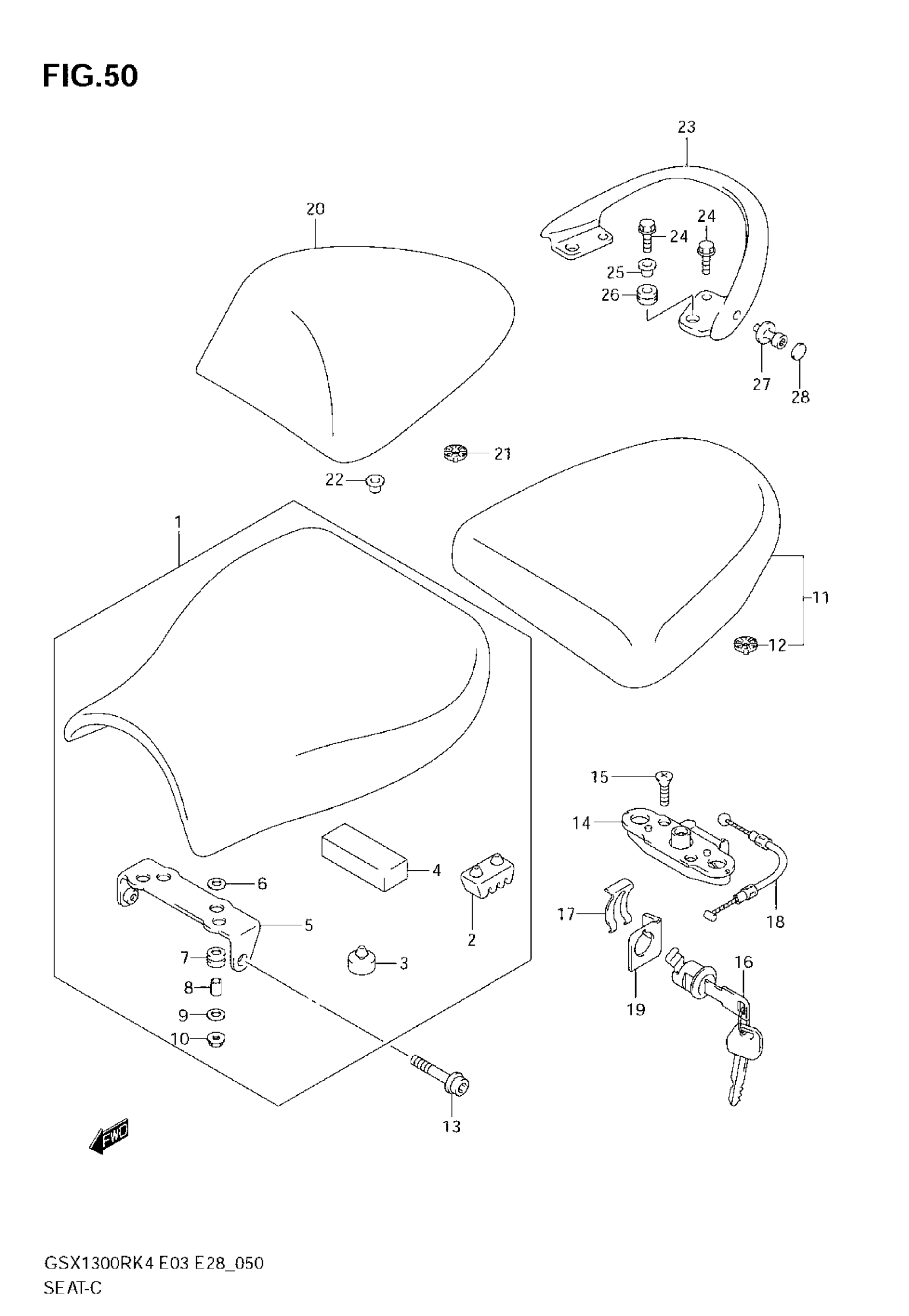

Suzuki GSX1300R (2007) SEAT (MODEL K4) Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 10 This part replaces 45100-24F10-W05.

45100-24F12-W05

$187.98

2

CUSHION

45149-45330

$3.89

3

CUSHION

09321-10011

$2.91

4

CUSHION

45117-47D00

Unavailable

5

BRACKET, SEAT FRONT RH

45116-24F10

$18.53

6

WASHER

09160-06066

$1.89

7

CUSHION,SEAT This part replaces 45149-24F01.

45149-24F02

$11.88

8

SPACER (6.5X10X10)

09180-06310

$1.91

9

WASHER, SEAT

45117-24F00

$6.05

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

SEAT ASSY,PILLI | Includes Item(s) 12 This part replaces 45300-24F10-W05.

45300-24F11-W05

$250.48

12

CUSHION

45213-31300

$2.81

13

BOLT, SEAT FRONT (6X40)

45191-24F00

$5.11

14

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

15

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

16

LOCK ASSY, SEAT

95700-14810

$107.30

17

PLATE, SEAT LOCK

45289-11F00

$6.20

18

CABLE, SEAT LOCK

45280-24F00

$14.22

19

GUIDE, CABLE

45288-14F00

$5.36

20

BOX COMP,SEAT T | GSX1300RK4 FOR NY4 This part replaces 45550-24F10-YAT.

45550-24F10

Unavailable

20

BOX, SEAT TAIL (SILVER) | GSX1300RK4 FOR NY2

45550-24F10-YD8

Unavailable

20

BOX, SEAT TAIL (BLUE) | GSX1300RK4 FOR NY3

45550-24F10-YBA

Unavailable

20

BOX, SEAT TAIL (RED) | GSX1300RZK4; Includes Item(s) 21

45550-24F10-YU7

Unavailable

21

CUSHION

45213-31300

$2.81

22

.WASHER,FRAME COVER This part replaces 47190-24F00.

47190-24F01

$9.92

23

HANDLE, PILLION RIDER (BLACK) | GSX1300RK4

46211-24F01-Y7L

$326.10

23

HANDLE, PILLION RIDER (BLACK) | GSX1300RZK4

46211-24F01-019

Unavailable

24

BOLT

09103-08373

$3.23

25

WASHER, PILLION RIDER HDL FR This part replaces 47190-24F10.

47190-24F11

$12.10

26

CUSHION, PILLION RIDER HDL

46217-24F00

$5.84

27

HOOK, HANDLE

46212-24F11

$32.36

28

CAP

09250-05009

$2.19
