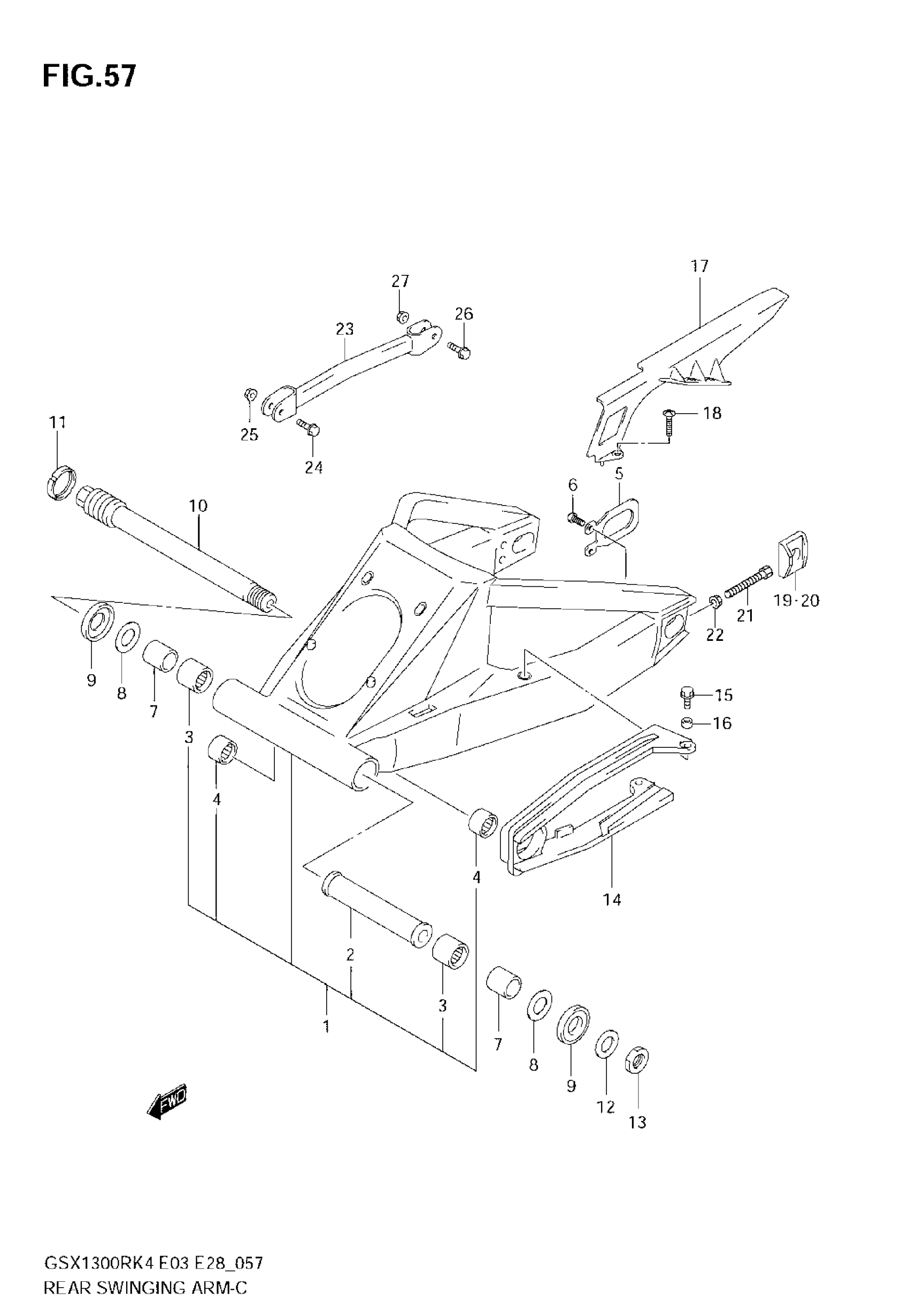

Suzuki GSX1300R (2007) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | GSX1300RK4/K5/K6

61000-24F30

Unavailable

1

SWINGING ARM ASSY, REAR | GSX1300RZK4

61000-24F20

Unavailable

1

SWINGING ARM ASSY, REAR | GSX1300RZK5/RZK6/RZK7; Includes Item(s) 2 - 4

61000-24F20-YAP

Unavailable

2

SPACER, CENTER This part replaces 61281-33E10.

61281-33E20

$56.48

3

BEARING, PIVOT (30X40X25)

09263-30040

$38.65

4

BEARING, ROD (20X27X23.5)

09263-20071

$25.92

5

PLATE, BRACKET

61124-33E00

$6.85

6

SCREW | GSX1300RK4/K5/K6 This part replaces 02142-06163.

02142-0616A

$1.49

6

SCREW | GSX1300RZK4/RZK5/RZK6/RZK7

09125-06073

$1.84

7

SPACER,RR SWGARM PIVOT BEARIN This part replaces 61251-17E10.

61251-17E20

$13.12

8

WASHER

08211-25481

$5.64

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$9.05

10

SHAFT,RR SWINGINGARM PIVOT

61211-16G00

$181.83

11

NUT, PIVOT SHAFT

61214-40C31

$56.90

12

WASHER

09160-25070

$4.77

13

NUT This part replaces 09159-25001.

09159-25003

$31.85

14

BUFFER This part replaces 61273-24F00.

61273-24F01

$48.38

15

BOLT (6X20)

09116-06152

$2.36

16

SPACER (6.5X9X5)

09180-06306

$2.03

17

CASE, CHAIN

61311-33E01

$93.87

18

SCREW (6X16)

09139-06083

$2.26

19

ADJUSTER, CHAIN RH

61446-33E10

$53.98

20

ADJUSTER, CHAIN LH

61445-33E00

$53.73

21

BOLT (8X50)

09100-08287

$3.10

22

NUT | MODEL K4/K5/K6 This part replaces 08316-10083.

08316-1008B

$2.66

22

NUT | MODEL K7

08316-1008B

$2.66

23

TORQUELINK, REAR

64310-24F00

$110.75

24

BOLT, FRONT (8X35.5)

09111-08085

$6.47

25

NUT | MODEL K4/K5/K6

08319-31087

$2.32

25

NUT | MODEL K7

08319-3108A

$2.32

26

BOLT, REAR (10X37)

09103-10019

$2.63

27

NUT | MODEL K4/K5/K6

08319-31107

$2.73

27

NUT | MODEL K7

08319-3110A

$2.73
