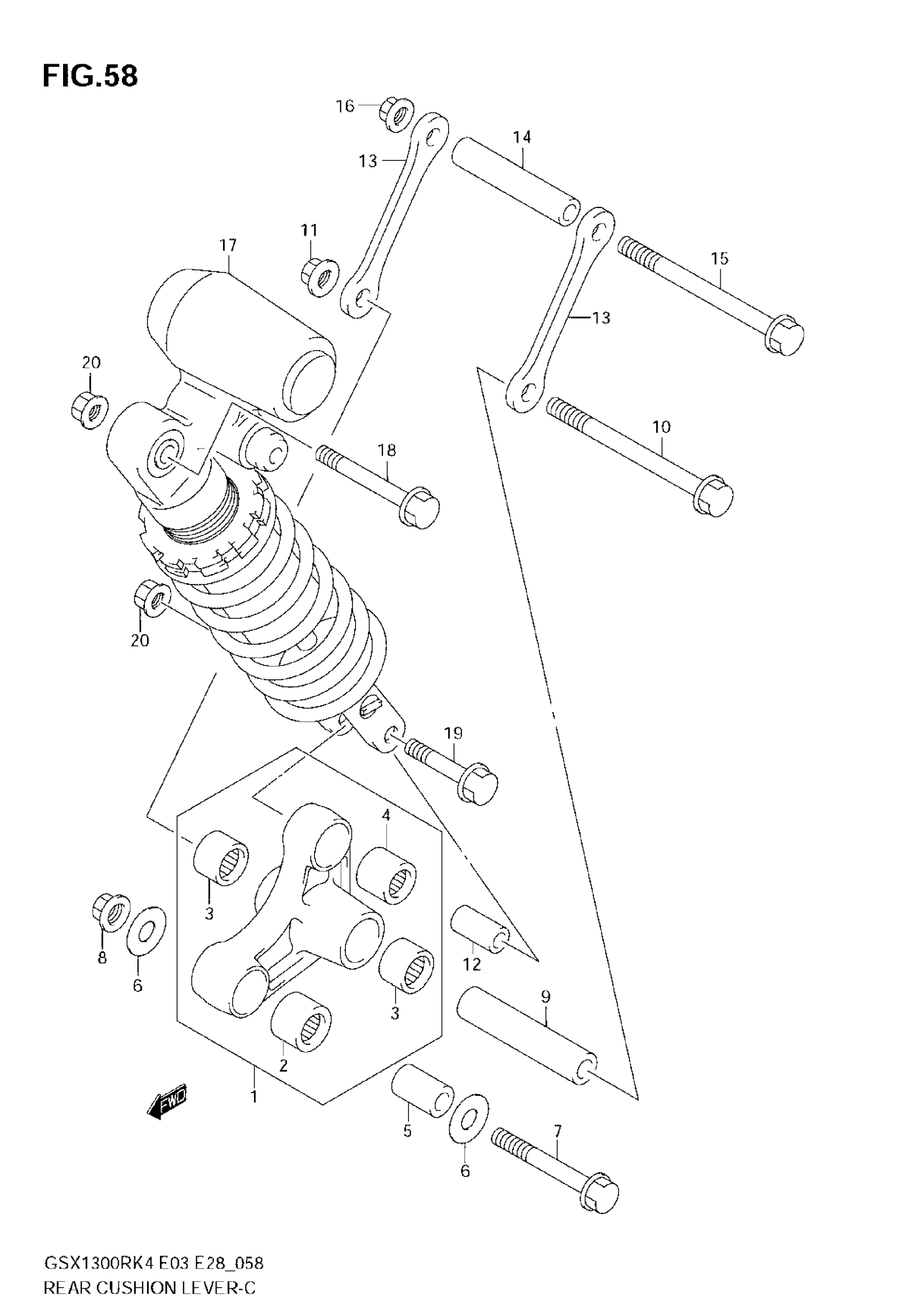

Suzuki GSX1300R (2007) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-24810

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

BEARING, CENTER (20X27X23.5)

09263-20071

$25.92

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

WASHER

08211-12301

$2.03

7

BOLT, RR CUSHION LEVER FR

62658-19F00

$11.95

8

NUT | MODEL K4/K5/K6 This part replaces 08319-31128.

08319-3112A

$3.76

8

NUT | MODEL K7

08319-3112A

$3.76

9

SPACER, CENTER (12X20X94)

62626-24F00

$26.43

10

BOLT, CENTER (12X124)

62621-33D00

$28.62

11

NUT | MODEL K4/K5/K6 This part replaces 08319-31128.

08319-3112A

$3.76

11

NUT | MODEL K7

08319-3112A

$3.76

12

SPACER, REAR (10X17X30)

62684-40A10

$12.15

13

ROD,RR CUSHION

62641-24F00

$56.48

14

SPACER, ROD (12X20X94)

62626-24F00

$26.43

15

BOLT, ROD (12X124)

62621-33D00

$28.62

16

NUT | MODEL K4/K5/K6 This part replaces 08319-31128.

08319-3112A

$3.76

16

NUT | MODEL K7

08319-3112A

$3.76

17

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-24F40

Unavailable

17

ABSORBER ASSY, REAR SHOCK | E28

62100-24F30

Unavailable

18

BOLT, UPPER (10X70)

09103-10033

$6.17

19

BOLT, LOWER (10X58)

09103-10027

$4.60

20

NUT | MODEL K4/K5/K6

08319-31107

$2.73

20

NUT | MODEL K7

08319-3110A

$2.73
