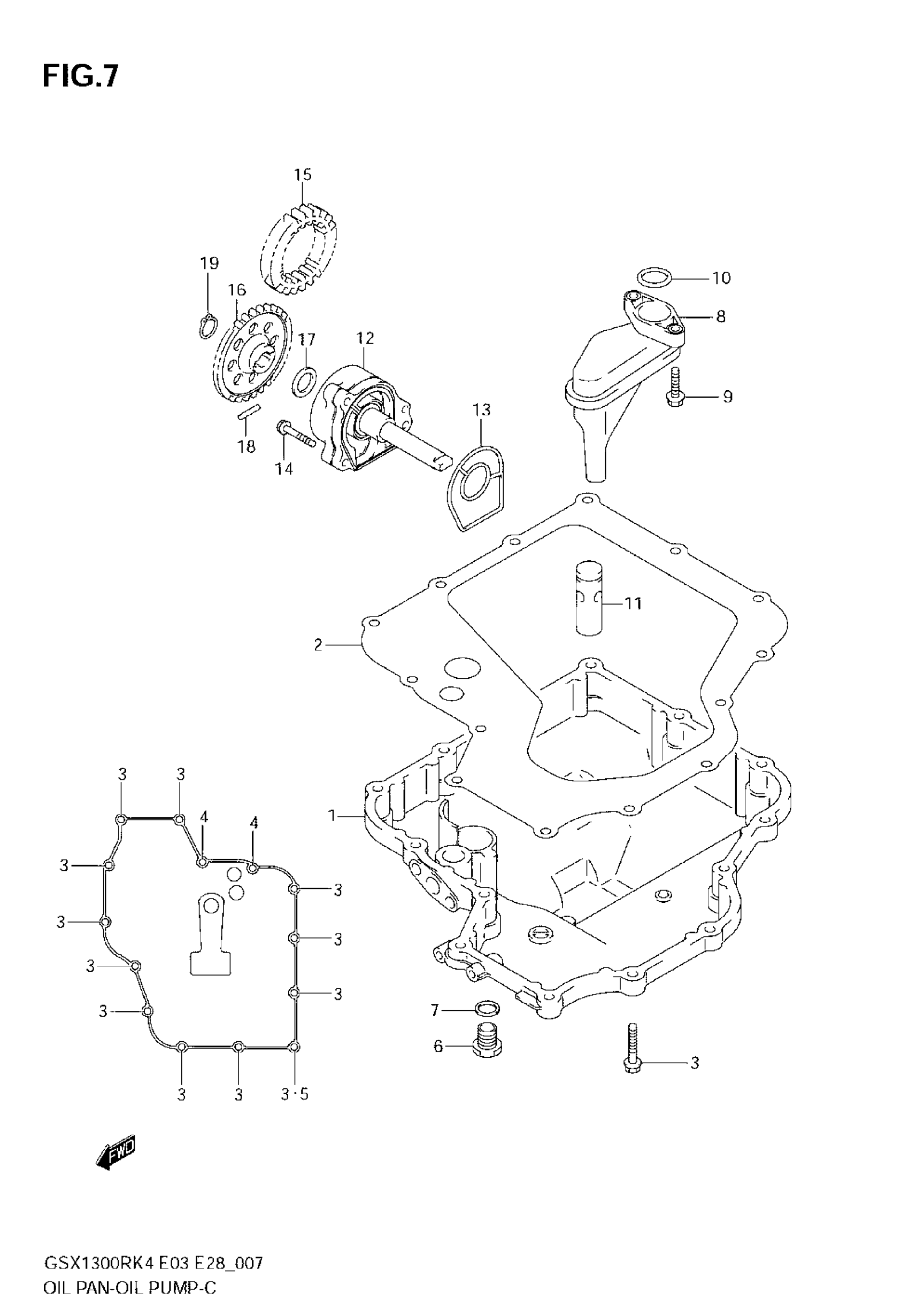

Suzuki GSX1300R (2007) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN,OIL | MODEL K4/K5/K6 This part replaces 11511-24F00.

11511-24F10

$239.45

1

PAN,OIL | MODEL K7 This part replaces 11511-24F01.

11511-24F10

$239.45

2

GASKET, OIL PAN This part replaces 11489-24F01.

11489-24F10

$17.54

3

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

PLUG, OIL DRAIN

09247-14036

$6.17

7

GASKET

09168-14002

$2.26

8

STRAINER,ENG OIL This part replaces 16520-24F00.

16520-24F01

$30.32

9

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

10

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

11

VALVE ASSY, OIL RELIEF

16440-24F00

$50.04

12

PUMP ASSY,ENGINE OIL

16400-24F01

$189.30

13

O RING,OIL PUMP

16491-24F00

$6.93

14

BOLT, FINAL GEAR CASE This part replaces 01547-06303.

01547-0630B

$2.73

15

GEAR,OIL PUMP DRIVE (NT:34)

16321-33E10

$68.12

16

GEAR,OIL PUMP DRIVEN (NT:37)

16331-33E00

$74.65

17

WASHER

09181-12158

$2.26

18

PIN

09261-05006

$1.49

19

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78
