Description

Price

1

COOLER ASSY, OIL

16600-24F10

Unavailable

2

BOLT (6X20)

09116-06167

$2.19

3

SPACER

09180-06310

$1.91

4

CUSHION | MODEL K4

09320-10501

$6.23

4

CUSHION | MODEL K5/K6/K7

09320-10055

$4.50

5

BRACKET, OIL COOLER

16640-24F00

$11.18

6

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

7

HOSE, OIL COOLER RH

16460-24F01

$179.12

8

HOSE, OIL COOLER LH

16470-24F02

$179.12

9

O RING (D:2.4,ID:11.8)

09280-12012

$4.64

10

BOLT, RH (6X16)

09106-06096

$3.20

11

BOLT, LH (6X20)

09106-06097

$3.20

12

GUARD, OIL COOLER | Includes Item(s) 13 - 14

16650-24F01

Unavailable

13

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

$2.92

14

.HOSE (3X5X600) | L:600!40 This part replaces 09352-30503-600.

09352-30504-600

$4.91

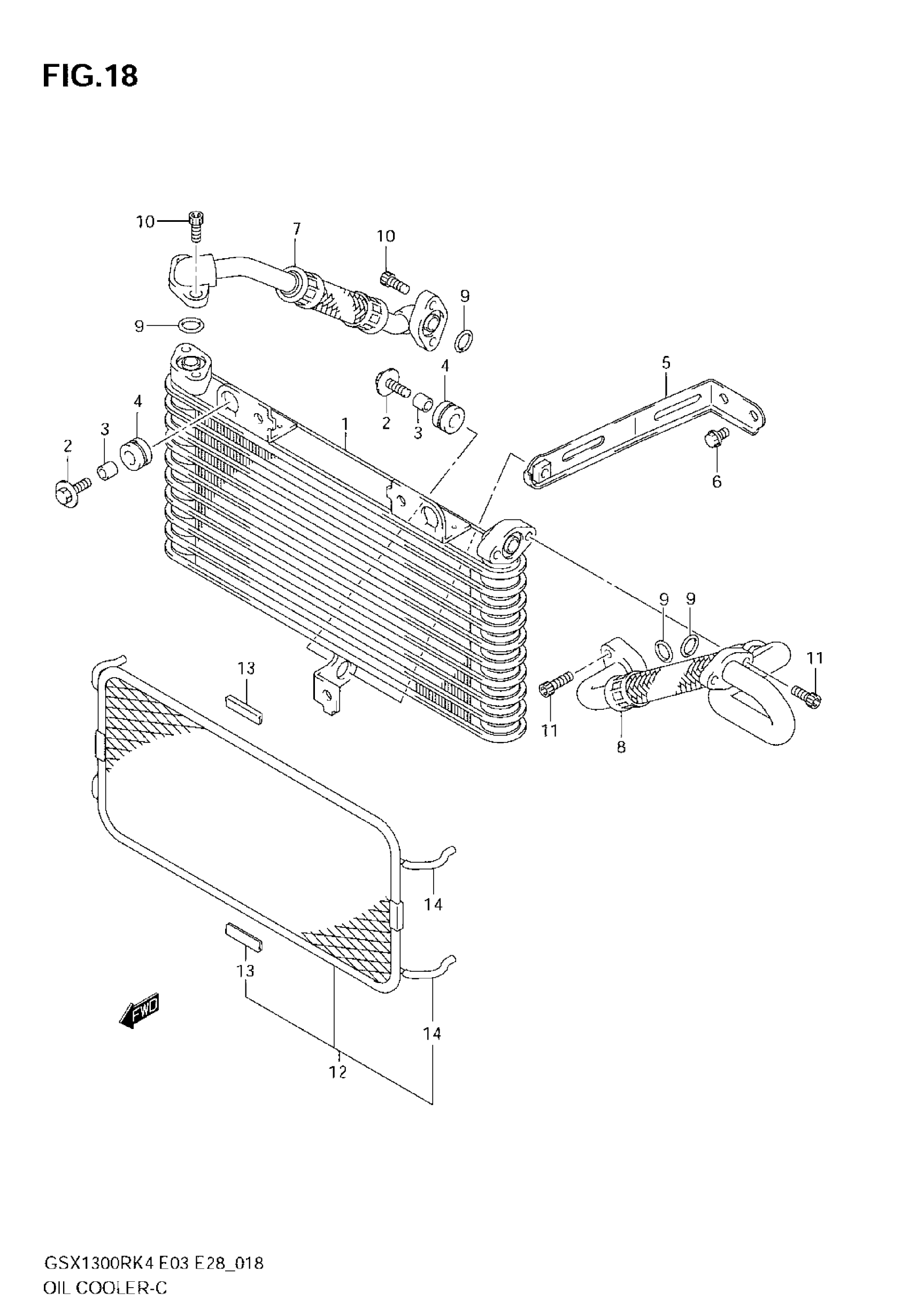

Suzuki GSX1300R (2007) OIL COOLER Diagram
