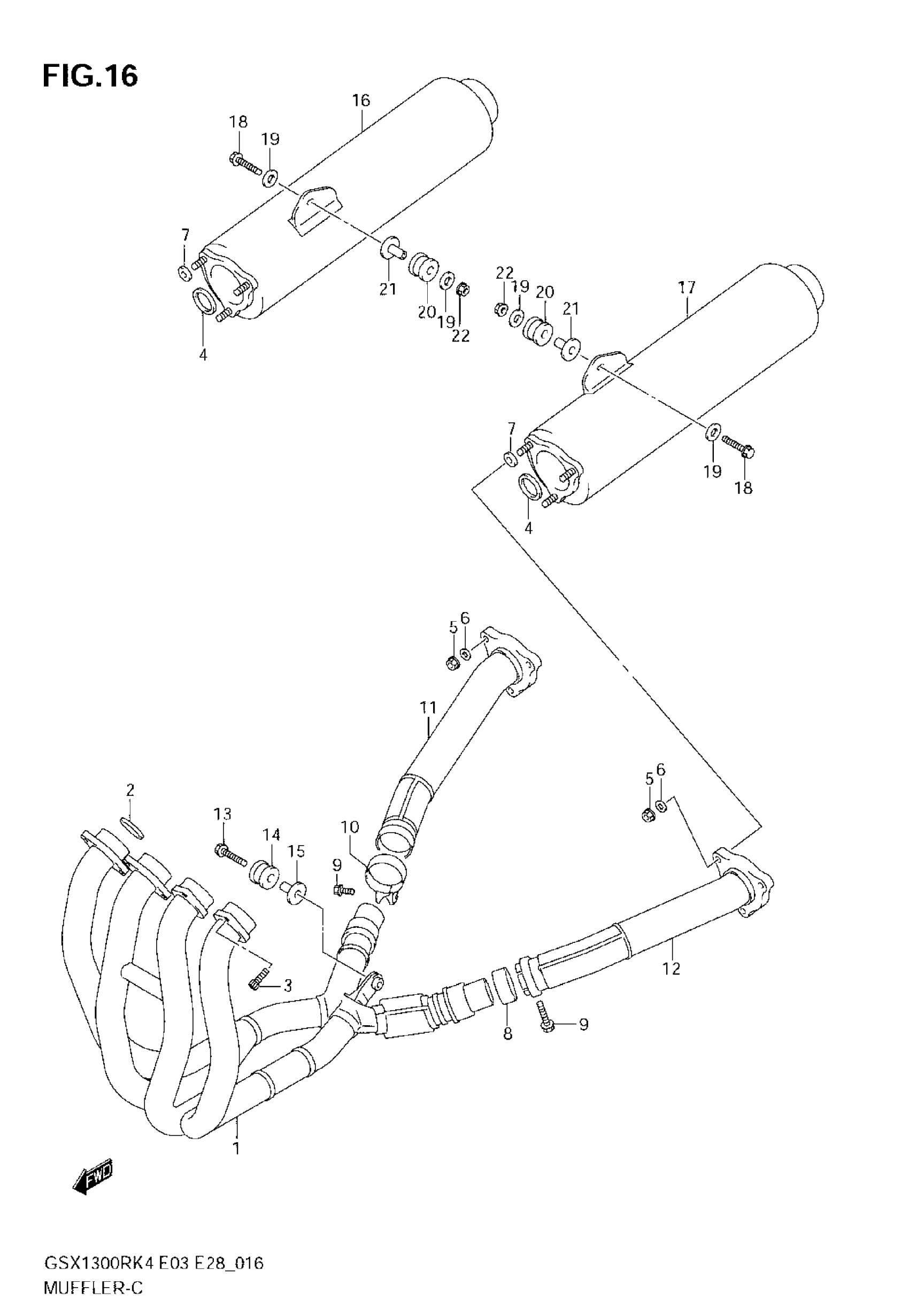

Suzuki GSX1300R (2007) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-24F40

Unavailable

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

GASKET

14181-33E00

$8.17

5

NUT

09159-08116

$9.00

6

WASHER (8.5X18X1.6)

09160-08059

$1.68

7

O RING (D:1.9,ID:7.8)

09280-08012

$3.68

8

CONNECTOR,MUFFLER This part replaces 14771-24F00.

14771-24F01

$31.05

9

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

10

CLAMP, CONNECTOR MUFFLER RH

14459-24F30

$21.67

11

PIPE, JOINT RH

14230-24F40

Unavailable

12

PIPE, JOINT LH

14240-24F30

Unavailable

13

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

14

CUSHION

09320-12067

$15.83

15

SPACER

09180-08152

$5.83

16

BODY, MUFFLER RH

14310-24F00-H01

Unavailable

17

BODY, MUFFLER LH

14340-24F00-H01

$957.27

18

BOLT

09103-08358

$3.42

19

WASHER (8.5X28X1.5)

09160-08142

$2.76

20

CUSHION

09320-12049

$10.68

21

SPACER

09180-08156

$6.70

22

NUT

09159-08034

$1.62
