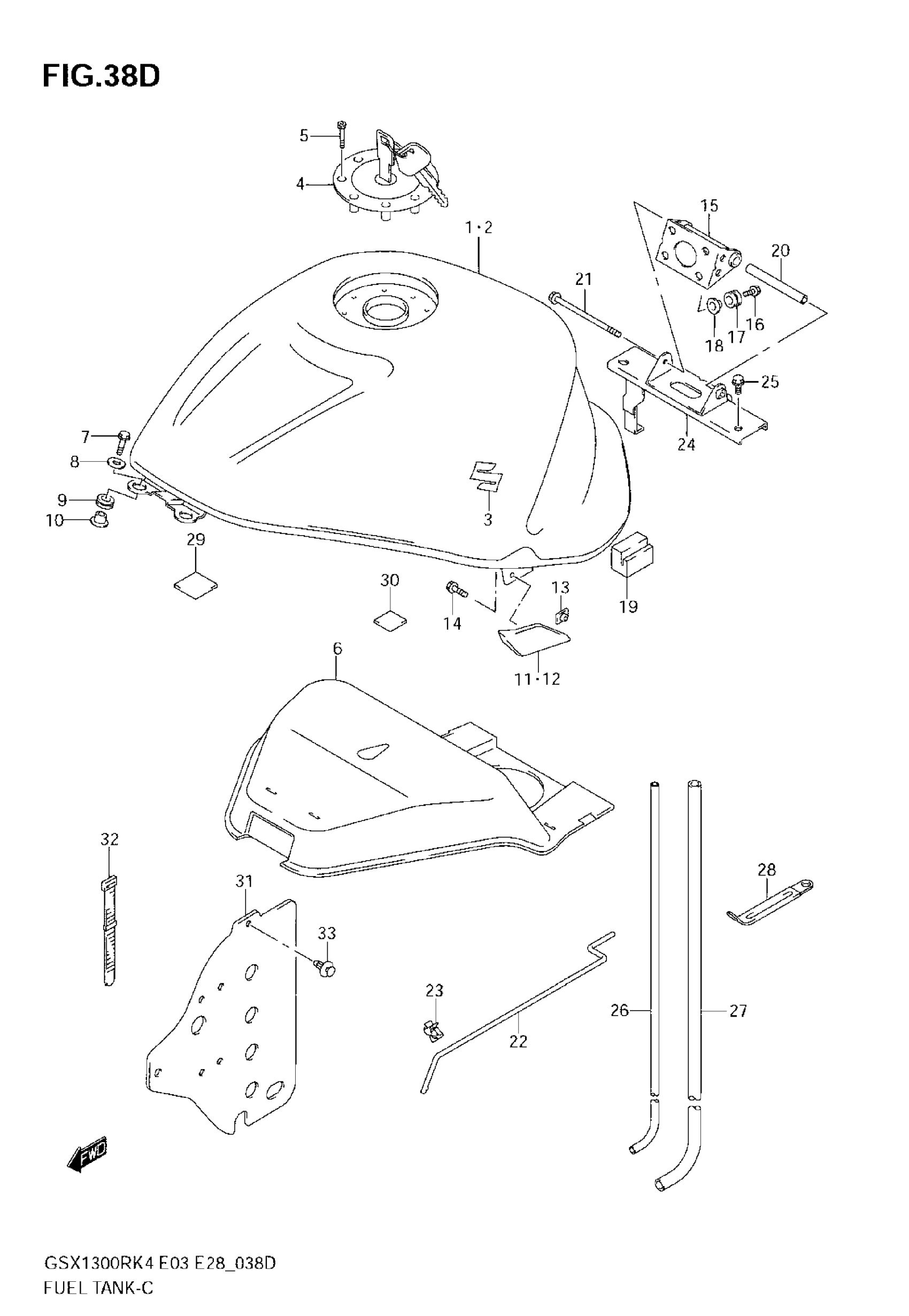

Suzuki GSX1300R (2007) FUEL TANK (GSX1300RZK7) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-24FK0-YAY

Unavailable

1

TANK ASSY, FUEL (RED) | E3,E28

44100-24FK0-YHL

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3,E28

44100-24FK0-YKY

Unavailable

2

TANK ASSY, FUEL (BLACK) | E33

44100-24FL0-YAY

Unavailable

2

TANK ASSY, FUEL (RED) | E33

44100-24FL0-YHL

Unavailable

2

TANK ASSY, FUEL (BLUE) | E33

44100-24FL0-YKY

Unavailable

3

EMBLEM

68111-18G20

$32.30

4

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

4

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

5

BOLT

09106-05017

$2.83

6

SHIELD, HEAT

44191-24F10

Unavailable

7

BOLT, FRONT

09139-06029

$5.36

8

WASHER

09160-06036

$2.28

9

CUSHION

09320-09009

$4.64

10

SPACER

09169-06062

$2.50

11

COVER, SIDE RH

44533-24F00

$18.50

12

COVER, SIDE LH

44543-24F00

$18.50

13

PLATE, SIDE

44540-24F10

$12.40

14

SCREW

02142-0610B

$2.15

15

BRACKET, TANK

44560-24F01

Unavailable

16

BOLT

09116-06152

$2.36

17

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

18

SPACER

09169-06062

$2.50

19

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

20

SPACER

44561-33E10

Unavailable

21

BOLT

01550-0895B

Unavailable

22

STAY

44574-33E01

$15.45

23

CLIP

09403-05310

$2.66

24

BRACKET, REAR

44550-24F00

Unavailable

25

BOLT, LOWER

01550-0812B

$2.73

26

HOSE,FUEL TANK This part replaces 44423-24F00.

44423-24F01

$10.22

27

HOSE(7X11X600) | L:600!500 This part replaces 09352-70113-600.

09352-70119-600

$10.40

28

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

29

CUSHION, FRONT

44534-24F00

$3.78

30

CUSHION This part replaces 44535-24F00.

44534-24F00

$3.78

31

SHEET, HEAT SHIELD RUBBER

44271-24F00

Unavailable

32

CLAMP

09407-18402

$2.19

33

CLIP (BLACK)

09409-06322-5PK

$3.10
