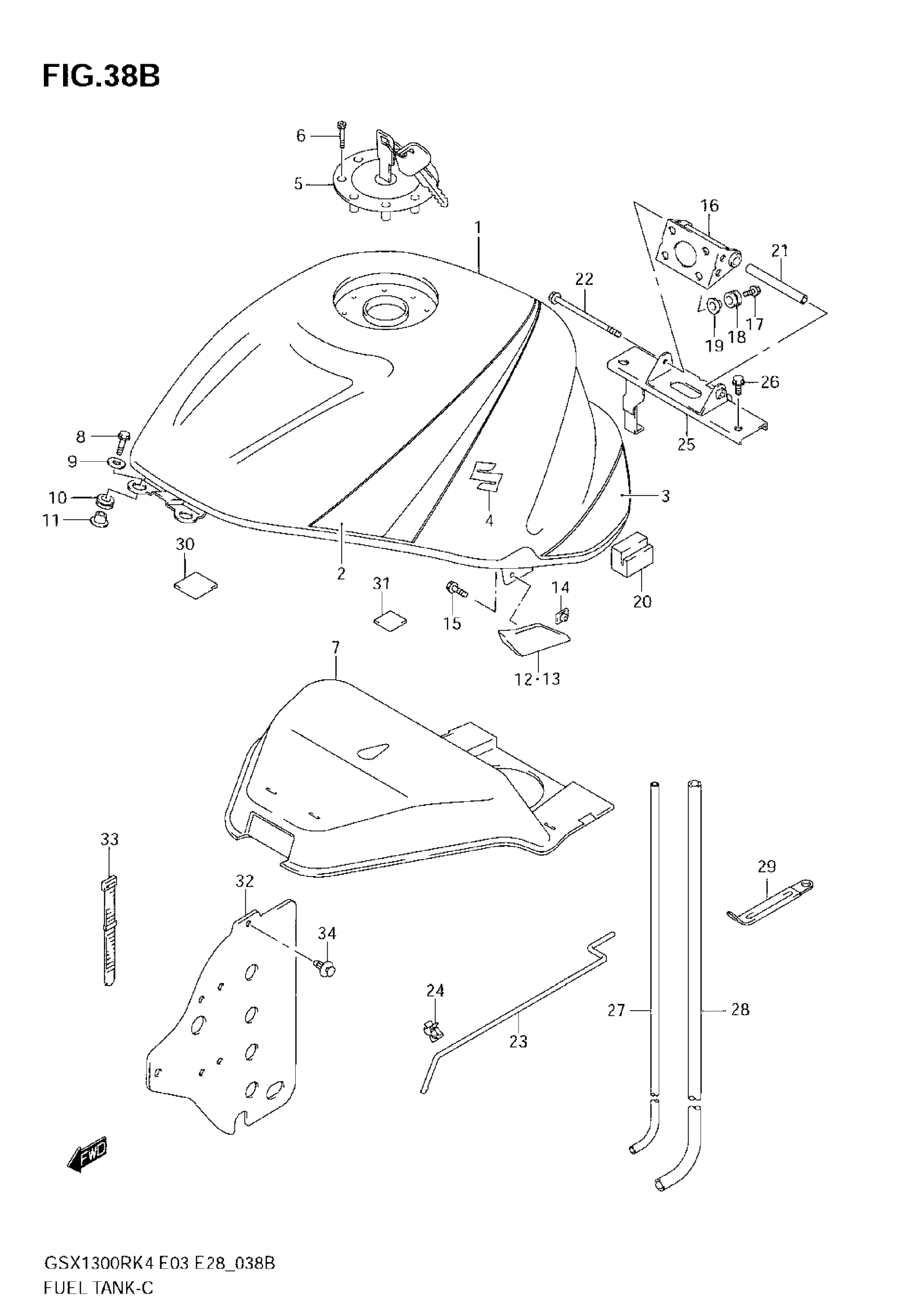

Suzuki GSX1300R (2007) FUEL TANK (GSX1300RK6) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | E3,E28 FOR CZV

49100-24F20-YKZ

Unavailable

1

TANK ASSY, FUEL (RED) | E3,E28 FOR CZW

49100-24F20-YHL

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3,E28 FOR CZY

49100-24F20-YAY

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33 FOR CZV

49100-24F40-YKZ

Unavailable

1

TANK ASSY, FUEL (RED) | E33 FOR CZW

49100-24F40-YHL

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33 FOR CZY; Includes Item(s) 2 - 3

49100-24F40-YAY

Unavailable

2

TAPE SET, UPPER | FOR YKZ

68110-24F30-DAJ

Unavailable

2

TAPE SET, UPPER | FOR YHL

68110-24F30-DAK

Unavailable

2

TAPE SET, UPPER | FOR YAY

68110-24F30-DAL

Unavailable

3

TAPE SET, LOWER | FOR YKZ

68110-24F40-CZV

Unavailable

3

TAPE SET, LOWER | FOR YHL

68110-24F40-CZW

Unavailable

3

TAPE SET, LOWER | FOR YAY

68110-24F40-CZY

Unavailable

4

EMBLEM

68111-18G20

$32.30

5

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

5

CAP SET,FUEL TA | E33 This part replaces 44200-33890.

44200-33891

$252.70

6

BOLT

09106-05017

$2.83

7

SHIELD, HEAT

44191-24F10

Unavailable

8

BOLT, FRONT

09139-06029

$5.36

9

WASHER

09160-06036

$2.28

10

CUSHION

09320-09009

$4.64

11

SPACER

09169-06062

$2.50

12

COVER, SIDE RH

44533-24F00

$18.50

13

COVER, SIDE LH

44543-24F00

$18.50

14

PLATE, SIDE

44540-24F10

$12.40

15

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

16

BRACKET, TANK

44560-24F01

Unavailable

17

BOLT

09116-06152

$2.36

18

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

19

SPACER

09169-06062

$2.50

20

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

21

SPACER

44561-33E10

Unavailable

22

BOLT This part replaces 01550-08953.

01550-0895A

$4.60

23

STAY

44574-33E01

$15.45

24

CLIP

09403-05310

$2.66

25

BRACKET, REAR

44550-24F00

Unavailable

26

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

27

HOSE,FUEL TANK This part replaces 44423-24F00.

44423-24F01

$10.22

28

HOSE(7X11X600) | L:600!500 This part replaces 09352-70113-600.

09352-70119-600

$10.40

29

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

30

CUSHION, FRONT

44534-24F00

$3.78

31

CUSHION This part replaces 44535-24F00.

44534-24F00

$3.78

32

SHEET, HEAT SHIELD RUBBER

44271-24F00

Unavailable

33

CLAMP

09407-18402

$2.19

34

CLIP (BLACK)

09409-06322-5PK

$3.10
