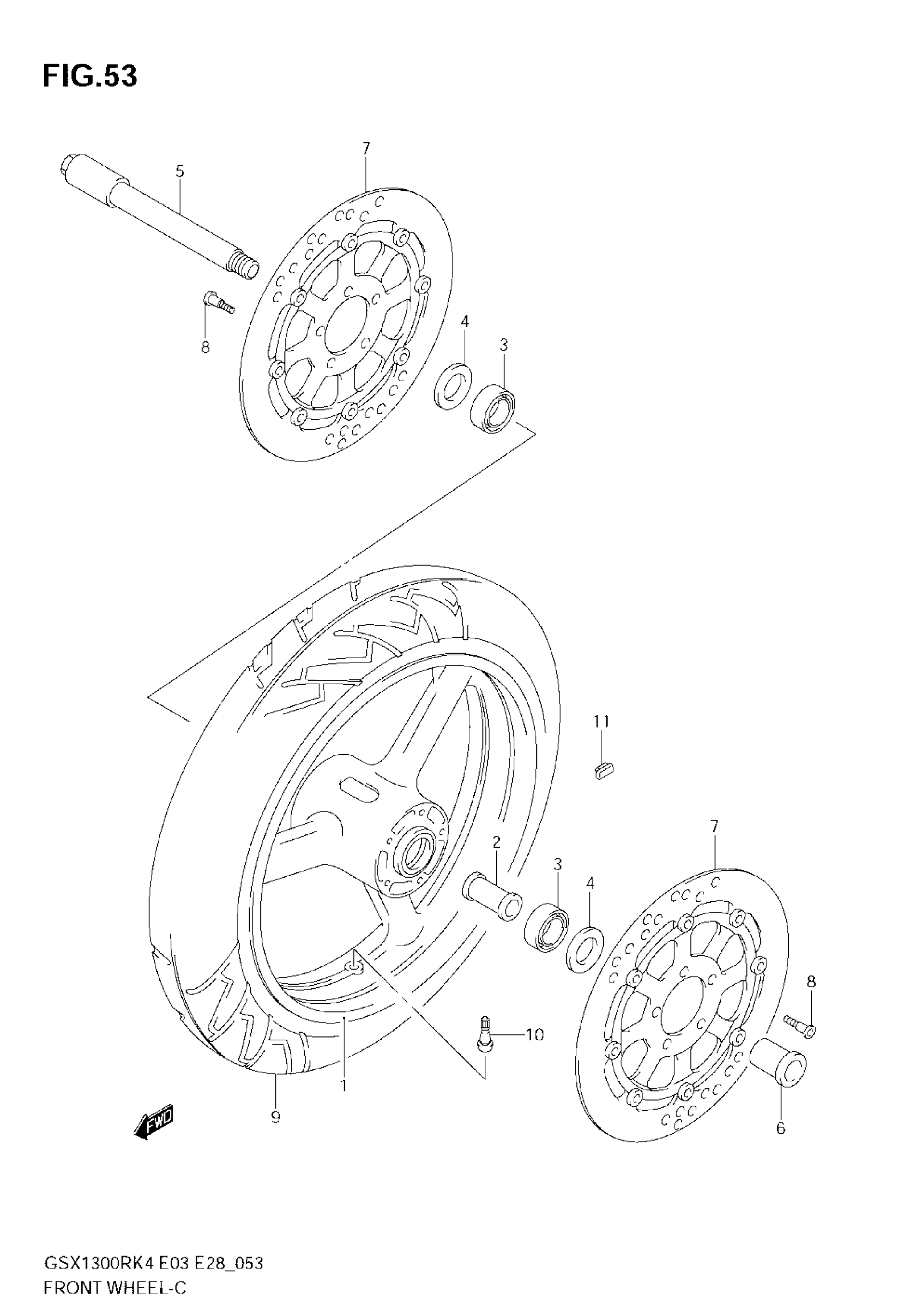

Suzuki GSX1300R (2007) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT (17XMT3.50) (BLACK) | GSX1300RK4/K5/K6 GSX1300RZK4 E28 GSX1300RZK7

54111-33E11-019

$1,015.88

1

WHEEL, FRONT (17M/CXMT3.50) | GSX1300RZK4 E3,E28,E33 GSX1300RZK5 E3,E28,E33

54111-33E30-BAP

Unavailable

1

WHEEL, FRONT (17XMT3.50) (SILVER) | GSX1300RZK6

54111-33E11-Y6G

Unavailable

2

SPACER, HUB BEARING

54731-33E10

$41.11

3

BEARING (25X52X15)

09262-25061

$33.12

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

AXLE, FRONT

54711-42F00

$156.07

6

NUT, AXLE

54712-33E00

$58.96

7

DISC,FRONT BRAK This part replaces 59210-33EA0.

59210-33EA1

$601.23

8

BOLT (8X33)

09106-08148

$4.80

9

TIRE, FRONT, 120/70 ZR17 (58W) (BRIDGESTONE) | BT56F RADIAL J

55110-24F00

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11

BALANCER (10G) | MODEL K4

55411-00A00

$1.49

11

BALANCER, WHEEL NO.2 | MODEL K4 This part replaces 55412-00A01.

55412-17G00

$7.05

11

BALANCER, WHEEL, NO.1 | MODEL K5/K6/K7

55411-17G00

$7.63

11

BALANCER, WHEEL, NO.2 | MODEL K5/K6/K7

55412-17G00

$7.05

11

BALANCER, WHEEL, NO.3 | MODEL K5/K6/K7

55413-17G00

Unavailable
