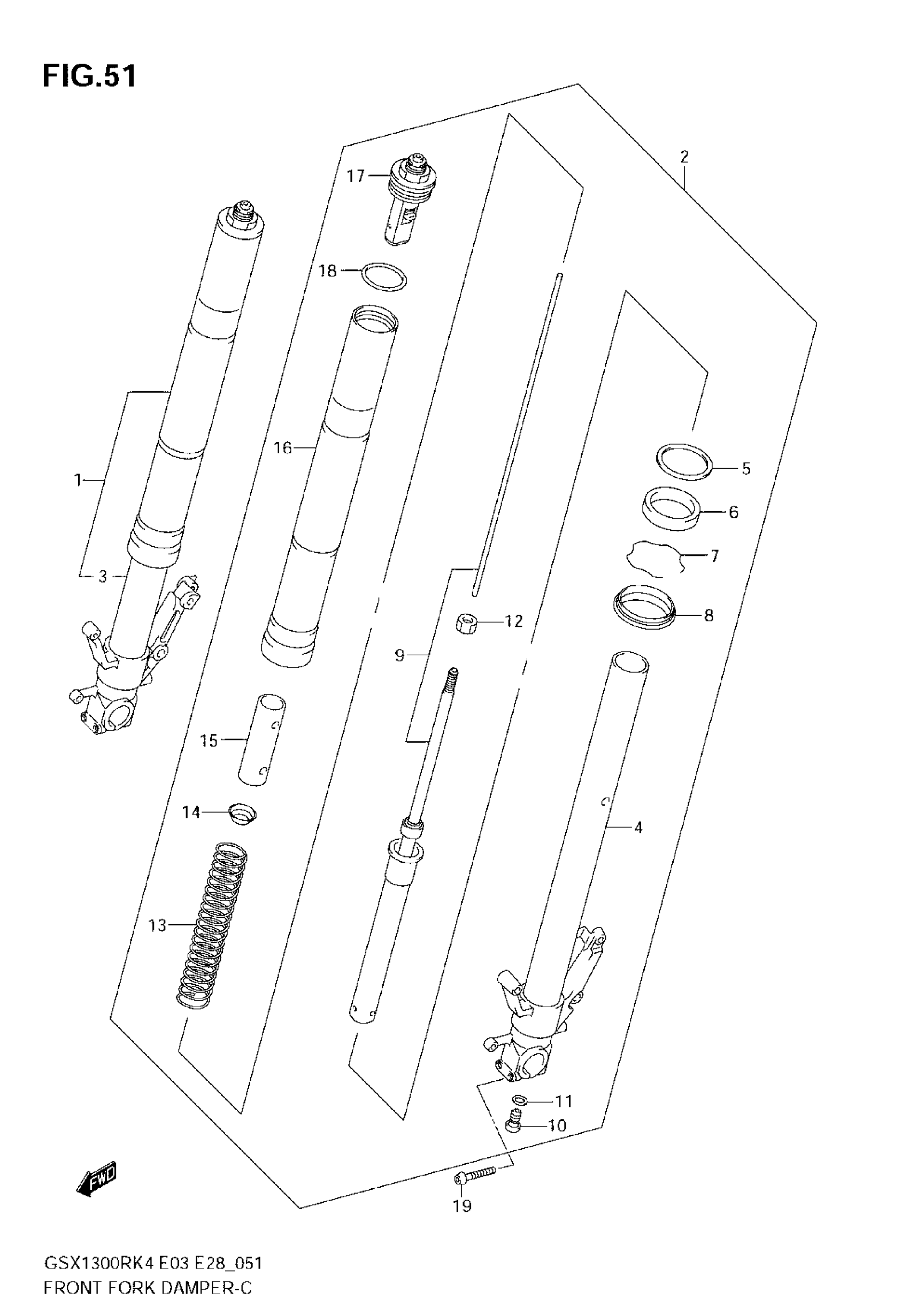

Suzuki GSX1300R (2007) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR This part replaces 51103-24F30.

51103-24F31

$1,742.07

2

DAMPER ASSY,FRT | Includes Item(s) 3 - 18 This part replaces 51104-24F30.

51104-24F31

Unavailable

3

TUBE,INNER,R(BL This part replaces 51110-24F30.

51110-24F31

$800.92

4

TUBE,INNER,L(BL This part replaces 51120-24F30.

51120-24F31

$741.58

5

WASHER

51158-14200

$5.05

6

SEAL, OIL

51153-02FA0

$25.07

7

RING, STOPPER

51156-14200

$5.05

8

SEAL, DUST

51173-02FA0

$26.58

9

CYLINDER

51146-24F00

Unavailable

10

BOLT

51147-40C00

$22.74

11

GASKET

51148-40300

$2.03

12

NUT

51129-24F00

Unavailable

13

SPRING, FRONT

51171-24F00

Unavailable

14

GUIDE, SPRING

51158-24F00

$8.56

15

SPACER, SPRING

51176-24F00

Unavailable

16

TUBE, OUTER (BRONZE)

51130-24F20

Unavailable

17

CYLINDER This part replaces 51351-24F00.

51351-24F01

Unavailable

18

..O RING

62278-14100

$4.03

19

BOLT

51166-24F30

$10.95
