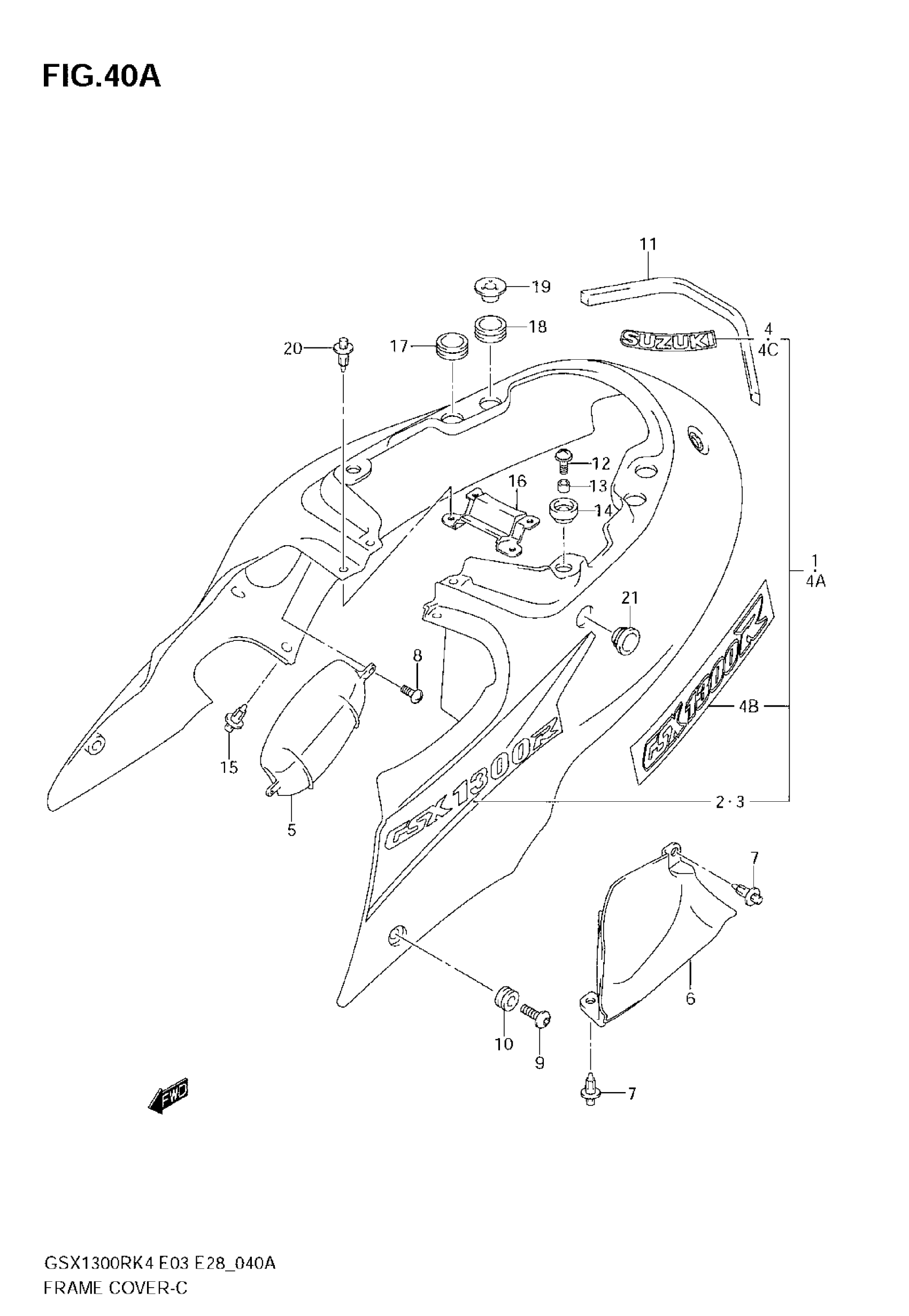

Suzuki GSX1300R (2007) FRAME COVER (MODEL K5) Diagram

#

Description
Price

1

COVER,FRAME | GSX1300R FOR NY2 This part replaces 47110-24F80-YD8.

47110-24F81-YD8

Unavailable

1

COVER, FRAME (RED) | GSX1300R FOR BPJ

47110-24F80-YU7

Unavailable

1

COVER, FRAME (BLACK) | GSX1300R FOR BPK; Includes Item(s) 2 - 4

47110-24F80-YAY

Unavailable

2

TAPE, RH | GSX1300R FOR YD8

68135-24F10-BUW

Unavailable

2

TAPE, RH | GSX1300R FOR YU7

68135-24F10-BUY

Unavailable

2

TAPE, RH | GSX1300R FOR YAY

68135-24F10-BUZ

Unavailable

3

TAPE, LH | GSX1300R FOR YD8

68145-24F10-BUW

Unavailable

3

TAPE, LH | GSX1300R FOR YU7

68145-24F10-BUY

Unavailable

3

TAPE, LH | GSX1300R FOR YAY

68145-24F10-BUZ

Unavailable

4

EMBLEM,"SUZUKI" | GSX1300R FOR YD8 This part replaces 68641-19F00-17U.

68641-19F01-17U

$9.15

4

.EMBLEM,"SUZUKI" (BLACK) | GSX1300R FOR YU7 This part replaces 68641-19F00-019.

68281-24F11-019

$10.89

4

EMBLEM,"SUZUKI" | GSX1300R FOR YAY This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

4A

COVER,FRAME PRI | GSX1300RZ; Includes Item(s) 4B - 4C This part replaces 47110-24F50-YHF.

47111-24F01

Unavailable

4B

EMBLEM,FRAME CO | GSX1300RZ This part replaces 68131-24F00-GCL.

68131-24F01-GCL

Unavailable

4C

EMBLEM,"SUZUKI" | GSX1300RZ This part replaces 68641-19F00-17U.

68641-19F01-17U

$9.15

5

COVER, FRAME HEAD RH

47511-24F10

Unavailable

6

COVER, FRAME HEAD LH

47521-24F00

$38.72

7

CLIP, LH (BLACK)

09409-06314-5PK

$2.78

8

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

9

SCREW This part replaces 09139-06087.

09139-06126

$4.04

10

CUSHION

09320-09016

$1.97

11

CUSHION, REAR

47161-27E00

$10.32

12

SCREW, UPPER

09136-06105

$1.97

13

SPACER

09180-06288

$2.06

14

CUSHION

09320-10045

$3.76

15

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

16

COVER,FRAME CEN | GSX1300R FOR NY2 This part replaces 47311-24F00-YD8.

47311-24F00

$43.78

16

COVER, CENTER (RED) | GSX1300R FOR BPJ

47311-24F00-YU7

Unavailable

16

COVER, CENTER (BLACK) | GSX1300R FOR BPK

47311-24F00-YAY

Unavailable

16

COVER, CENTER (GRAY) | GSX1300RZ

47311-24F00-YHF

Unavailable

17

CUSHION, UPPER FRONT

47191-24F00

$5.17

18

CUSHION, PILLION HANDLE REAR

47191-24F30

$5.36

19

WASHER,FRAME COVER This part replaces 47190-24F20.

47190-24F21

$9.94

20

CLIP (BLACK)

09409-06314-5PK

$2.78

21

CUSHION, CENTER

47191-24F20

$7.22
