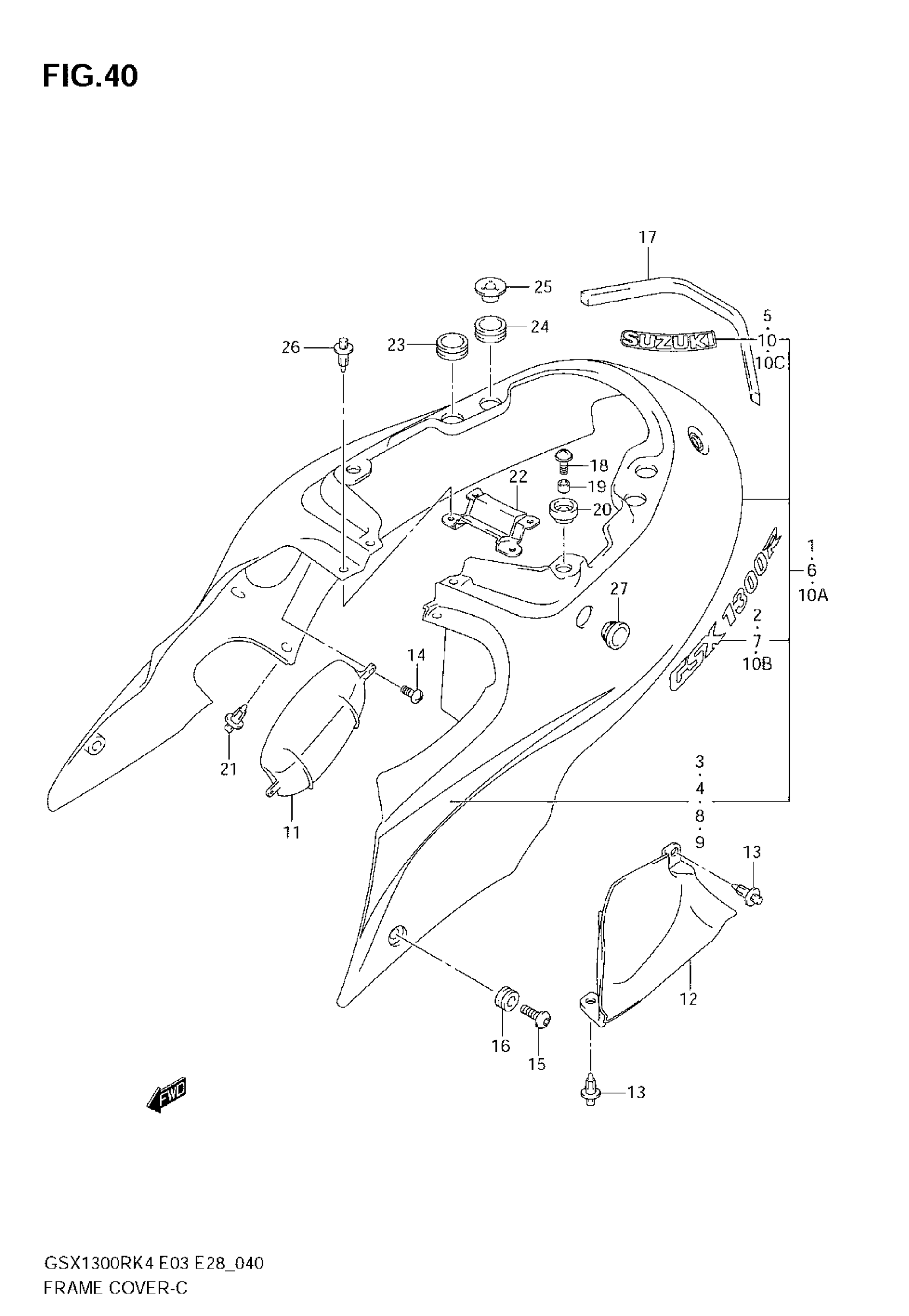

Suzuki GSX1300R (2007) FRAME COVER (MODEL K4) Diagram

#

Description
Price

1

COVER, FRAME (SILVER) | GSX1300R FOR NY2; Includes Item(s) 2 - 5

47110-24F60-YMX

Unavailable

2

EMBLEM | GSX1300R FOR YMX

68131-24F30-ABC

Unavailable

3

TAPE, RH (BLUE) | GSX1300R FOR YMX

68135-24F00-YBA

Unavailable

4

TAPE, LH (BLUE) | GSX1300R FOR YMX

68145-24F00-YBA

Unavailable

5

EMBLEM, REAR (BLUE) | GSX1300R FOR YMX

68641-19F00-YBA

Unavailable

6

COVER, FRAME (BLUE) | GSX1300R FOR NY3

47110-24F70-YBA

Unavailable

6

COVER,FRAME PRI | GSX1300R FOR NY4; Includes Item(s) 7 - 10 This part replaces 47110-24F70-YAT.

47111-24F01

Unavailable

7

EMBLEM | GSX1300R FOR YBA

68131-24F30-ABD

Unavailable

7

EMBLEM | GSX1300R FOR YAT

68131-24F30-ABE

Unavailable

8

TAPE, RH (BLACK) | GSX1300R

68135-24F00-YAY

Unavailable

9

TAPE, LH (BLACK) | GSX1300R

68145-24F00-YAY

Unavailable

10

EMBLEM, REAR | GSX1300R FOR YBA

68641-14F30-ABF

Unavailable

10

EMBLEM, REAR | GSX1300R FOR YAT

68641-14F30-ABG

Unavailable

10A

COVER, FRAME (RED) | GSX1300RZ; Includes Item(s) 10B - 10C

47110-24F50-YU7

Unavailable

10B

EMBLEM | GSX1300RZ

68131-24F10-AWP

Unavailable

10C

EMBLEM,"SUZUKI" | GSX1300RZ This part replaces 68641-19F00-YAY.

68281-24F11-YAY

Unavailable

11

COVER, FRAME HEAD RH

47511-24F10

Unavailable

12

COVER, FRAME HEAD LH

47521-24F00

$38.72

13

CLIP, LH (BLACK)

09409-06314-5PK

$2.78

14

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

15

SCREW This part replaces 09139-06087.

09139-06126

$4.04

16

CUSHION

09320-09016

$1.97

17

CUSHION, REAR

47161-27E00

$10.32

18

SCREW, UPPER

09136-06105

$1.97

19

SPACER

09180-06288

$2.06

20

CUSHION

09320-10045

$3.76

21

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.78

22

COVER,FRAME CEN | GSX1300R FOR NY2 This part replaces 47311-24F00-YD8.

47311-24F00

$43.78

22

COVER, CENTER (BLUE) | GSX1300R FOR NY3

47311-24F00-YBA

Unavailable

22

COVER, CENTER (PURPLE) | GSX1300R FOR NY4

47311-24F00-YAT

Unavailable

22

COVER, CENTER (RED) | GSX1300RZ

47311-24F00-YU7

Unavailable

23

CUSHION, UPPER FRONT

47191-24F00

$5.17

24

CUSHION, PILLION HANDLE REAR

47191-24F30

$5.36

25

WASHER,FRAME COVER This part replaces 47190-24F20.

47190-24F21

$9.94

26

CLIP (BLACK)

09409-06314-5PK

$2.78

27

CUSHION, CENTER

47191-24F20

$7.22
