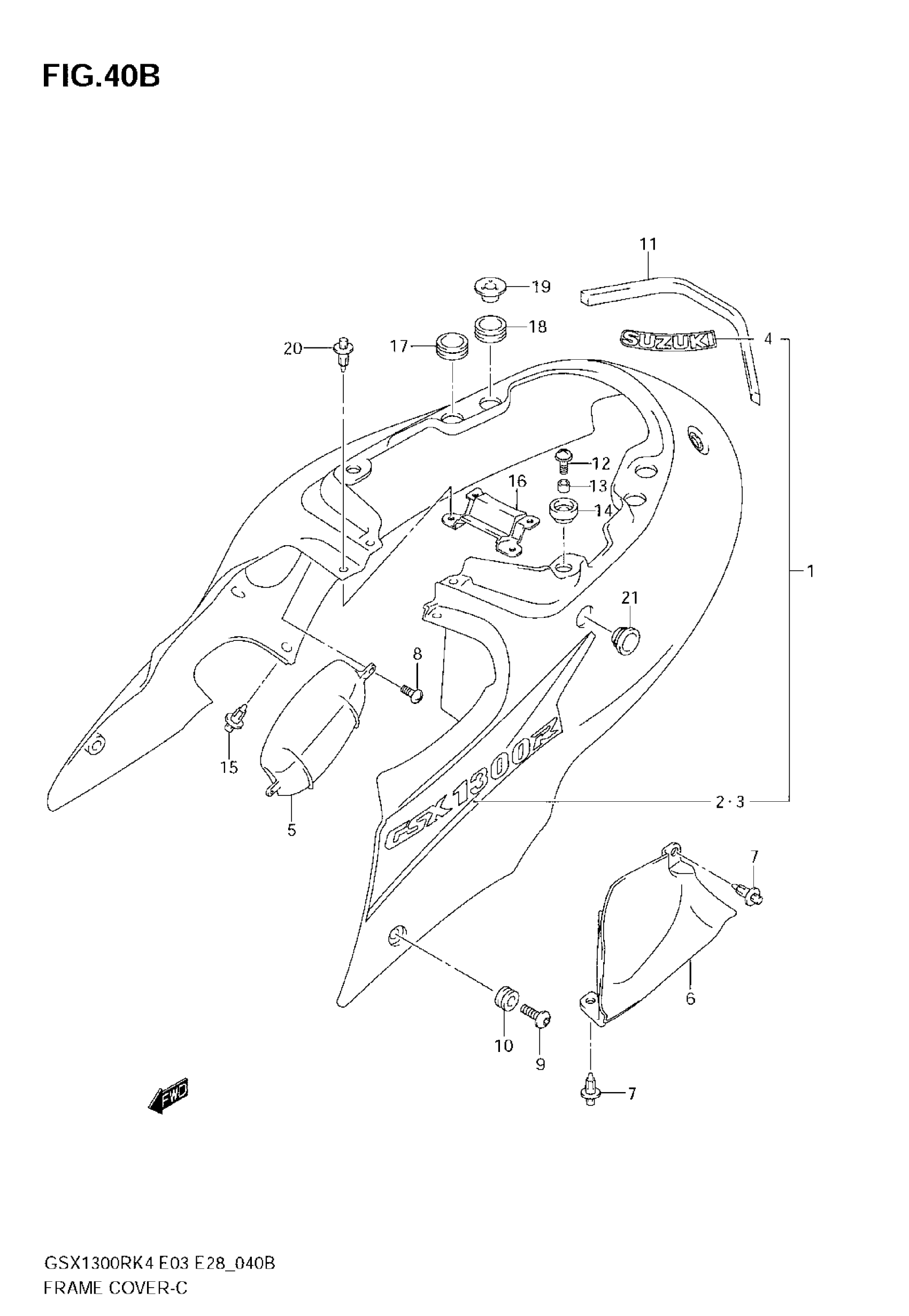

Suzuki GSX1300R (2007) FRAME COVER (GSX1300RK6) Diagram

#

Description
Price

1

COVER, FRAME (GRAY) | FOR CZV

47110-24F80-YHG

Unavailable

1

COVER,FRAME | FOR CZW This part replaces 47110-24F80-4CX.

47110-24F81-4CX

Unavailable

1

COVER, FRAME (GRAY) | FOR CZY; Includes Item(s) 2 - 4

47110-24F80-YHF

Unavailable

2

TAPE, RH | FOR YHG

68135-24F10-DAM

Unavailable

2

TAPE, RH | FOR 4CX

68135-24F10-DAN

Unavailable

2

TAPE, RH | FOR YHF

68135-24F10-DAP

Unavailable

3

TAPE, LH | FOR YHG

68145-24F10-DAM

Unavailable

3

TAPE, LH | FOR 4CX

68145-24F10-DAN

Unavailable

3

TAPE, LH | FOR YHF

68145-24F10-DAP

Unavailable

4

EMBLEM,"SUZUKI" | FOR 4CX This part replaces 68641-19F00-17U.

68641-19F01-17U

$10.03

4

.EMBLEM,"SUZUKI" (BLACK) | FOR YHG,YHF This part replaces 68641-19F00-019.

68281-24F11-019

$10.25

5

COVER, FRAME HEAD RH

47511-24F10

Unavailable

6

COVER, FRAME HEAD LH

47521-24F00

Unavailable

7

CLIP, LH (BLACK)

09409-06314-5PK

$2.80

8

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.37

9

SCREW This part replaces 09139-06087.

09139-06126

$3.65

10

CUSHION

09320-09016

$1.97

11

CUSHION, REAR

47161-27E00

Unavailable

12

SCREW, UPPER

09136-06105

$1.99

13

SPACER

09180-06288

$2.04

14

CUSHION

09320-10045

$3.38

15

CLIP, LOWER (BLACK)

09409-06314-5PK

$2.80

16

COVER, CENTER (GRAY) | FOR CZV

47311-24F00-YHG

Unavailable

16

COVER, CENTER (BLACK) | FOR CZW

47311-24F00-YAY

Unavailable

16

COVER, CENTER (GRAY) | FOR CZY

47311-24F00-YHF

Unavailable

17

CUSHION, UPPER FRONT

47191-24F00

$4.86

18

CUSHION, PILLION HANDLE REAR

47191-24F30

$7.12

19

WASHER,FRAME COVER This part replaces 47190-24F20.

47190-24F21

$9.36

20

CLIP (BLACK)

09409-06314-5PK

$2.80

21

CUSHION, CENTER

47191-24F20

$6.61
