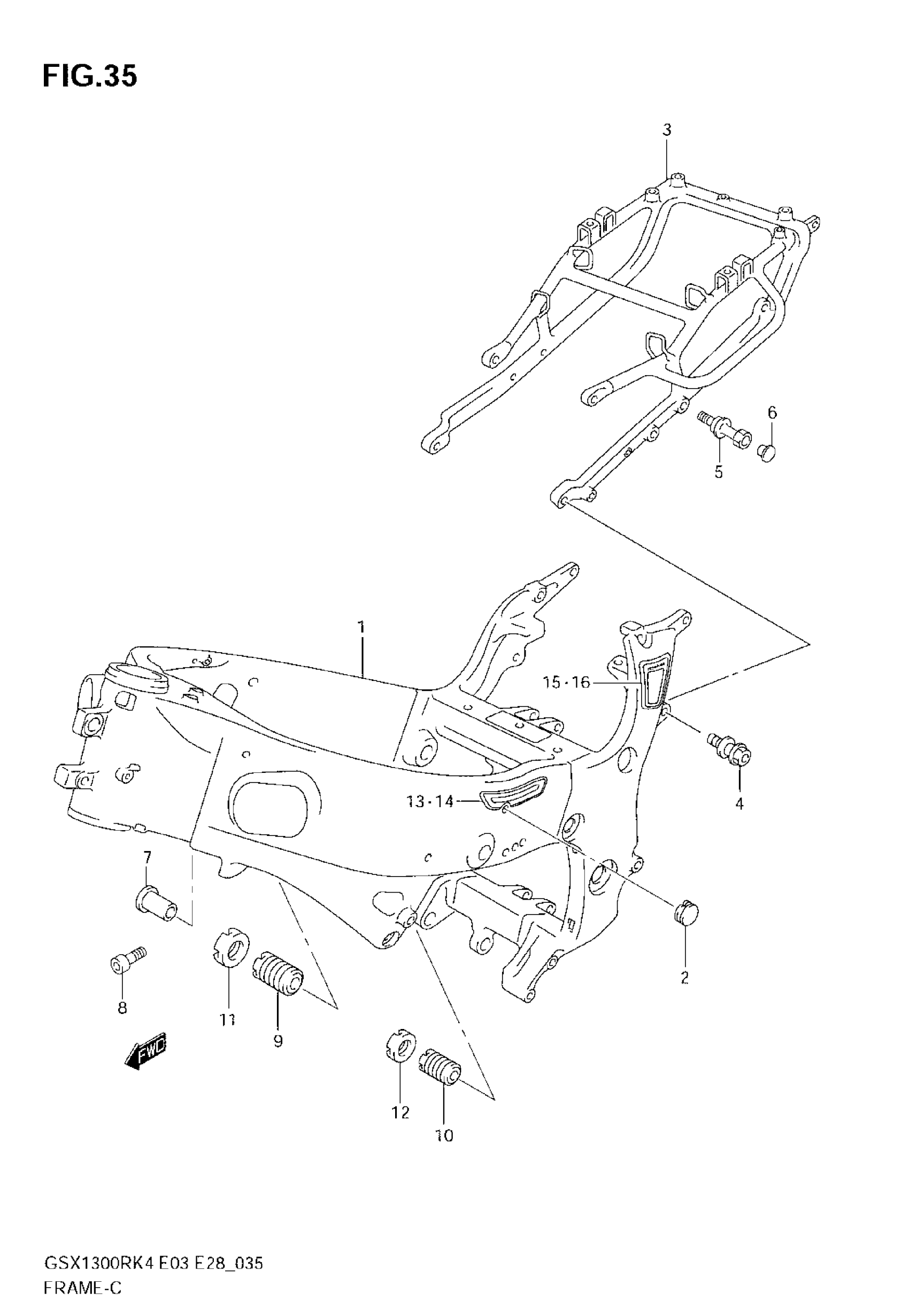

Suzuki GSX1300R (2007) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GSX1300RK4/K5/K6 This part replaces 41100-24F02.

41100-24F04

Unavailable

1

NO DESCRIPTION AVAILABLE | GSX1300RZK4 This part replaces 41100-24F20-291.

41100-24F21-291

Unavailable

1

FRAME | GSX1300RZK5/RZK6 This part replaces 41100-24F20-YAP.

41100-24F22-YAP

Unavailable

1

FRAME | GSX1300RZK7 This part replaces 41100-24F21-YAP.

41100-24F22-YAP

Unavailable

2

CAP,TANK RAIL This part replaces 43585-33E00.

43585-33E01

$4.25

3

RAIL,SEAT This part replaces 41200-24F10.

41200-24F11

$1,070.07

4

BOLT, SEAT RAIL

09103-10296

$6.44

5

HOOK, SEAT RAIL

46315-24F01

$47.00

6

CAP

09250-05009

$2.19

7

SPACER, ENGINE MOUNT

41911-33E10

$26.20

8

BOLT, SPACER

09106-08105

$3.78

9

BOLT, CRANKCASE ADJUST

41921-19F11

$56.32

10

BOLT, CRANKCASE ADJUST

41921-33E11

$49.42

11

NUT,CRANK CASE ADJUST This part replaces 41922-19F11.

41922-19F12

$29.75

12

NUT,CRANK CASE ADJUST This part replaces 41922-33E10.

41922-33E30

$21.97

13

PAD, TANK RAIL RH

41860-24F00

$43.93

14

PAD, TANK RAIL LH

41960-24F00

Unavailable

15

EMBLEM, FRAME BODY RH | OPT

41850-24F00

Unavailable

16

EMBLEM, FRAME BODY LH | OPT

41950-24F00

Unavailable
