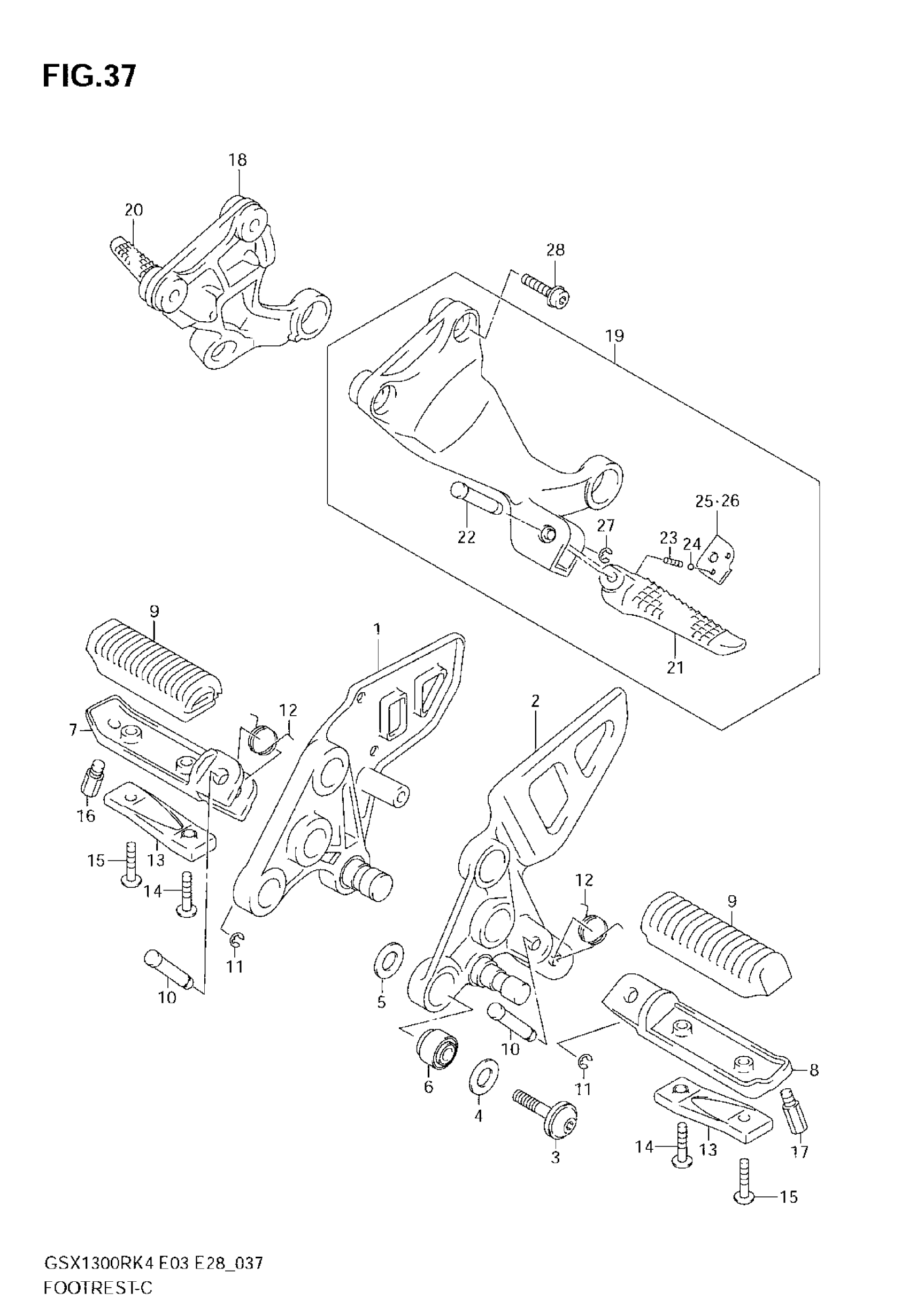

Find the part on the Footrest diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GSX1300R Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43510-24F00

1
Out of stock

2

BRACKET, FRONT FOOTREST LH

43521-24F00

1
Out of stock

3

BOLT, BRACKET

09106-08147

6
Out of stock

4

WASHER, OUTER

09161-13004

6
Out of stock

5

WASHER, INNER

09161-17002

6
Out of stock

6

BUSH

09319-08045

6
Out of stock

7

BAR, FRONT FOOTREST RH

43531-24F00

1
Out of stock

8

BAR, FRONT FOOTREST LH

43541-24F00

1
Out of stock

9

RUBBER

43550-24F00

2
Out of stock

10

PIN

09208-08016

2
Out of stock

11

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

12

SPRING

09448-18022

2
Out of stock

13

BALANCER

43536-31E20

2
Out of stock

14

2

$2.37

In stock

15

SCREW This part replaces 02142-05253.

02142-0525B

2
Out of stock

16

BOLT, BANK SENS0R RH

43576-48B02

1
Out of stock

17

BOLT, BANK SENSOR LH

43576-48B20

1
Out of stock

18

FOOTREST ASSY, PILLION RH

43600-24F00

1
Out of stock

19

1

$309.47

In stock

20

BAR, PILLION RH

43610-33E11

1

$82.10

In stock

21

BAR, PILLION LH

43620-33E11

1

$83.62

In stock

22

PIN

09208-06007

2
Out of stock

23

SPRING

09440-05005

2
Out of stock

24

BALL

06111-07004

2
Out of stock

25

PLATE, RH

43816-33E21

1
Out of stock

26

PLATE, LH

43826-33E22

1
Out of stock

27

E RING This part replaces 08332-11043.

08332-1104A

2
Out of stock

28

BOLT, BRACKET

09106-08121

4
Out of stock
