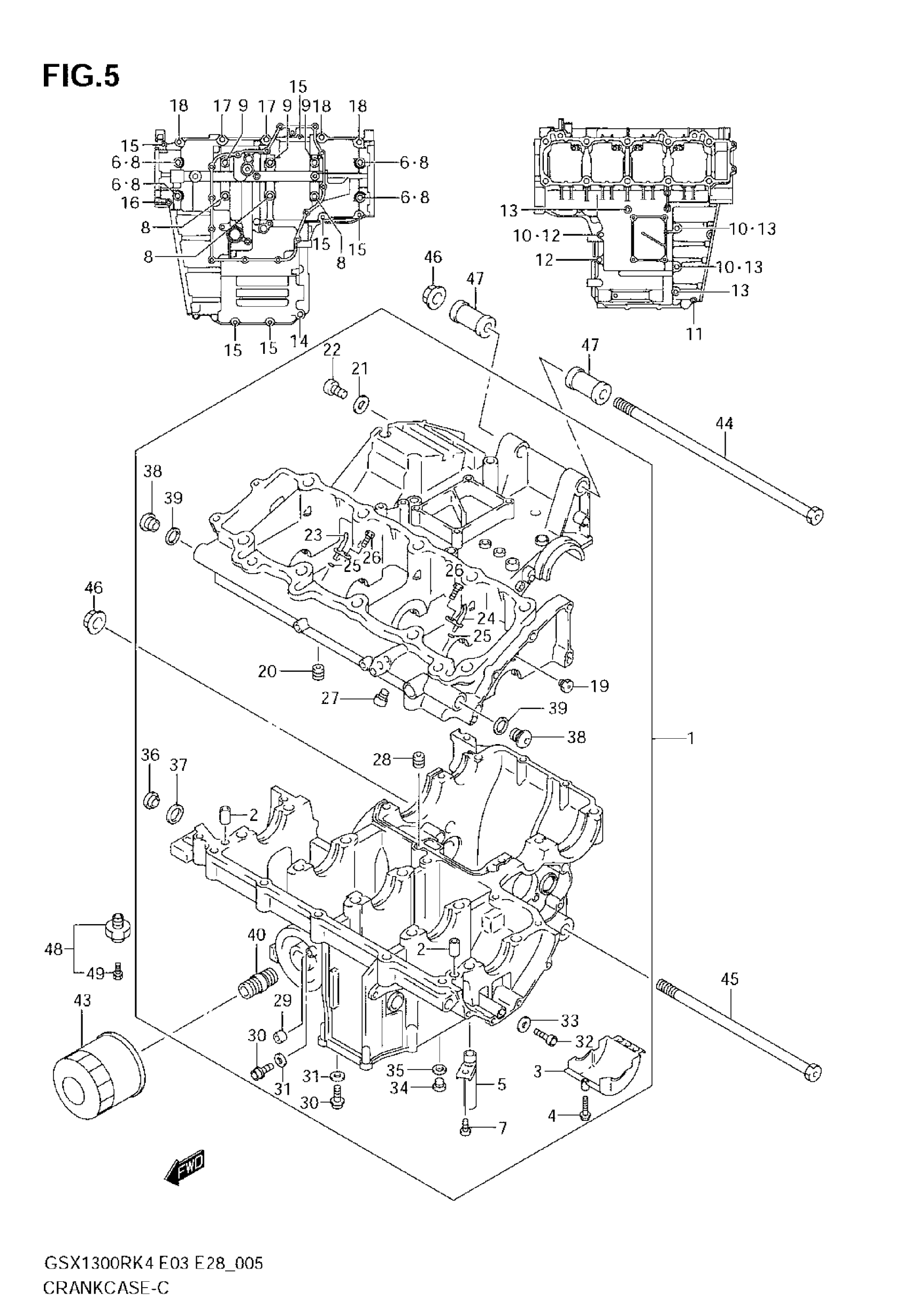

Suzuki GSX1300R (2007) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K4/K5/K6 This part replaces 11302-24811.

11302-24813

Unavailable

1

CRANKCASE SET | MODEL K7; Includes Item(s) 2 - 42 This part replaces 11302-24812.

11302-24813

Unavailable

2

PIN,CRANKCASE

11319-33E50

$5.32

3

SEPARATOR, OIL

11323-24F00

Unavailable

4

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.45

5

UNION, BREATHER OIL

11328-24F00

$18.67

6

.GASKET (10.2X20X2.3)

09168-10031

$2.03

7

BOLT This part replaces 01547-06123.

01547-0612B

$1.49

8

BOLT (9X95)

09103-09008

$7.59

9

BOLT (9X115)

09103-09010

$9.92

10

GASKET (8.2X14X1)

09168-08016

$1.65

11

BOLT This part replaces 01547-06503.

01547-0650B

$2.75

12

BOLT This part replaces 01550-08653.

01550-0865A

$3.51

13

BOLT This part replaces 01550-08803.

01550-0880A

$3.61

14

BOLT This part replaces 01550-10603.

01550-1060A

$4.58

15

BOLT This part replaces 01547-06403.

01547-0640B

$2.75

16

BOLT This part replaces 01547-06603.

01547-0660B

$3.18

17

BOLT (8X50)

09103-08155

Unavailable

18

BOLT (8X60)

09103-08355

$4.25

19

JET, MAGNETO COOLING

11393-33E01

$13.85

20

JET,AIR (#100)

09493-20012

$19.48

21

GASKET, T/M COOLING

09168-06023

$2.35

22

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

23

JET,PISTON COOLING

11390-34E00

$21.52

24

JET,PISTON COOLING

11390-34E10

$21.52

25

O RING

09280-04004

$1.91

26

BOLT

09106-06075

$2.48

27

PLUG, PISTON JET OIL GALLERY

09106-06076

$3.29

28

JET, T/M OIL 180

09493-36006

$16.87

29

JET, OIL GALLERY

11532-46E00

$11.53

30

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

31

GASKET

09168-06023

$2.35

32

BOLT This part replaces 07130-08163.

07130-0816A

$3.16

33

GASKET (8.2X14X1)

09168-08016

$1.65

34

PLUG, OIL GALLERY

09248-10010

$4.17

35

GASKET (9.9X14X0.3)

09168-10002

$2.13

36

PLUG, OIL GALLERY (16X8)

09248-16012

$4.64

37

GASKET (16X22X2)

09168-16002

$1.91

38

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

39

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

40

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

41

BEARING, CRANK THRUST (GREEN) | RH SEE ILLUSTRATION ON FIG.8(C-3)

12228-24F00-0D0

$10.81

42

.BEARING,CRANK THRUST,L (RED) | LH SEE ILLUSTRATION ON FIG.8(C-3)

12228-24F00-0A0

$12.80

42

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$12.72

42

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$12.72

42

BEARING, CRANK THRUST (GREEN)

12228-24F00-0D0

$10.81

42

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$13.28

42

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$13.28

43

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

44

BOLT (12X320)

09103-12066

$38.10

45

BOLT (12X240)

09103-12067

$29.02

46

NUT

09159-12054

$7.44

47

SPACER,ENG MTG (L47)

11611-24F00

$26.75

48

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 49 This part replaces 37820-33D10.

37820-33D11

$25.13

49

BOLT

37822-33D00

$4.35
