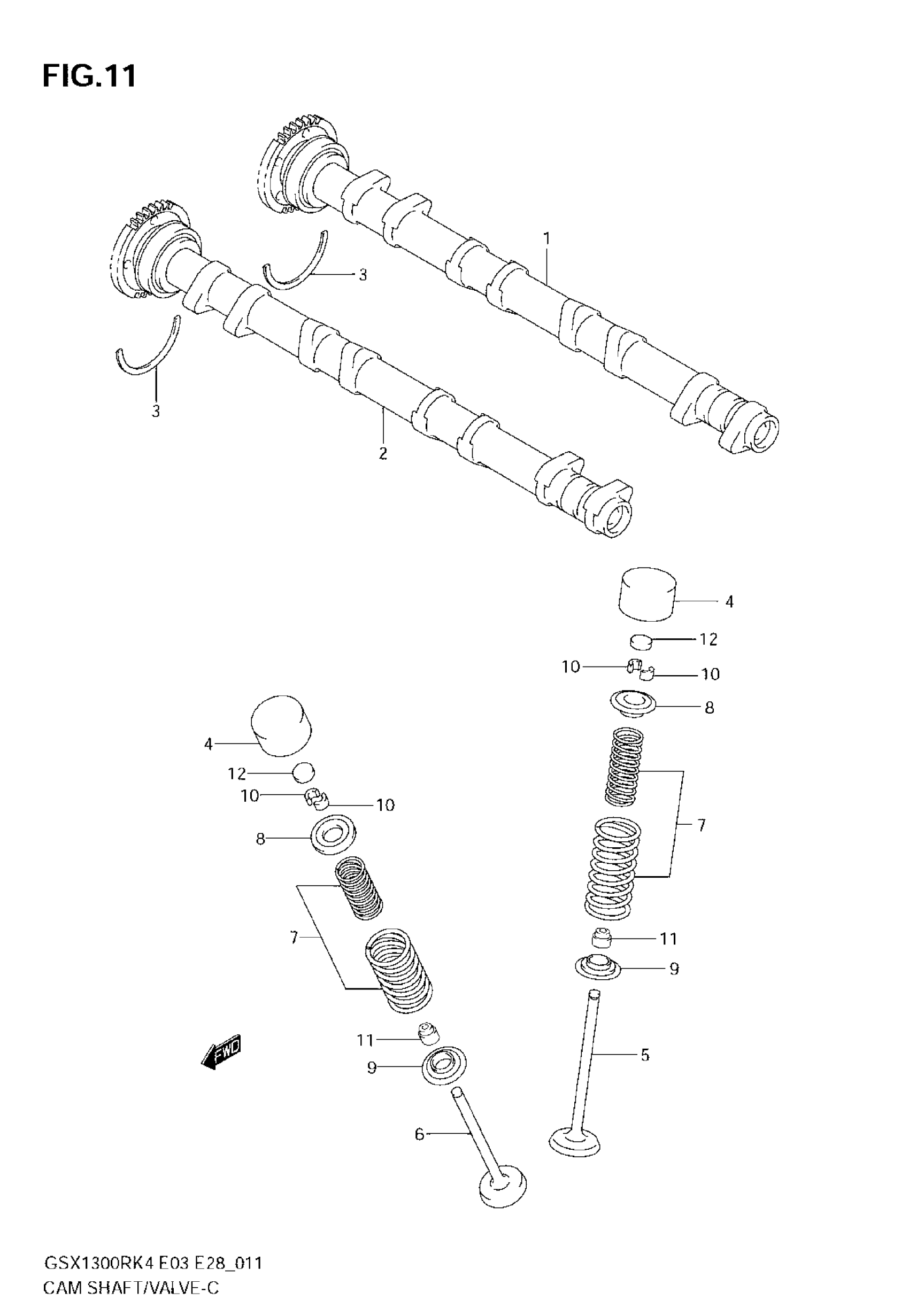

Suzuki GSX1300R (2007) CAMSHAFT - VALVE Diagram

CAMSHAFT, INTAKE

12710-24F00

Unavailable

CAMSHAFT, EXHAUST

12720-24F00

Unavailable

C RING

09390-47002

$3.37

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

VALVE, INTAKE

12911-24F00

$56.08

VALVE, EXHAUST

12912-24F00

$65.94

SPRING SET, VALVE

12920-24F00

$19.55

RETAINER,VALVE SPRING

12931-02F10

$15.16

SEAT,VALVE SPRING

12933-38400

$5.44

COTTER, VALVE

12932-24F00

$2.03

OIL SEAL (4.5X10X8)

09289-05011

$6.32

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

SHIM SET, TAPPET INC.REF.NO.12-5%12-25 (5PCS.EACH) & NO.14 | OPT NOT SHOWN; Includes Item(s) 14

12800-41810

$1,138.37

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable
