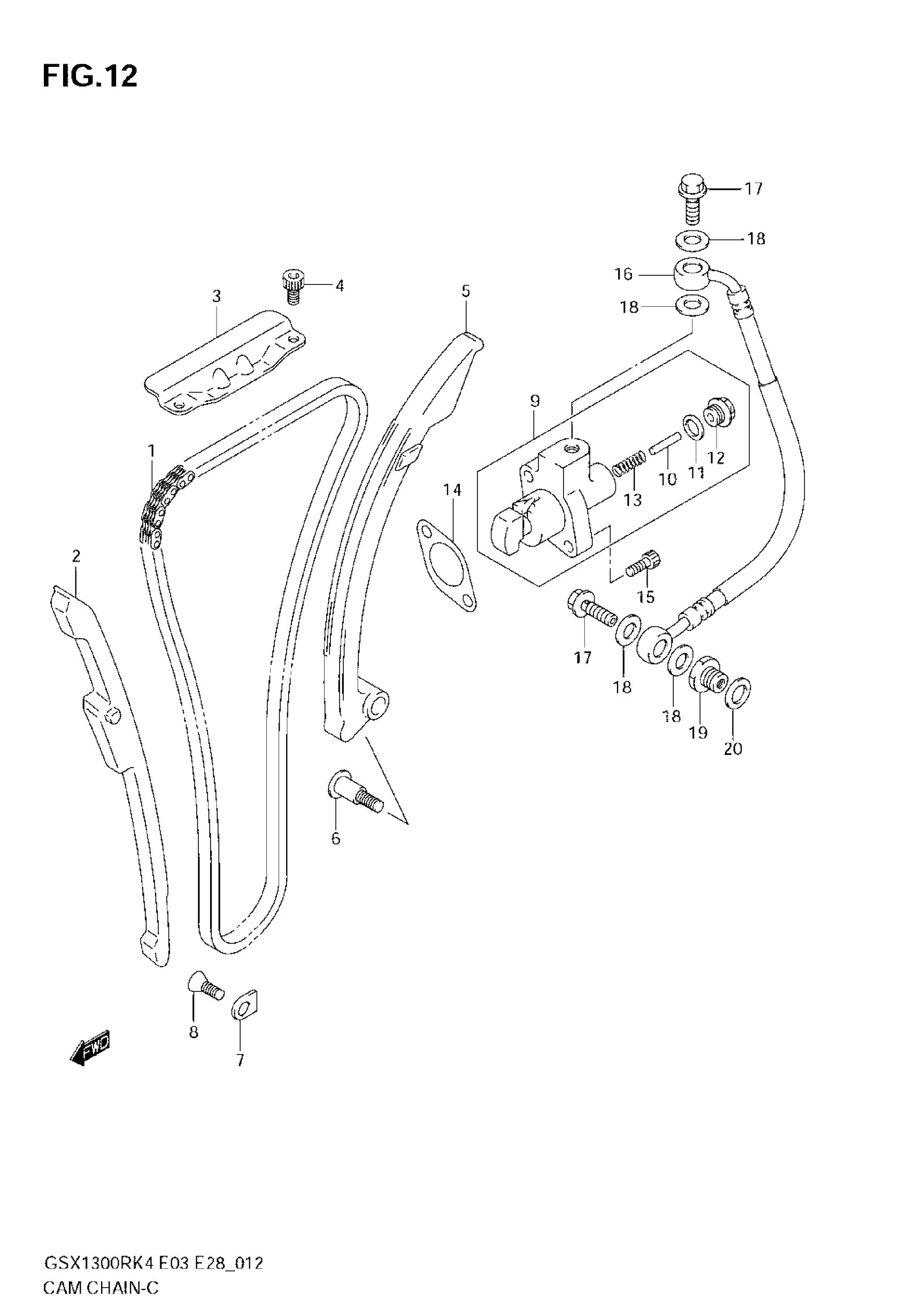

Suzuki GSX1300R (2007) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE This part replaces 12760-24F00.

12760-24F01

$157.01

2

GUIDE,CAM CHAIN This part replaces 12771-24F00.

12771-24F01

$40.26

3

GUIDE,CAM CHAIN This part replaces 12782-24F01.

12782-24F02

$35.17

4

BOLT This part replaces 07130-06123.

07130-0612A

$2.50

5

TENSIONER,CAM C | MODEL K4 This part replaces 12811-24F10.

12811-24F12

$48.36

5

TENSIONER,CAM C | MODEL K5/K6/K7 This part replaces 12811-24F11.

12811-24F12

$48.36

6

BOLT

12812-26B02

$8.43

7

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.02

8

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

9

ADJUSTER SET, TENSIONER | MODEL K4 This part replaces 12800-24F10.

12800-24F11

$145.47

9

ADJUSTER SET, TENSIONER | MODEL K5/K6/K7; Includes Item(s) 10 - 13

12800-24F11

$145.47

10

SHAFT, ADJUSTER

12836-24F00

Unavailable

11

GASKET

12837-24F10

$4.78

12

PLUG

12833-05A00

$16.28

13

SPRING

12831-24F10

$7.12

14

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

15

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

16

HOSE, CAM CHAIN TENSIONER

12835-24F00

$109.85

17

BOLT | MODEL K4 This part replaces 12838-35F00.

12838-35F01

$14.77

17

BOLT | MODEL K5/K6/K7

12838-35F01

$14.77

18

GASKET (8.2X14X1)

09168-08016

$1.65

19

PLUG

12839-24F00

$11.53

20

GASKET

09168-14002

$2.26
