2007 Suzuki GSX1300R Bracket - Steering Damper Diagram

← All diagrams

Find the part on the Bracket - Steering Damper diagram for your 2007 Suzuki GSX1300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

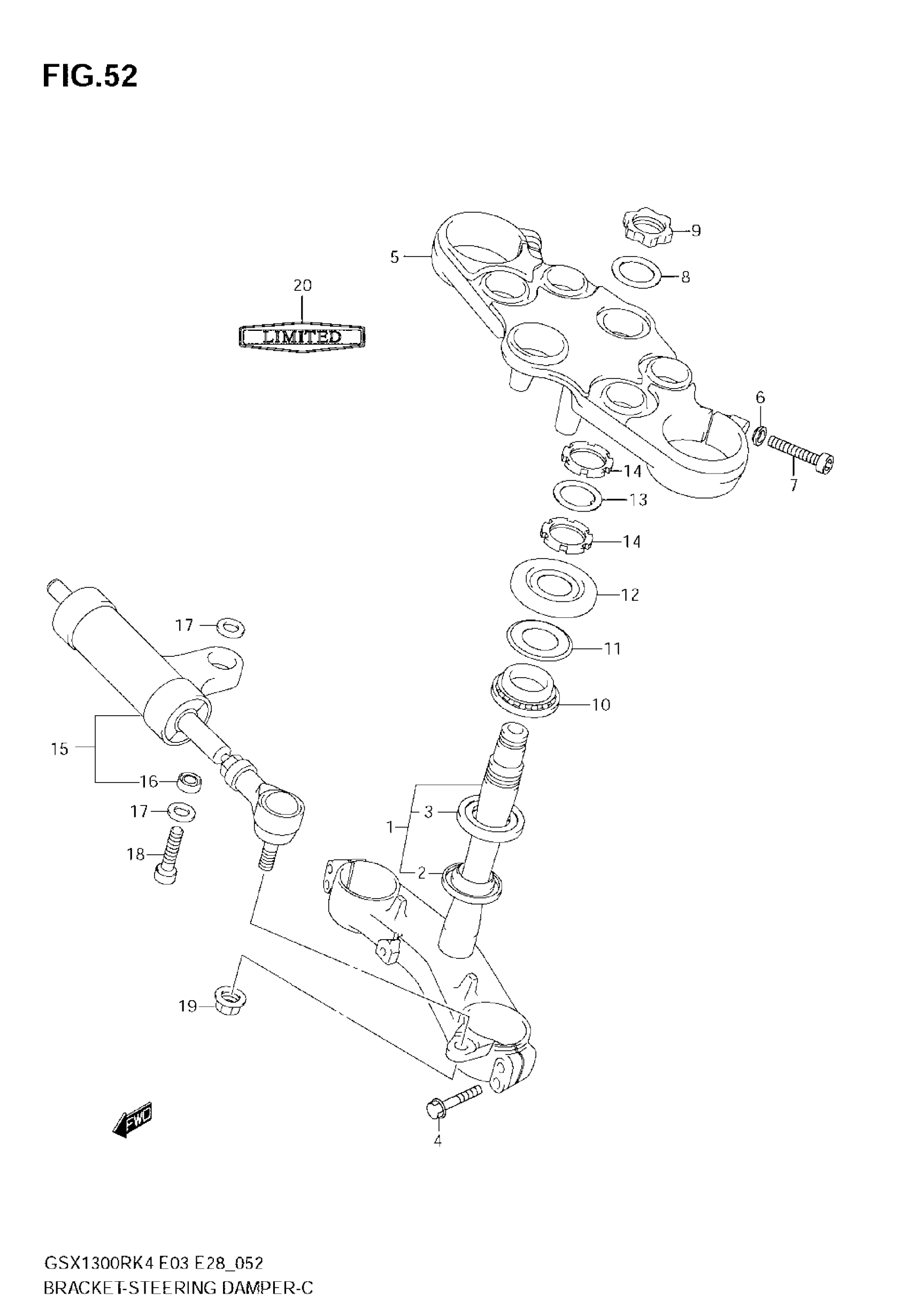

2007 Suzuki GSX1300R Bracket - Steering Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, LOWER | Includes Item(s) 2 - 3

51410-24F30

1
Out of stock

2

SEAL, LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT

01550-08407

4
Out of stock

5

BRACKET, UPPER

51311-24F00

1
Out of stock

6

WASHER

09164-08015

2
Out of stock

7

BOLT

07130-08357

2
Out of stock

8

WASHER

51356-27C00

1
Out of stock

9

NUT

51353-24F00

1
Out of stock

10

BEARING (30X55X17)

09267-30010

1
Out of stock

11

SEAL, DUST UPPER (30.1X56X4)

51644-12C00

1
Out of stock

12

SEAL, STEERING (30.1X75X6)

51643-24F10

1
Out of stock

13

WASHER, STEM

51641-33E00

1
Out of stock

14

NUT, STEM

51631-33E00

2
Out of stock

15

DAMPER ASSY, STEERING | Includes Item(s) 16

51750-24F00

1
Out of stock

16

BEARING (8X17.5X11)

09269-08003

1
Out of stock

17

SEAL, DUST

64339-14101

2
Out of stock

18

BOLT

07130-08307

1
Out of stock

19

NUT | MODEL K4/K5/K6

08319-31107

1
Out of stock

19

NUT | MODEL K7

08319-3110A

1
Out of stock

20

EMBLEM, "LIMITED" | GSX1300RZK4

68281-35F10

1
Out of stock
