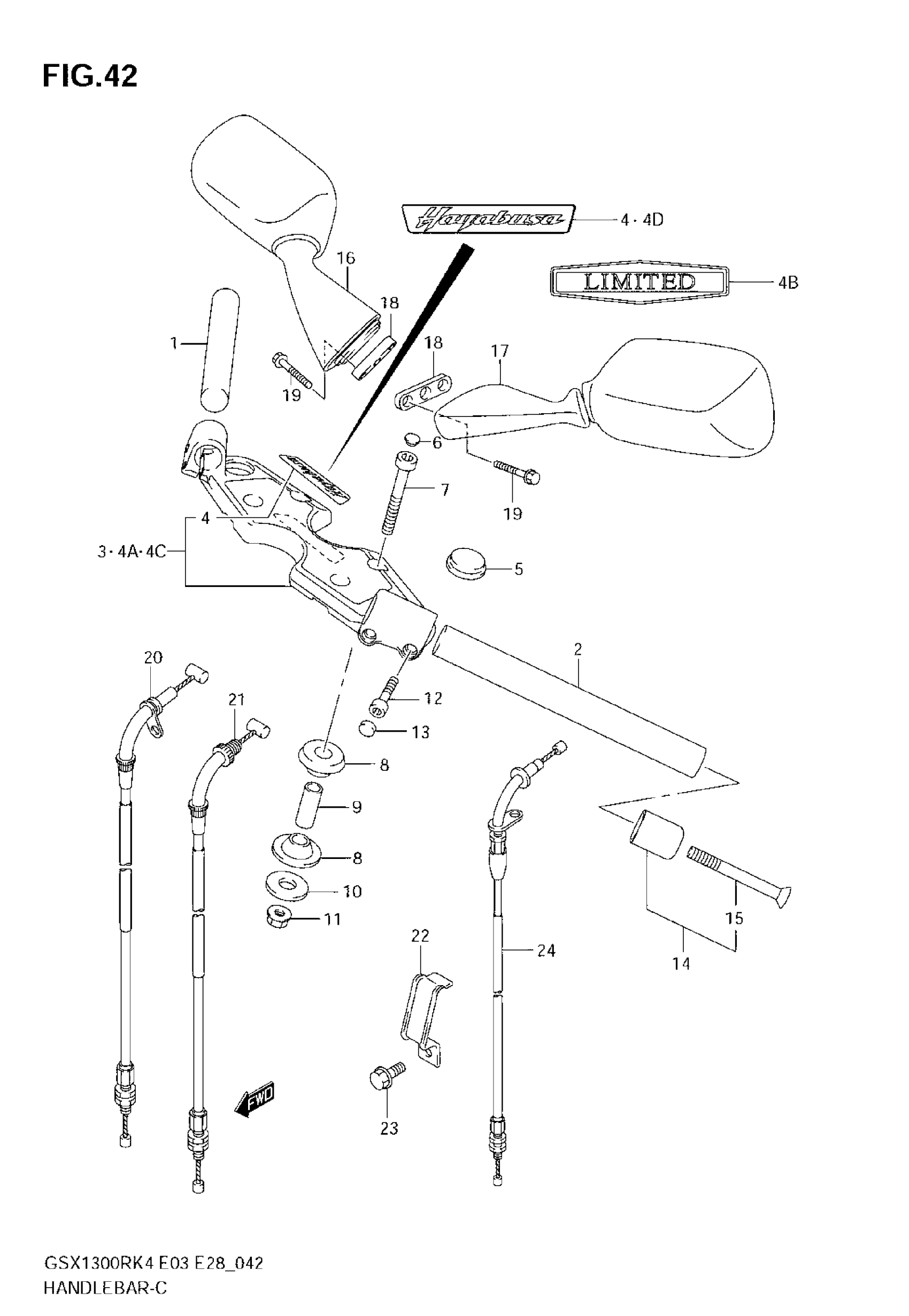

Suzuki GSX1300R (2007) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR, RH

56111-24F01

Unavailable

2

HANDLEBAR, LH

56151-24F01

Unavailable

3

HOLDER, HANDLE | GSX1300RK4/K5/K6; Includes Item(s) 4

56210-24F00

Unavailable

4

EMBLEM | GSX1300RK4/K5/K6

68281-24F00

$29.80

4A

HOLDER, HANDLE | GSX1300RZK4/RZK6; Includes Item(s) 4B

56210-24F20

Unavailable

4B

EMBLEM "LIMITED" | GSX1300RZK4/RZK6

68281-35F10

Unavailable

4C

HOLDER, HANDLE | GSX1300RZK7; Includes Item(s) 4D

56210-24F00

Unavailable

4D

EMBLEM | GSX1300RZK7

68281-24F00

$29.80

5

CUSHION,HANDLE HOLDER

56247-24F00

$12.83

6

CAP, BOLT

56246-24F00

$7.07

7

BOLT

07130-10607

$6.25

8

CUSHION,UPR BRKT This part replaces 56240-01D00.

56240-01D01

$37.40

9

SPACER

56243-01D00

$10.62

10

WASHER | MODEL K4/K5/K6

09160-10094

$4.03

10

WASHER | MODEL K7

09160-10145

Unavailable

11

NUT | MODEL K4/K5/K6

08319-31107

$2.73

11

NUT | MODEL K7

08319-3110A

$2.73

12

BOLT, CLAMP

09106-06090

$2.90

13

CAP

09250-05009

$2.10

14

BALANCER SET, HANDLEBAR | Includes Item(s) 15

56200-08830

$56.83

15

SCREW This part replaces 02122-06603.

02122-0660B

$2.80

16

MIRROR ASSY, REAR VIEW RH This part replaces 56500-24F00.

56500-24F20

$289.20

17

MIRROR ASSY, REAR VIEW LH This part replaces 56600-24F00.

56600-24F20

$269.32

18

CUSHION

94576-24F00

$6.14

19

BOLT, FINAL GEAR CASE | MODEL K4/K5/K6 This part replaces 01547-06303.

01547-0630B

$2.73

19

BOLT | MODEL K7

01547-0630B

$2.73

20

CABLE ASSY, THROTTLE NO.1

58300-24F20

$22.92

21

CABLE ASSY, THROTTLE NO.2

58300-24F30

$32.33

22

GUIDE, CABLE

58623-24F00

Unavailable

23

BOLT

09103-05017

$3.55

24

CABLE, STARTER

58410-24F00

$53.07
