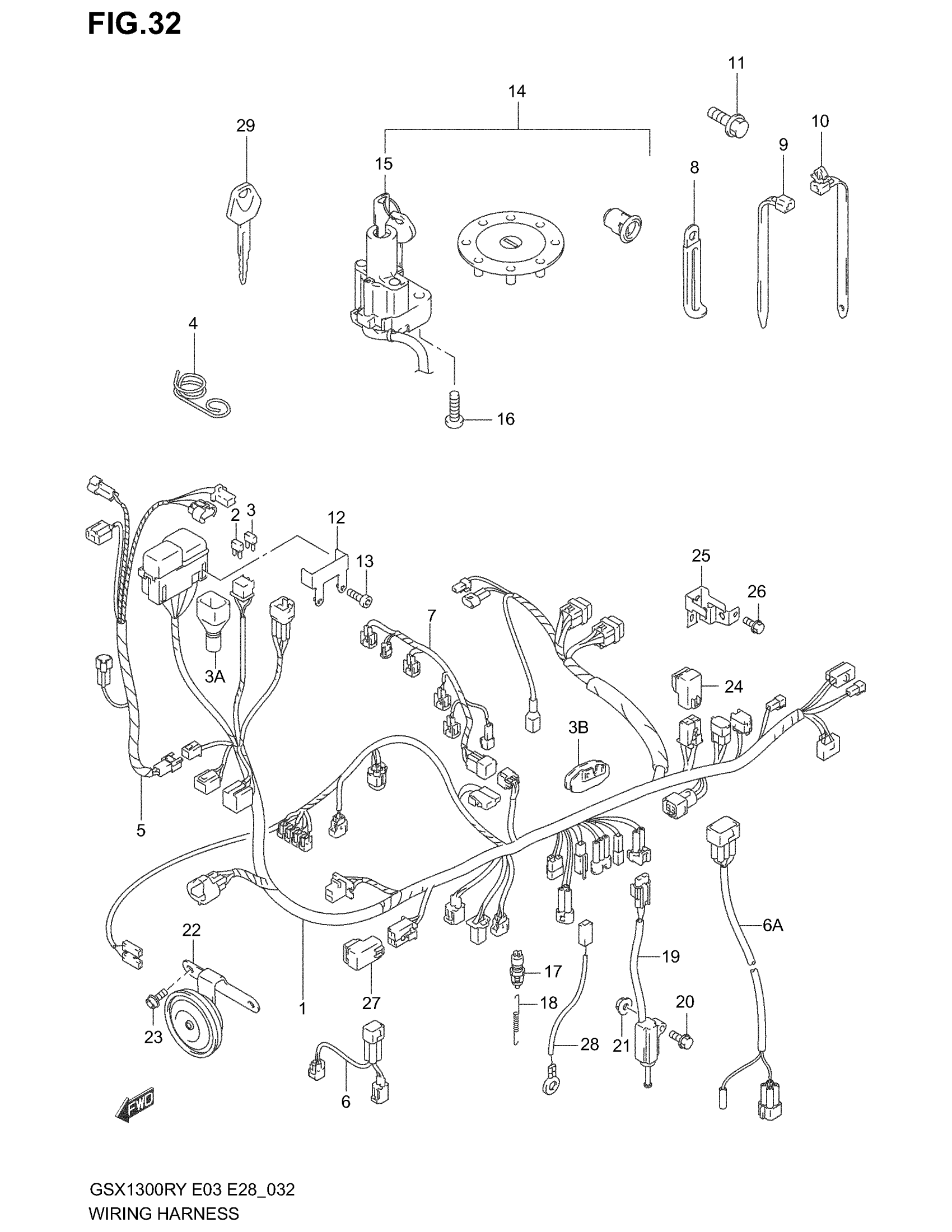

Suzuki GSX1300R (2003) WIRING HARNESS (MODEL X/Y/K1/K2) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1 | MODEL X

36610-24F10

Unavailable

1

HARNESS, WIRING NO.1 | MODEL Y

36610-24F20

Unavailable

1

HARNESS, WIRING NO.1 | MODEL K1/K2; Includes Item(s) 2 - 3B

36610-24F30

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

3A

BOOT, METER COUPLER

36618-33E00

$8.77

3B

PROTECTOR, WIRING HARNESS

36611-24F00

Unavailable

4

GUIDE, WIRING HARNESS

36619-24F00

Unavailable

5

HARNESS, WIRING NO.2

36620-24F10

Unavailable

6

WIRE, SENSOR LEAD | MODEL X/Y

36854-24F00

Unavailable

6A

WIRE, 02 SENSOR | MODEL K2

36855-24F00

Unavailable

7

WIRE, INJECTION LEAD | MODEL X/Y

36856-24F00

Unavailable

7

WIRE, INJECTION LEAD | MODEL K1/K2

36856-24F10

Unavailable

8

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

8

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.74

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:90)

09407-11402

$1.80

10

CLAMP | MODEL K1 This part replaces 09407-17401.

09407-17402

$3.93

11

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

12

BRACKET, FUSE BOX

36744-24F00

Unavailable

13

BOLT This part replaces 07120-05103.

07120-0510B

$3.05

14

LOCK SET This part replaces 37000-24810.

37000-24813

$377.27

14

LOCK SET (CA) | E33; Includes Item(s) 15 This part replaces 37000-24830.

37000-24831

Unavailable

15

LOCK ASSY,STEER This part replaces 37100-24F00.

37100-24F01

$209.93

16

SCREW (8X20)

09139-08016

$3.37

17

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

18

SPRING

09443-06012

$3.16

19

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$58.63

20

BOLT (8X35) | MODEL X This part replaces 09103-08287.

09103-08357

$4.17

20

BOLT (8X35) | MODEL Y/K1/K2

09103-08357

$4.17

21

NUT This part replaces 08316-10083.

08316-1008B

$2.66

22

HORN ASSY

38500-24F00

$87.70

23

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

24

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

25

BRACKET, FUEL PUMP RLY

38741-24F00

$8.77

26

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

27

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

28

WIRE, OIL PRESSURE | MODEL X/Y/K1 ?36851-24F00

36851-17E10

Unavailable

29

KEY, BLANK | OPT

37146-33E00

$21.21
