Description

Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 12 This part replaces 17400-24F00.

17400-24F11

$251.18

2

IMPELLER

17491-17E01

$26.78

3

GASKET

09168-06025

$2.92

4

.SEAL,MECHANICAL | MODEL X/Y This part replaces 17470-46A01.

17470-02F11

$29.22

4

.SEAL,MECHANICAL | MODEL K1/K2/K3 This part replaces 17470-02F00.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5)

09283-10004

$4.96

6

SHAFT

17511-24F00

Unavailable

7

BEARING (10X26X8)

09262-10014

$16.01

8

LOCK WASHER

09164-06006

$2.61

9

.O-RING This part replaces 17418-33400.

17418-33401

$4.48

10

.O-RING

17435-33400

$15.29

11

SCREW This part replaces 02112-06163.

02112-0616A

$1.49

12

BOLT (6X13)

09100-06099

$2.00

13

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

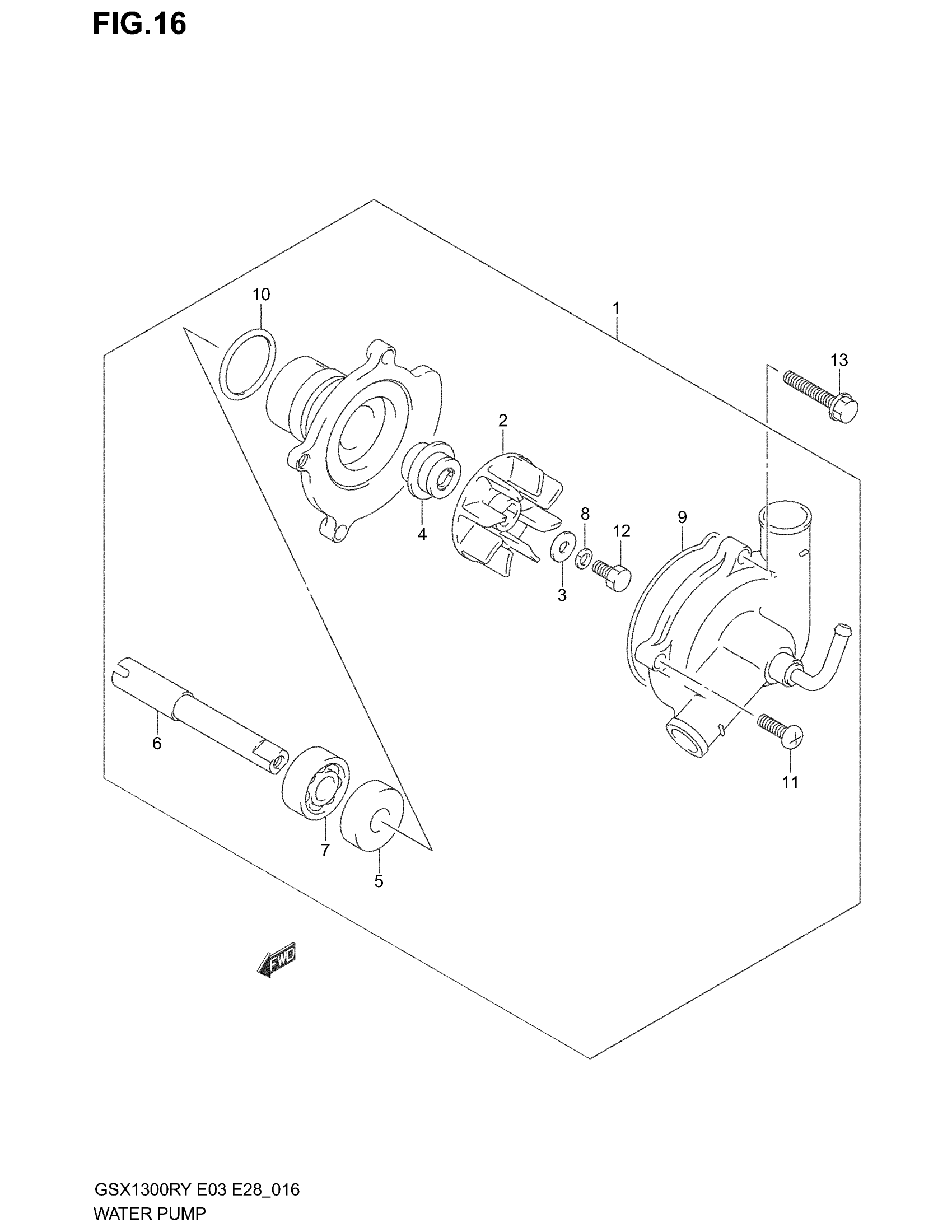

Suzuki GSX1300R (2003) WATER PUMP Diagram
