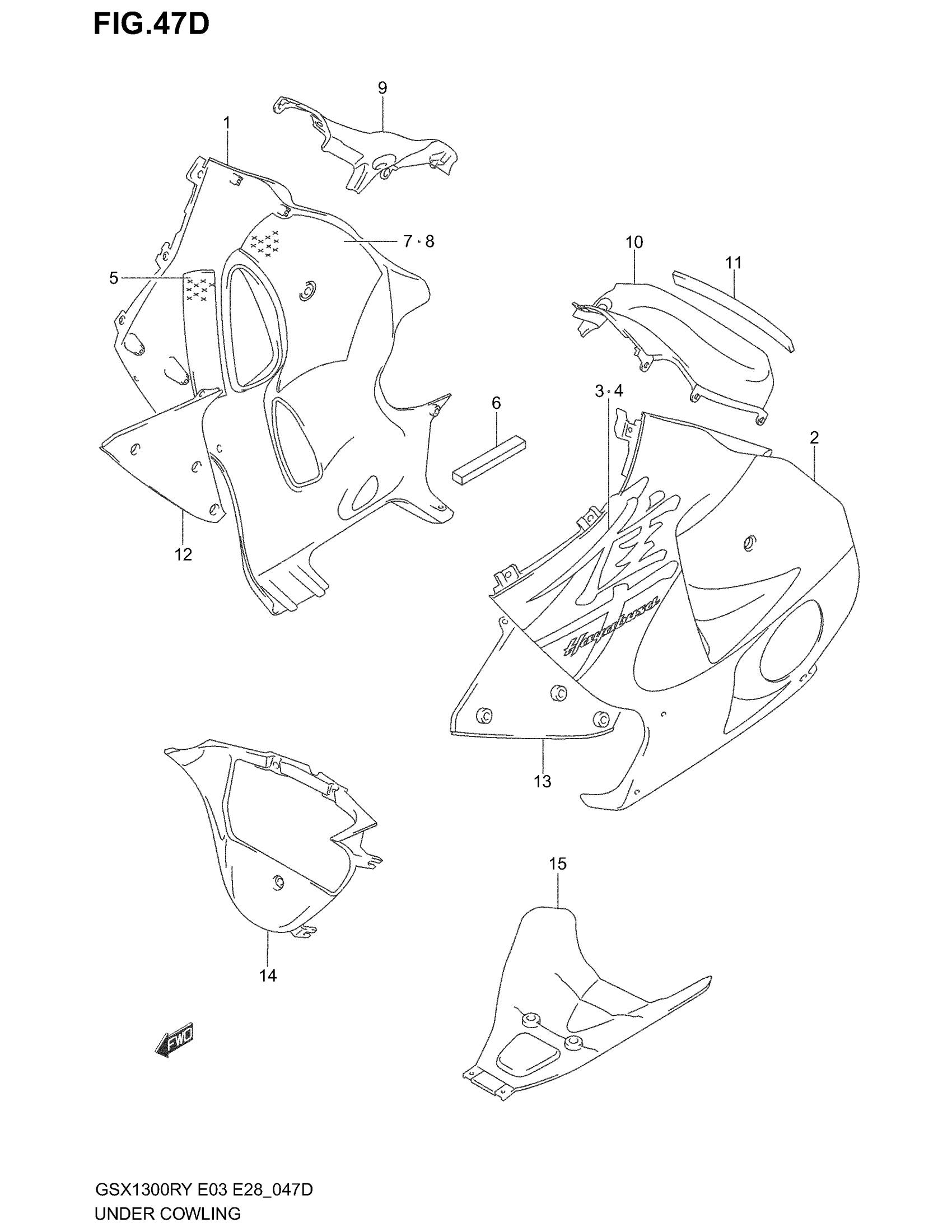

Suzuki GSX1300R (2003) UNDER COWLING (MODEL K3) Diagram

#

Description
Price

1

COWL ASSY, UNDER RH | GSX1300RK3

94407-24F60-CN5

Unavailable

1

COWL ASSY,UNDER | GSX1300RK3 This part replaces 94407-24F60-KT7.

94407-24F61-KT7

$1,119.50

1

COWL ASSY,UNDER | GSX1300RK3 This part replaces 94407-24F60-LA1.

94407-24F61-LA1

Unavailable

1

COWLING ASSY,UN | GSX1300RZK3 E28 This part replaces 94407-24F40-019.

94407-24F41-019

Unavailable

1

NO DESCRIPTION AVAILABLE | GSX1300RZK3 E3,E33 This part replaces 94407-24F10-YAV.

94470-24F02-13L

Unavailable

2

COWL ASSY, UNDER LH | GSX1300RK3

94408-24F60-CN5

Unavailable

2

COWL ASSY,UNDER | GSX1300RK3 This part replaces 94408-24F60-KT7.

94408-24F61-KT7

Unavailable

2

COWL ASSY,UNDER | GSX1300RK3 This part replaces 94408-24F60-LA1.

94408-24F61-LA1

Unavailable

2

COWL ASSY,UNDER | GSX1300RZK3 E28 This part replaces 94408-24F40-019.

94408-24F41-019

Unavailable

2

COWLING COMP,UN | GSX1300RZK3 E3,E33; Includes Item(s) 3 - 8 This part replaces 94408-24F10-YAV.

94480-24F02-13L

Unavailable

3

EMBLEM, RH | GSX1300RK3 FOR CN5

68181-24F40-LL1

Unavailable

3

EMBLEM, RH | GSX1300RK3 FOR KT7

68181-24F40-LL2

Unavailable

3

EMBLEM, RH | GSX1300RK3 FOR LA1

68181-24F40-LL3

Unavailable

3

EMBLEM, RH | GSX1300RZK3 E28 FOR 019

68181-24F10-JB6

Unavailable

3

EMBLEM, RH | GSX1300RZK3 E3,E33 FOR YAV

68181-24F10-NH5

Unavailable

4

EMBLEM, LH | GSX1300RK3 FOR CN5

68191-24F40-LL1

Unavailable

4

EMBLEM, LH | GSX1300RK3 FOR KT7

68191-24F40-LL2

Unavailable

4

EMBLEM, LH | GSX1300RK3 FOR LA1

68191-24F40-LL3

Unavailable

4

EMBLEM, LH | GSX1300RZK3 E28 FOR 019

68191-24F10-JB6

Unavailable

4

EMBLEM, LH | GSX1300RZK3 E3,E33 FOR YAV

68191-24F10-NH5

Unavailable

5

CUSHION

94474-24F01

$37.67

6

CUSHION, UNDER COWL RH This part replaces 94473-24F00.

94476-41G00

$10.48

7

CUSHION, RH

94475-24F01

Unavailable

8

CUSHION, LH

94485-24F00

$101.35

9

PANEL, SIDE RH

94621-24F00

$46.67

10

PANEL, SIDE LH

94631-24F00

$46.67

11

MOLDING, SIDE PANEL

94622-24F00

$10.89

12

COWL, INNER RH

94461-24F00

$31.62

13

COWL, INNER LH

94462-24F00

$31.05

14

COWL, CENTER

94498-24F01

$65.23

15

COWL, REAR (SILVER) | GSX1300RK3 FOR CN5,LA1

94660-24F00-YD8

Unavailable

15

COWL, REAR (GRAY) | GSX1300RK3 FOR KT7

94660-24F00-YU8

Unavailable

15

COWL, REAR (BLACK) | GSX1300RZK3 E28 FOR 019

94660-24F10-019

Unavailable

15

COWL, REAR (ORANGE) | GSX1300RZK3 E3,E33 FOR YAV

94660-24F00-YAV

Unavailable
