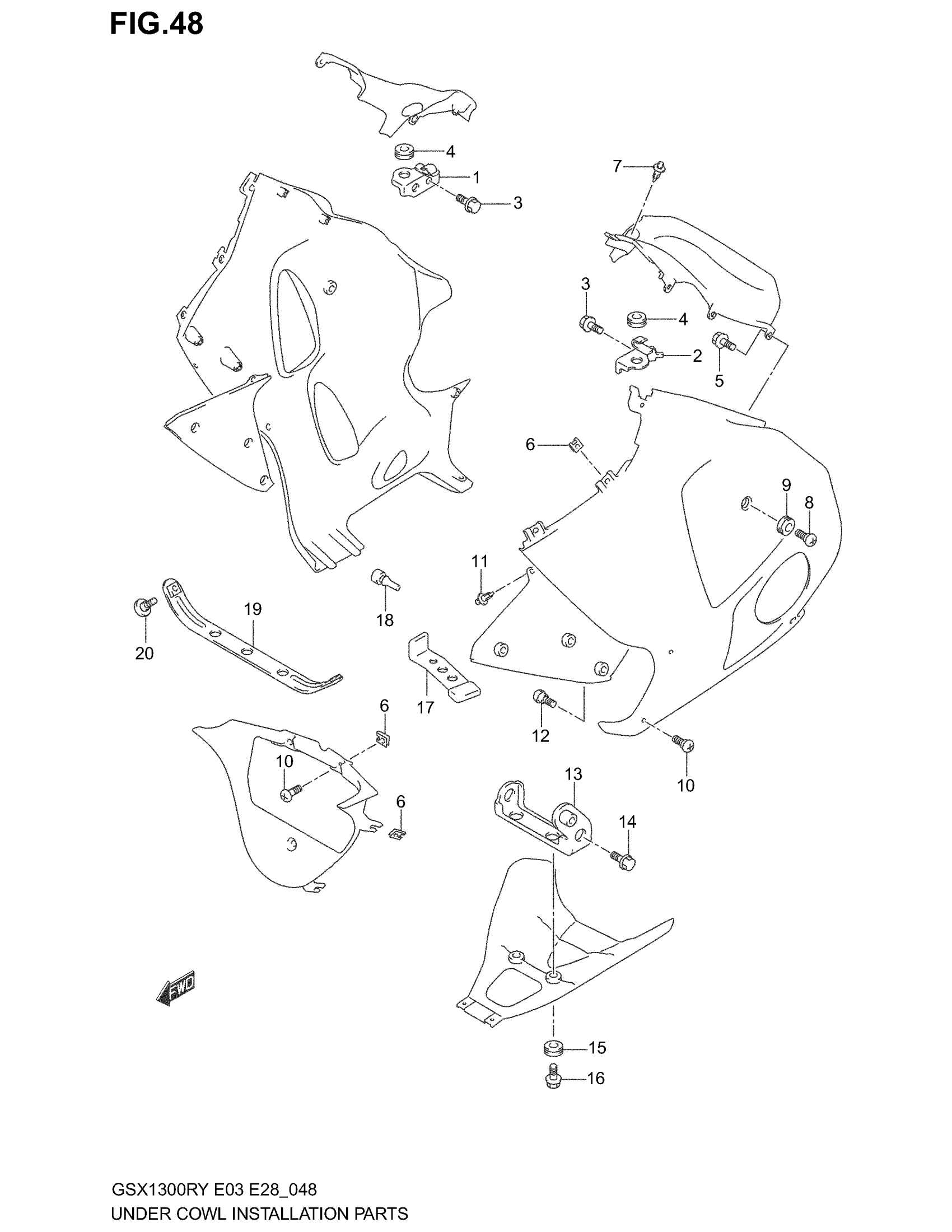

Suzuki GSX1300R (2003) UNDER COWL INSTALLATION PARTS Diagram

#

Description
Price

1

BRACKET, PANEL RH

94520-24F00

$34.73

2

BRACKET, PANEL LH

94530-24F00

$45.52

3

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

4

CUSHION

09320-08018

$2.80

5

SCREW This part replaces 03541-05083.

03541-0508A

$1.41

6

NUT COWL

94484-24F00

$3.63

7

CLIP, SIDE PANEL

09409-07332

$2.50

8

SCREW This part replaces 09139-06087.

09139-06126

$3.65

9

CUSHION

09320-09016

$1.97

10

SCREW, LOWER

09139-05054

$3.82

11

CLIP, INNER PANEL (BLACK)

09409-06314-5PK

$2.80

12

SCREW This part replaces 03541-05123.

03541-0512A

$1.37

13

BRACKET, REAR COWL | MODEL X/Y This part replaces 94540-24F00.

94540-24F01

$30.02

13

BRACKET, REAR COWL | MODEL K1/K2/K3

94540-24F01

$30.02

14

BOLT, PROP SHAFT REAR This part replaces 01550-10203.

01550-1020A

$2.80

15

CUSHION

09320-09016

$1.97

16

SCREW This part replaces 09139-06087.

09139-06126

$3.65

17

BRACKET,UNDER C This part replaces 94550-24F00.

94550-24F01

$11.68

18

CUSHION, RH

09321-05019

$2.60

19

PLATE,UNDER COW | MODEL Y/K1/K2/K3 This part replaces 94561-24F00.

94561-24F01

$11.50

20

SCREW | MODEL Y/K1/K2/K3

09139-05054

$3.82
